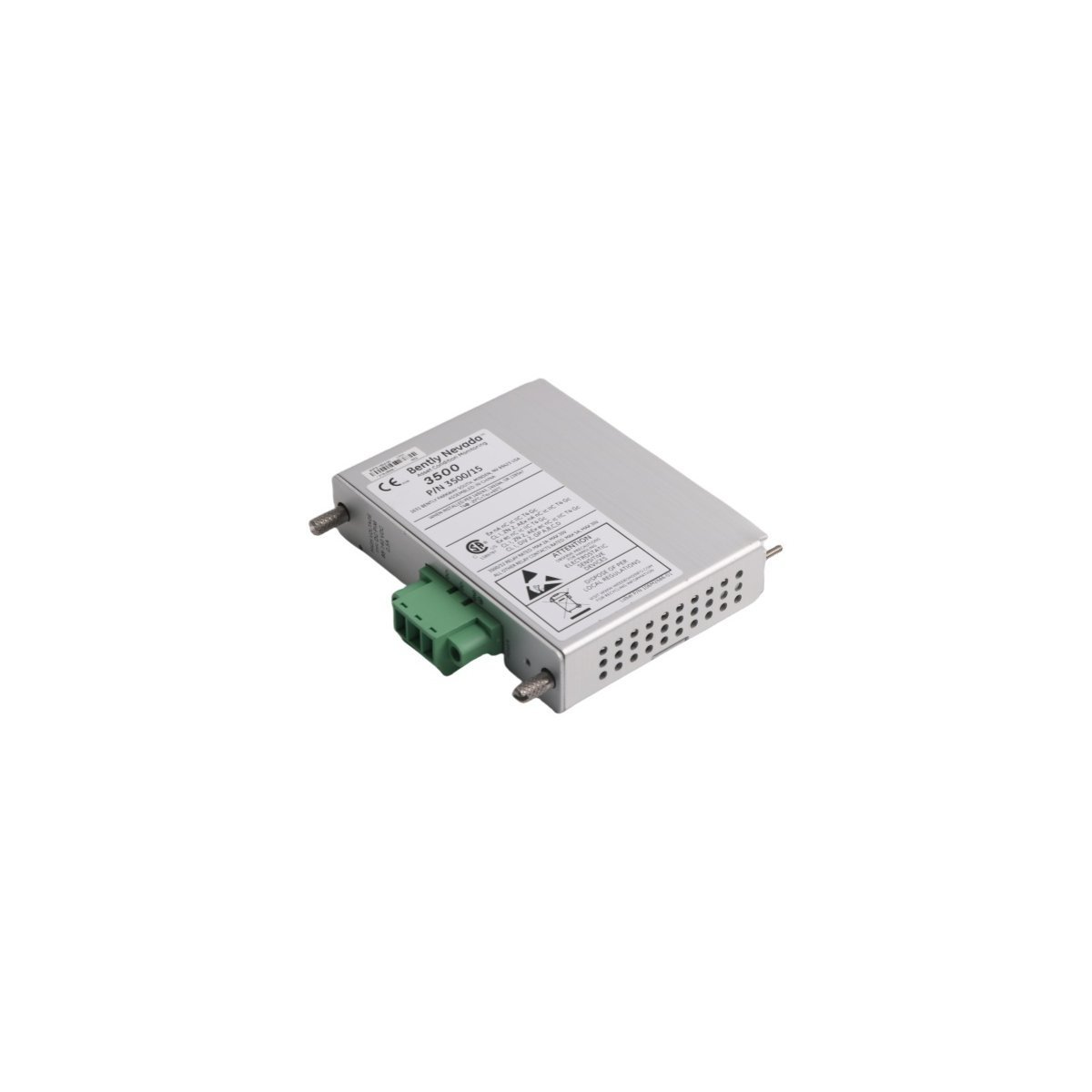

Bently Nevada 106M2686-01 3500 Series Relay I/O Module
The Bently Nevada 106M2686-01 is a specialized relay I/O module for the 3500 Series Monitoring System. It provides reliable, programmable relay outputs to drive machinery shutdown sequences and alarm notifications, ensuring high-integrity protection for critical industrial rotating assets.
Functional Role and System Integration
The Bently Nevada 106M2686-01 functions as a critical interface component within the 3500 Machinery Protection System. This relay module translates software-driven alarm logic into physical contact closures, which subsequently trigger emergency shutdown systems or local annunciators. By utilizing a modular design, the 106M2686-01 allows engineers to configure automated machinery protection strategies that react instantly to vibration, temperature, or speed setpoint violations. Furthermore, this module ensures that critical safety actions occur independently of the main controller if the primary communication bus remains active, thereby enhancing the overall functional safety of the plant.
Key Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number: 106M2686-01
- System Compatibility: 3500 Series Monitoring System
- Module Type: Relay Output / Input-Output (I/O) Module
- Relay Logic: Programmable via 3500 Rack Configuration Software
- Net Weight: 0.32 kg
- Dimensions: 2.5 cm x 12 cm x 12 cm
- Country of Origin: United States
- Industrial Classification: HS Code 8537101190
Performance Characteristics and Reliability
Engineers specifically developed the 106M2686-01 to endure the rigorous electromagnetic interference and temperature fluctuations common in power generation and oil and gas environments. Because the module supports both AC and DC switching capabilities, it provides versatile integration options for various control circuit voltages. Additionally, the unit features comprehensive diagnostic LEDs on the front panel, which allow maintenance personnel to verify relay status and circuit integrity at a glance. This proactive monitoring capability significantly reduces troubleshooting time during routine inspections or unexpected system trips.
Industrial Applications
The 106M2686-01 plays a vital role in Turbomachinery Instrumentation (TSI) by managing the voting logic required for high-availability protection. Consequently, facilities deploy this module to protect high-value assets such as gas turbines, large scale pumps, and steam driven compressors. Since the module integrates seamlessly with existing 3500 racks, users can easily scale their protection hardware as plant requirements evolve. Ultimately, incorporating this relay module into your asset strategy ensures compliance with international safety standards while providing a robust physical layer for machine interlocks.
