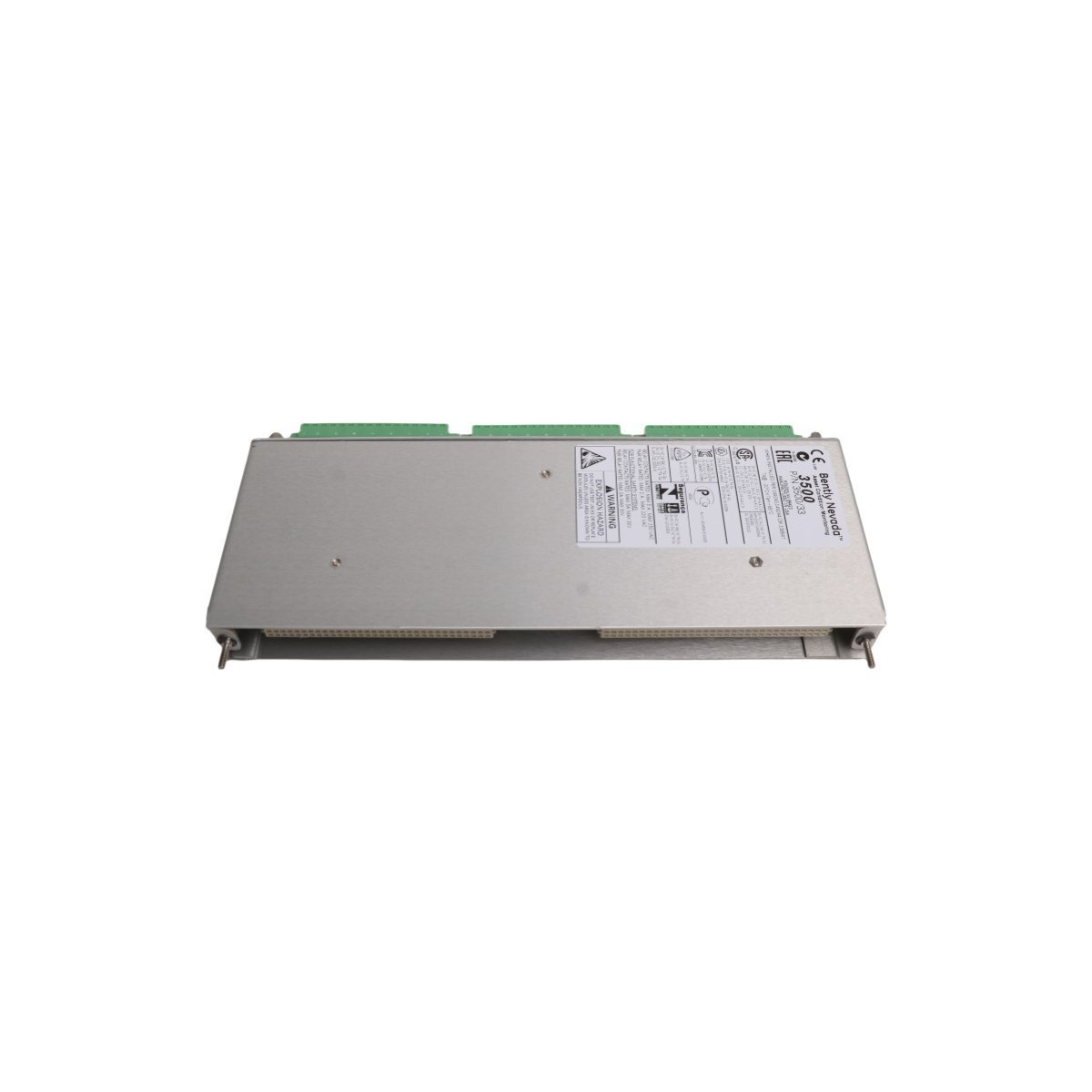

Bently Nevada 3500/33-03-00 149992-03 16-Channel Relay Output Module

Automated Machinery Protection and Alarm Logic

The Bently Nevada 3500/33-03-00 drives critical safety protocols by translating monitor alarms into physical machine-trip actions. This 16-channel relay module executes complex “Voting Logic” to safeguard high-value rotating assets from catastrophic mechanical failure. When the 3500 Monitoring System detects vibration or temperature levels exceeding safety thresholds, this module triggers emergency stop strings, annunciators, or control system interlocks. By providing sixteen independent relay outputs, the system ensures comprehensive coverage for large-scale industrial plants where multiple alarm conditions must initiate specific, localized safety responses.

Critical Technical Specifications

• Brand: Bently Nevada
• Main Module: 3500/33 16-Channel Relay Module
• I/O Part Number: 149992-03 (Spare Low Current Relay I/O)
• Contact Type: 16 independent Single-Pole, Double-Throw (SPDT) relays
• Relay Material: Gold-plated contacts for low-current, high-reliability switching
• Termination Style: Integrated screw terminals (Internal Terminations)
• Maximum Rating: 5A @ 30 Vdc or 5A @ 125 Vac (Resistive)
• Environmental Tolerance: -30°C to +65°C (-22°F to +150°F) operating range
• Logic Configuration: Supports “AND/OR” voting via 3500 Configuration Software
• Status Monitoring: Individual channel LEDs and “Rack OK” relay included

Operational Reliability and Asset Safety

The 149992-03 I/O module maximizes system uptime by utilizing gold-plated contacts that prevent oxidation and contact fouling. This high-integrity design is vital for safety circuits that remain dormant for long periods but must function instantly during an emergency. The 3500/33 system empowers maintenance teams to implement “Fail-Safe” configurations, where a loss of power automatically initiates a machine trip. Furthermore, the module includes a dedicated “Rack OK Relay” that monitors the health of the entire 3500 rack, alerting operators to internal power supply issues or processor faults before they compromise machinery protection.

Installation and Field Integration

Maintenance technicians install the 149992-03 I/O module in the rear of the 3500 chassis, directly behind the main relay processor card. The internal termination design streamlines cabinet architecture by allowing field wiring to land directly on the module’s high-density screw terminals, eliminating the need for external terminal blocks. Because the module is hot-swappable, technicians can replace spare components without interrupting the monitoring functions of other healthy channels. This flexibility ensures continuous oversight of critical assets such as:

• Steam and Gas Turbine emergency trip systems
• Multi-stage centrifugal compressor safety interlocks
• Large-scale induction motor protection circuits
• Plant-wide emergency notification and beacon systems
