Sale!
SKU: 330102-00-36-05-02-05

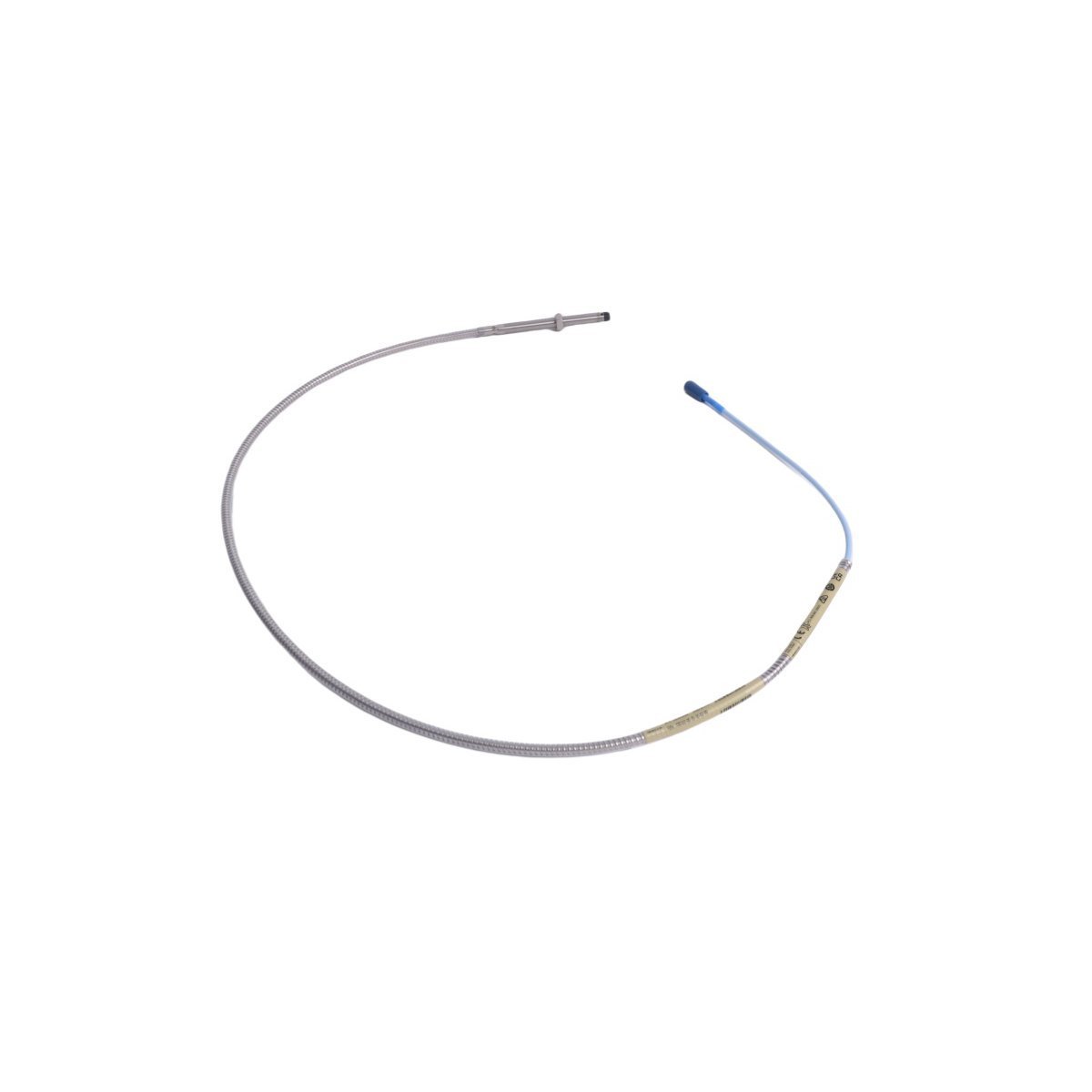

Bently Nevada 330102-00-36-05-02-05 3300 XL 8mm Proximity Probe
The Bently Nevada 330102-00-36-05-02-05 is an 8mm 3300 XL proximity probe designed for accurate vibration and axial position monitoring in industrial rotating equipment.
Technical Overview
The Bently Nevada 330102-00-36-05-02-05 serves as a high-performance 8mm proximity transducer, specifically engineered for monitoring radial vibration and axial position in rotating machinery. By utilizing eddy current sensing technology, this probe detects gap variations between the sensor tip and the target shaft without physical contact. Consequently, operators can track machine health continuously and identify potential faults before they escalate into significant mechanical failures.
Key Technical Specifications
| Feature | Specification |
| Model Number | 330102-00-36-05-02-05 |
| Probe Diameter | 8 mm |
| Case Thread | 3/8-24 UNF |
| Cable Length | 0.5 meters (integral) |
| Case Length | 36 mm |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Connector | Gold-plated ClickLoc coaxial |
| Operating Temperature | -51°C to +177°C |
Enhanced Durability and Reliability
Bently Nevada constructs this transducer using proprietary TipLoc and CableLoc technologies to ensure maximum resilience. The TipLoc process creates an exceptionally strong bond between the sensing tip and the housing, which significantly reduces the risk of sensor detachment. Furthermore, the internal CableLoc design supports a pull strength of up to 330 N. As a result, the probe maintains signal integrity even in environments subject to severe mechanical stress or high-frequency vibration.
System Integration and Compatibility
Engineers integrate this sensor seamlessly into existing 3300 XL monitoring architectures. Because the system design ensures full backward compatibility with non-XL 3300 series transducers, maintenance teams can replace older units without requiring a complete recalibration of the monitoring loop. Additionally, the inclusion of a ClickLoc connector simplifies field installation; technicians can secure the cable safely without the need for specialized torque tools. Finally, this probe satisfies rigorous international safety standards, including CSA and ATEX, which enables its use in hazardous industrial atmospheres where safety and performance are absolute requirements.
