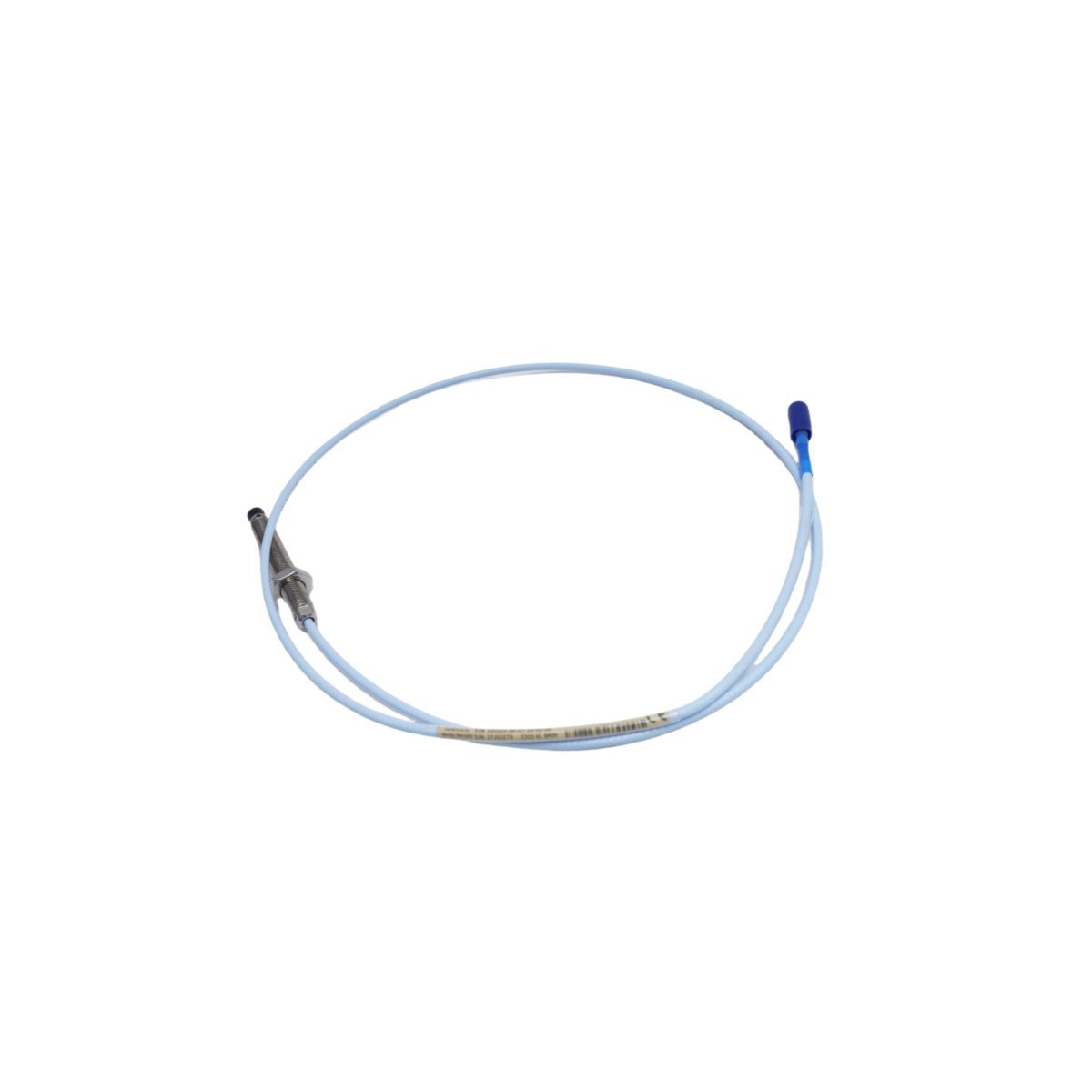

The Bently Nevada 330103-00-07-10-02-00 is a 3300 XL 8mm proximity probe with 3/8-24 threads and a 1.0m armored cable. It provides high-precision vibration and position data for critical turbines and compressors in demanding industrial environments.
The Bently Nevada 330103-00-07-10-02-00 serves as a high-performance transducer for industrial asset protection. This 8mm probe utilizes eddy current technology for non-contact distance measurements. It accurately tracks radial vibration and axial thrust position on rotating shafts. Consequently, the sensor identifies mechanical shaft issues before they cause significant damage. Reliable data streaming allows for precise machinery health assessments. Therefore, maintenance teams can implement effective predictive maintenance schedules.
The model code 330103-00-07-10-02-00 identifies a unique set of mechanical specifications. The -00- option designates a standard 3/8-24 UNF threaded probe body. Additionally, the -07- suffix specifies a 0.7-inch unthreaded length for precise gap adjustments. The -10- segment provides a 1.0-meter integrated cable for system linking. This unit also features the -02- armored option for maximum physical protection. A flexible stainless steel conduit shields the internal cable from harsh debris.
Demanding process environments expose sensors to extreme heat and corrosive chemicals. Therefore, Bently Nevada utilizes polyphenylene sulfide (PPS) for the probe tip construction. This advanced material resists oil, water, and acidic industrial solvents effectively. The probe functions reliably within a broad temperature spectrum. Moreover, the stainless steel body prevents oxidation in high-humidity zones. The gold-plated connectors ensure a moisture-proof and low-noise electrical connection. These features guarantee long-term stability in the most rigorous industrial settings.
Refineries and power plants deploy this probe on critical rotating equipment. It is ideal for monitoring steam turbines and high-speed centrifugal compressors. Furthermore, the compact design fits perfectly into standard bearing housings. This allows for superior protection of high-value industrial pumps. The probe integrates seamlessly with Bently Nevada 3500 series monitoring racks. Accurate monitoring leads to optimized performance and extended asset life. Reliability remains a primary benefit for modern manufacturing ecosystems.
The 330103 series complies with international standards for hazardous area safety. Each probe undergoes strict quality testing for measurement linearity and repeatability. Additionally, the armored conduit simplifies installation in complex mechanical environments. The ClickLoc connector provides a secure link without requiring specialized tools. This design reduces field maintenance time and improves overall system uptime. Consistent data collection ensures the safety of personnel and plant infrastructure.
| Feature | Detailed Specification |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Unthreaded Length | 0.7 inches |
| Total Cable Length | 1.0 Meter (3.3 feet) |
| Cable Armor | Stainless Steel Flexible Conduit |
| Connector Type | Gold-plated ClickLoc Coaxial |
