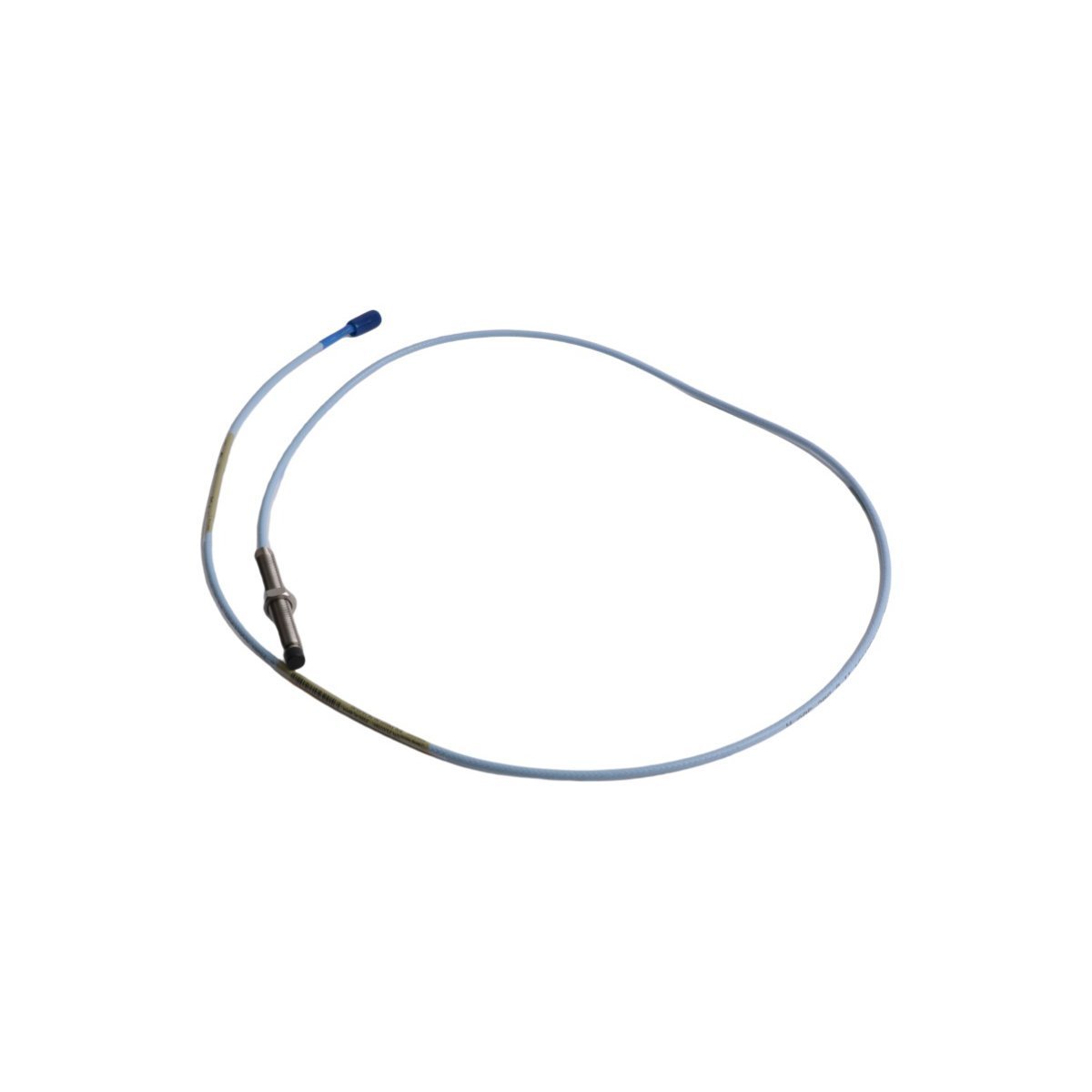

The Bently Nevada 330101-00-61-20-02-05 is a 3300 XL 8 mm proximity probe featuring a 3/8-24 UNF thread, 6.1-inch case, and 2.0-meter cable. Designed for high-temperature ETR applications, it provides precise non-contacting vibration sensing for critical rotating machinery.
The Bently Nevada 330101-00-61-20-02-05 is a high-precision 3300 XL 8 mm proximity probe designed for non-contacting vibration and displacement measurements. This transducer system operates on the eddy current principle, which allows for the accurate monitoring of rotating shaft behavior in critical industrial machinery. Because it belongs to the 3300 XL series, it offers a standardized linear range of 2.0 mm (80 mils) and provides a highly stable signal output even in harsh operating environments. Moreover, this specific configuration is engineered to interface seamlessly with 3300 XL Proximitor Sensors to ensure comprehensive machine protection.
One of the primary advantages of the 330101-00-61-20-02-05 model is its complete compatibility with Extended Temperature Range (ETR) environments. While standard probes often struggle under extreme heat, this ETR-compatible probe maintains structural and electrical integrity at temperatures reaching up to 218°C (425°F). Consequently, it is an ideal solution for monitoring turbines, compressors, and motors where ambient heat is a constant factor. Furthermore, the probe features the patented ClickLoc miniature coaxial connector, which provides a secure, vibration-resistant connection that prevents signal loss due to mechanical loosening.
This probe features a 3/8-24 UNF threaded body, which facilitates straightforward installation into standard mounting brackets or machine housings. The 6.1-inch case length allows for deep penetration into machinery casings to reach the target shaft. Additionally, the assembly includes a 2.0-meter integrated cable. Although this version does not include stainless steel armor, its robust construction ensures durability against typical industrial fluid exposure. To ensure global compliance, the unit carries multiple hazardous area certifications, including ATEX, IECEx, and CSA approvals, making it suitable for use in explosive atmospheres.
Engineers typically deploy the 330101-00-61-20-02-05 within Turbine Supervisory Instrumentation (TSI) suites. Therefore, it plays a critical role in measuring radial vibration, axial thrust position, and eccentricity in high-speed rotating equipment. By providing real-time data to monitoring systems like the Bently Nevada 3500 series, this probe helps operators prevent catastrophic mechanical failures and optimize maintenance schedules. Since the system is rated as 100% Brand New original equipment, it guarantees full adherence to the original manufacturer’s performance curves and calibration standards.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21504-00-32-10-02 |
| Product Type | 3300 NSv Proximity Vibration Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Unthreaded Length | 0 mm |
| Case Length | 320 mm (12.6 in) |
| Total Length | 1.0 metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| System Linear Range | 2 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor |
In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.
Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.
Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.
The Bently Nevada 330102-00-60-10-01-05 is an 8 mm reverse-mount eddy current proximity probe designed for non-contact measurement of vibration and displacement. It functions as a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes an extension cable and a Proximitor Sensor. The probe operates by having the Proximitor Sensor generate a high-frequency radio frequency (RF) signal, which is transmitted through the extension cable and radiated from the probe's tip into a small electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's amplitude. This change is directly proportional to the gap between the probe tip and the target surface. The Proximitor Sensor demodulates this signal, converting it into a DC voltage that accurately represents the physical distance. This conditioned voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500, for real-time analysis of radial vibration, axial position, and shaft speed.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330102-00-60-10-01-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Total Length | 1.0 meter (3.3 feet) |
| Case Length | 6.0 inches (152 mm) |
| Mounting Option | Reverse Mount |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Agency Approvals | Multiple Approvals: CSA (Class I, Div 1/2), ATEX/IECEx (Zone 0/1) |
In Oil & Gas and Power Generation applications, the 330102-00-60-10-01-05 probe demonstrates high reliability in demanding operational environments. Its construction with a PPS tip and stainless steel case allows for continuous operation in temperatures ranging from -34 °C to +177 °C (-29 °F to +350 °F). The gold-plated ClickLoc connector provides a secure, corrosion-resistant connection that prevents signal degradation from fluid ingress or vibration-induced intermittence. When paired with a 3300 XL Proximitor Sensor, the system provides a linear measurement range of 2.0 mm (80 mils) with a scale factor of 7.87 V/mm (200 mV/mil), ensuring precise data for machine diagnostics. The system is designed for high immunity to radio frequency interference (RFI), minimizing signal corruption in electrically noisy industrial environments. The probe's physical durability and signal integrity are critical for monitoring high-speed turbomachinery, where accurate measurement of shaft dynamics is essential for preventing catastrophic failure.
Q: What systems is the 330102-00-60-10-01-05 compatible with?
A: The 330102-00-60-10-01-05 probe is a component of the 3300 XL 8 mm Transducer System. For proper operation, it must be used with a 3300 XL extension cable and a 3300 XL Proximitor Sensor (e.g., part number 330180). This complete transducer system is fully compatible with Bently Nevada monitoring systems, including the 3500 Series Machinery Protection System and ADRE Sxp/408 DSPi data acquisition systems. It is not electrically or mechanically compatible with components from other transducer series, such as the 7200 or 3000 series.
Q: What are the installation requirements?
A: As a reverse-mount probe, the 330102-00-60-10-01-05 is installed from inside the machine housing, with the probe body extending outward. A clearance hole must be drilled through the machine case to accommodate the 8 mm probe tip. The target area on the observed shaft must be smooth, free of surface defects, and have a minimum diameter of 10.7 mm (0.42 in) to ensure measurement accuracy. The probe's gap should be set to the center of its linear range, typically corresponding to -10.0 Vdc. The ClickLoc connector must be tightened to the specified torque to ensure a secure, environmentally sealed connection. Cable routing must avoid areas of extreme heat, physical abrasion, and proximity to high-voltage power lines to maintain signal integrity.
