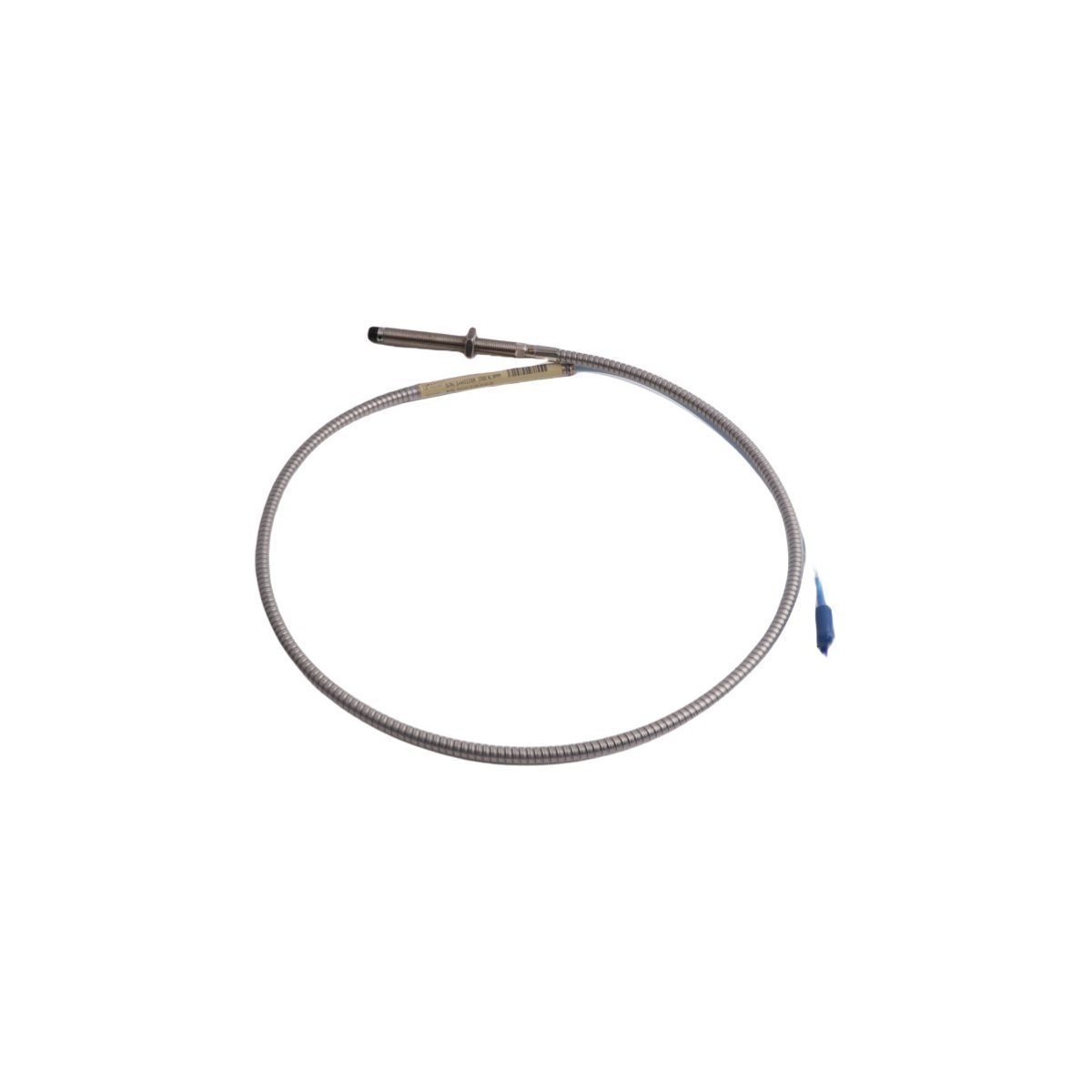

The Bently Nevada 330104-00-08-10-02-00 is a 3300 XL 8mm proximity probe with an 80mm case and 1.0m armored cable. It provides high-accuracy vibration and position data for critical turbines, compressors, and pumps in harsh industrial environments.
The Bently Nevada 330104-00-08-10-02-00 serves as a primary sensor for rotating machinery protection. This 8mm proximity probe measures static and dynamic distances between the sensor tip and target. It utilizes advanced eddy current technology to track shaft vibration and axial position. Furthermore, the system delivers high-precision data to prevent unexpected mechanical breakdowns. Plant operators rely on this sensor to monitor rotor stability in real time. Consequently, this hardware forms the foundation of modern predictive maintenance programs.
The part number 330104-00-08-10-02-00 represents a specific physical build for industrial installation. The -00- option indicates a fully threaded 3/8-24 UNF probe body. Additionally, the -08- suffix specifies an 80mm overall case length for deep-set mounting. The -10- segment confirms a 1.0-meter integrated cable length for system linking. This model also includes the -02- armored option for superior durability. A stainless steel flexible conduit protects the cable from sharp edges and crushing.
Industrial environments subject sensing hardware to extreme heat and corrosive chemicals. Therefore, Bently Nevada uses high-performance polyphenylene sulfide (PPS) for the probe tip. This material resists degradation from moisture and industrial solvents effectively. The probe functions reliably in temperatures up to 177°C. Moreover, the stainless steel body prevents rust in high-humidity zones. The gold-plated connectors ensure signal purity by resisting oxidation over time. These robust features guarantee long-term stability in the most demanding plants.
Refineries and power generation facilities deploy this sensor on high-speed assets. It is a standard choice for monitoring steam turbines and centrifugal compressors. Furthermore, the sensor tracks radial vibration in large industrial pumps. The 1.0-meter cable connects easily to 3300 XL Proximitor sensors. This setup ensures a linear output for precise gap measurements. Maintenance teams value the probe for its repeatable and accurate performance. Using genuine parts protects high-value assets from catastrophic damage.
The 330104 series integrates seamlessly with Bently Nevada 3500 series monitoring racks. Each probe meets stringent international standards for hazardous area safety. Additionally, the armored conduit simplifies routing through complex machine housings. The ClickLoc connector provides a secure and vibration-proof electrical link. This design reduces the need for specialized tools during field maintenance. This reliability ensures consistent machinery oversight and improved operational safety.
| Parameter | Specification Detail |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Case Length | 80 mm |
| Total Cable Length | 1.0 Meter (3.3 feet) |
| Protective Jacket | Stainless Steel Armor |
| Connector Type | Gold-plated ClickLoc Coaxial |
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330703-00-100-10-11-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 4.0 mm (160 mils) |
| Scale Factor | 2.00 mV/µm (50 mV/mil) ± 6.5% |
| Total Length | 1.0 metre |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Connector Type | Miniature coaxial ClickLocâ„¢ connector, gold-plated |
| Agency Approval | CN Ex (China Ex) for hazardous area installations |
The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.
Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.
Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.
