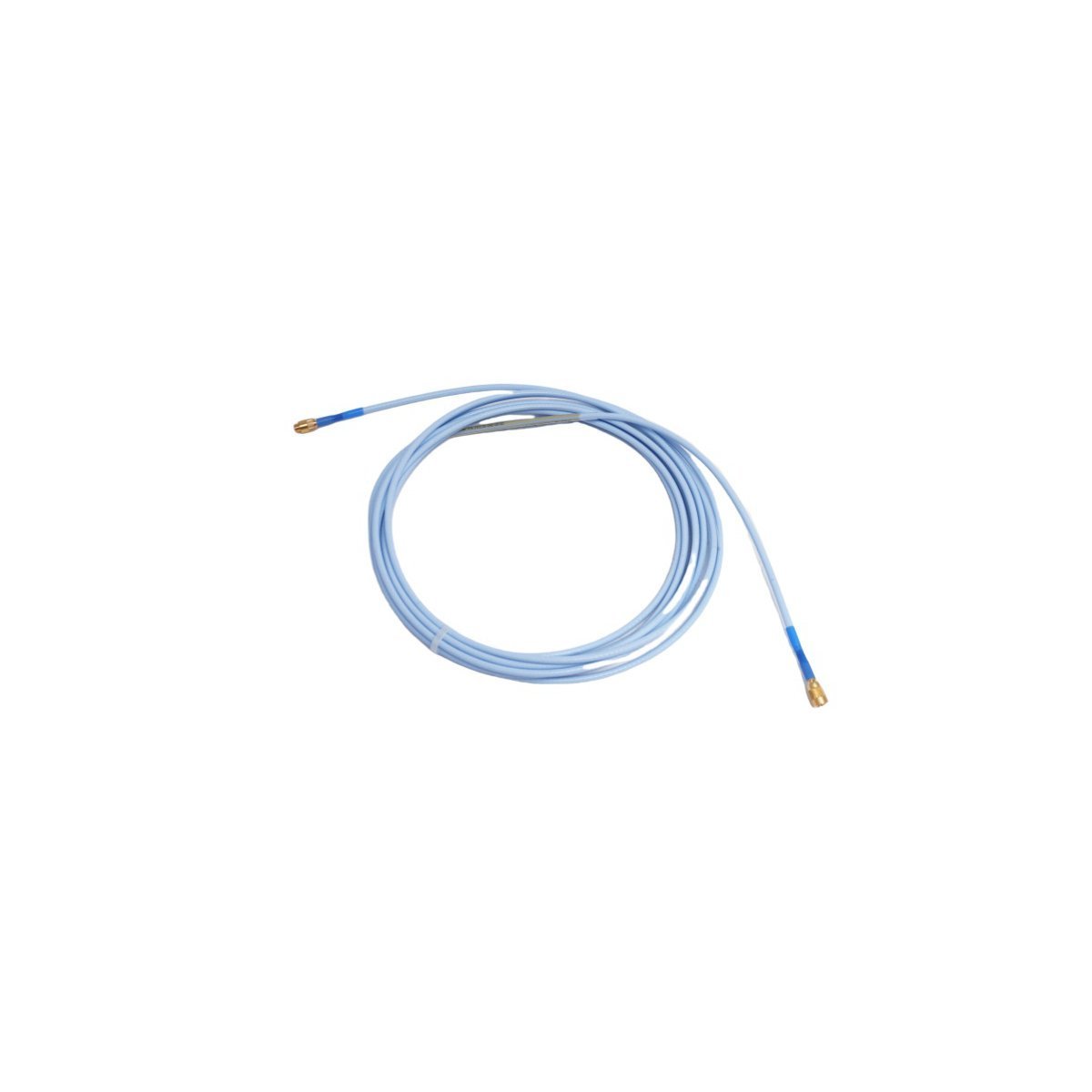

Bently Nevada 330130-040-00-00 3300 XL Standard Extension Cable

High-Fidelity Signal Transmission and System Connectivity

The Bently Nevada 330130-040-00-00 drives superior signal integrity between proximity probes and Proximitor sensors. This 3300 XL series extension cable carries high-frequency eddy current signals essential for precise vibration monitoring and axial position measurements. By utilizing low-loss coaxial construction, the cable prevents electromagnetic interference (EMI) from compromising critical machinery data. This reliability ensures that the 3500 Monitoring System receives accurate, real-time information for automated machinery protection and early fault detection in high-speed rotating assets.

Critical Technical Specifications

• Brand: Bently Nevada
• Model Number: 330130-040-00-00
• Product Series: 3300 XL 8mm Proximity Transducer System
• Cable Length: 4.0 meters
• Mechanical Protection: Standard Coaxial Cable without Armor
• Agency Approval: No hazardous area approvals (00 option)
• Jacket Material: Fluorinated Ethylene Propylene (FEP)
• Operating Temperature: -52°C to +177°C (-62°F to +350°F)
• Connector Type: Gold-plated Miniature Coaxial ClickLoc connectors
• System Length: Combines with a 1.0m probe for a 5.0m total electrical system

Operational Reliability and Environmental Resilience

The 330130-040-00-00 maximizes machinery uptime by maintaining electrical stability in extreme industrial environments. The FEP jacket resists chemical corrosion and moisture ingress, shielding the signal path from lubricating oils and process fluids. Furthermore, the 3300 XL design incorporates advanced shielding that eliminates the need for external conduit in controlled environments, simplifying installation paths. This streamlined connectivity is vital for the continuous oversight of:

• Radial vibration monitoring in steam and gas turbines
• Axial thrust position tracking in centrifugal compressors
• Speed sensing and Keyphasor phase reference applications
• Shaft eccentricity diagnostics in large-scale induction motors

Installation and Field Configuration

Maintenance technicians utilize the 330130-040-00-00 to complete a standard 5.0-meter measurement loop. The “ClickLoc” connectors feature a positive-lock mechanism that prevents accidental disconnection due to high-frequency machinery vibration. To ensure peak measurement accuracy and a calibrated scale factor of 7.87 V/mm (200 mV/mil), the user must verify that the total system length (Probe + Extension Cable) matches the specific calibration of the 3300 XL Proximitor sensor. This robust electrical connection guarantees that the 3500 rack receives a clean, noise-free data stream for sophisticated rotor dynamics analysis and automated machinery protection.
