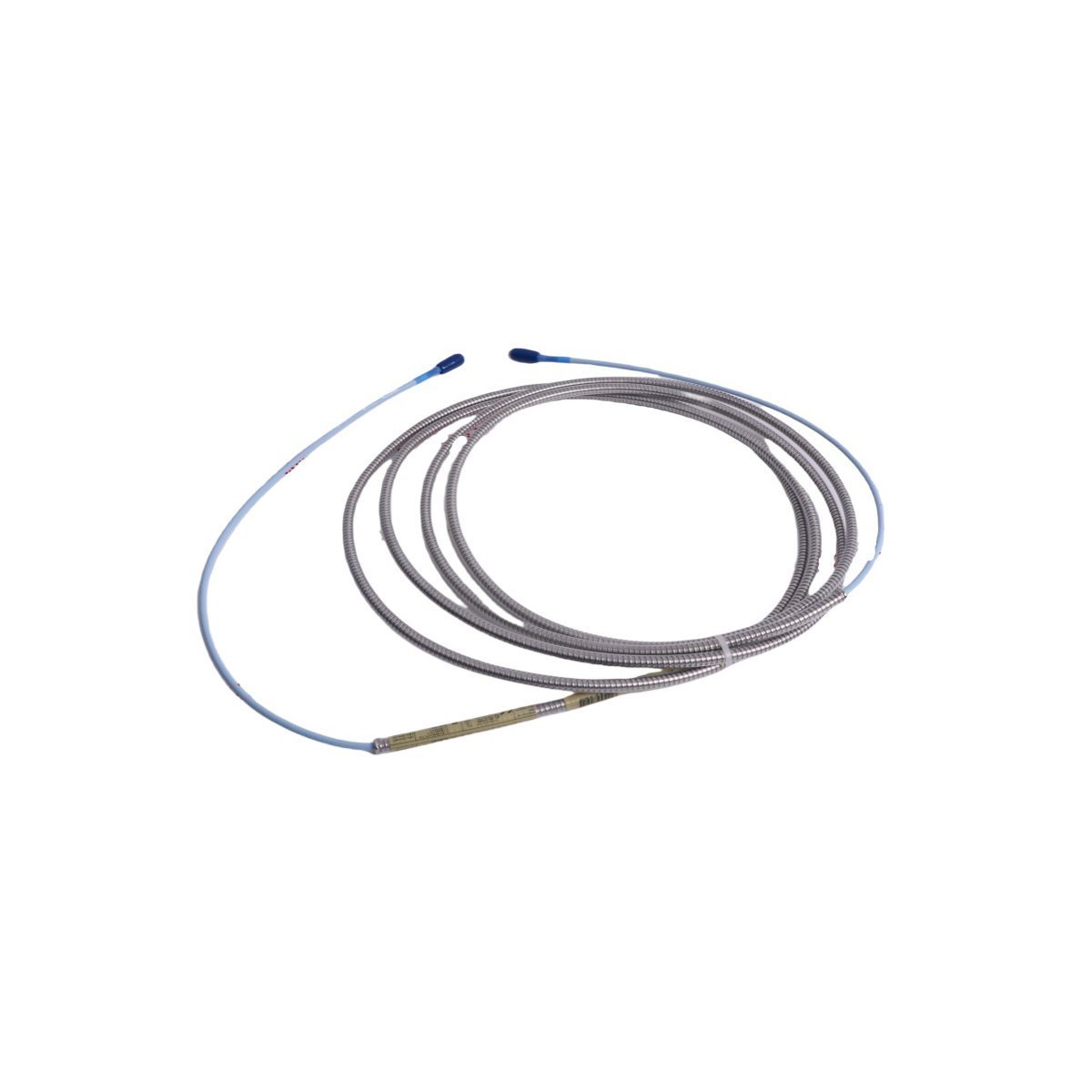

The Bently Nevada 330130-040-01-05 is a 4-meter 3300 XL standard extension cable. It provides high-integrity signal transmission for proximity probe vibration monitoring systems.
The Bently Nevada 330130-040-01-05 functions as a critical link in machinery protection systems. This 3300 XL extension cable connects proximity probes to Proximitor sensors. It ensures the accurate transmission of displacement and vibration signals. Because it maintains high signal fidelity, the system tracks shaft behavior precisely. This cable is vital for monitoring turbines, compressors, and motors. It helps prevent mechanical damage through constant asset health surveillance.
| Feature | Detailed Specification |
| Manufacturer | Bently Nevada |
| Model Number | 330130-040-01-05 |
| Cable Type | 3300 XL Standard Extension |
| Cable Length | 4.0 Meters (13.1 Feet) |
| Connector Protector | Included (01 Option) |
| Agency Approval | Multi-certification (05 Option) |
| Net Weight | 0.38 kg |
| Dimensions | 33 x 28 x 2 cm |
This 3300 XL cable features a specialized design to minimize signal loss. It fully adheres to the API 670 standard for industrial transducers. Furthermore, the cable supports complete interchangeability with other 3300 XL components. This eliminates the need for manual bench calibration during replacement. The 330130-040-01-05 also provides backward compatibility with older 3300 series hardware. Consequently, it serves as a versatile solution for both new and legacy installations.
Bently Nevada builds this cable to endure extreme plant environments. The durable jacket resists common industrial fluids and chemical exposure. Additionally, the patented ClickLoc connectors prevent accidental disconnections from high-frequency vibration. Gold-plated contacts ensure a low-resistance path for sensitive electrical signals. The 01 option includes a connector protector for added environmental sealing. This prevents moisture or oil ingress from degrading the signal over time.
The plug-and-play architecture significantly simplifies field installation tasks. Technicians can replace cables quickly to minimize equipment downtime. Moreover, the flexible cable radius allows for easy routing through tight conduits. The 330130-040-01-05 maintains stable performance across a wide temperature spectrum. This reliability makes it a standard choice for power and petrochemical sectors. Using original Bently Nevada cables ensures the highest level of asset protection.
The Bently Nevada 31000-16-10-15-030-03-02 is a specialized proximity probe housing designed to physically protect a proximity probe and its integral cable within harsh industrial environments. Its primary function is to provide a secure, environmentally sealed mounting point on rotating machinery for acquiring critical vibration and position data. The housing is constructed from 304 Stainless Steel, offering robust protection against physical impact and corrosion. This specific configuration, 31000-16-10-15-030-03-02, features a 3/4-14 NPT external mounting thread for direct installation into a machine case. Internally, it accommodates a Bently Nevada 3300 XL 8 mm or 3300 5 mm probe, which is positioned by a 1.0-inch stinger (probe sleeve). The housing facilitates the signal path from the probe tip to the Bently Nevada 3500 Monitoring System. The probe, connected via an extension cable to a Proximitor Sensor, generates a high-frequency RF signal. The resulting eddy current field is used to measure the distance to the observed conductive target. The Proximitor Sensor conditions this signal into a calibrated DC voltage proportional to the gap, which is then transmitted to a 3500/42M Proximitor/Seismic Monitor module for analysis, alarming, and machinery protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 31000-16-10-15-030-03-02 |
| Product Type | 31000 Proximity Probe Housing |
| Condition | Brand New |
| Warranty | 12 Months |
| Housing Material | 304 Stainless Steel |
| Mounting Thread | 3/4-14 NPT |
| Stinger (Probe Sleeve) Length | 1.0 inch (25.4 mm) |
| Probe Compatibility | Bently Nevada 3300 XL 8 mm and 3300 5 mm Proximity Probes |
| Environmental Sealing | Viton O-ring cable seal included |
| Operating Temperature Range | -34 °C to +177 °C (-30 °F to +350 °F) |
| Hazardous Area Suitability | Suitable for Class I, Div 2 / Zone 2 locations when installed per Bently Nevada control drawings and with appropriately certified system components. |
In Oil & Gas applications, the 31000-16-10-15-030-03-02 housing provides essential protection for transducers monitoring centrifugal and reciprocating compressors, pumps, and gearboxes. Its 304 Stainless Steel construction and Viton seals ensure long-term integrity in environments containing corrosive elements such as H2S and hydrocarbons, a critical requirement for meeting API 670 standards for machinery protection systems. In Power Generation, this housing is extensively used on steam and gas turbines, exciters, and boiler feed pumps. It maintains measurement accuracy and reliability under conditions of high temperature and vibration, which is fundamental for monitoring shaft radial vibration, axial thrust position, and differential expansion. The passive mechanical design results in a high Mean Time Between Failures (MTBF), contributing to overall plant availability. When properly installed, the housing assembly provides an environmental rating equivalent to NEMA 4X and IP65, preventing ingress of dust, moisture, and process contaminants that could otherwise compromise signal integrity
