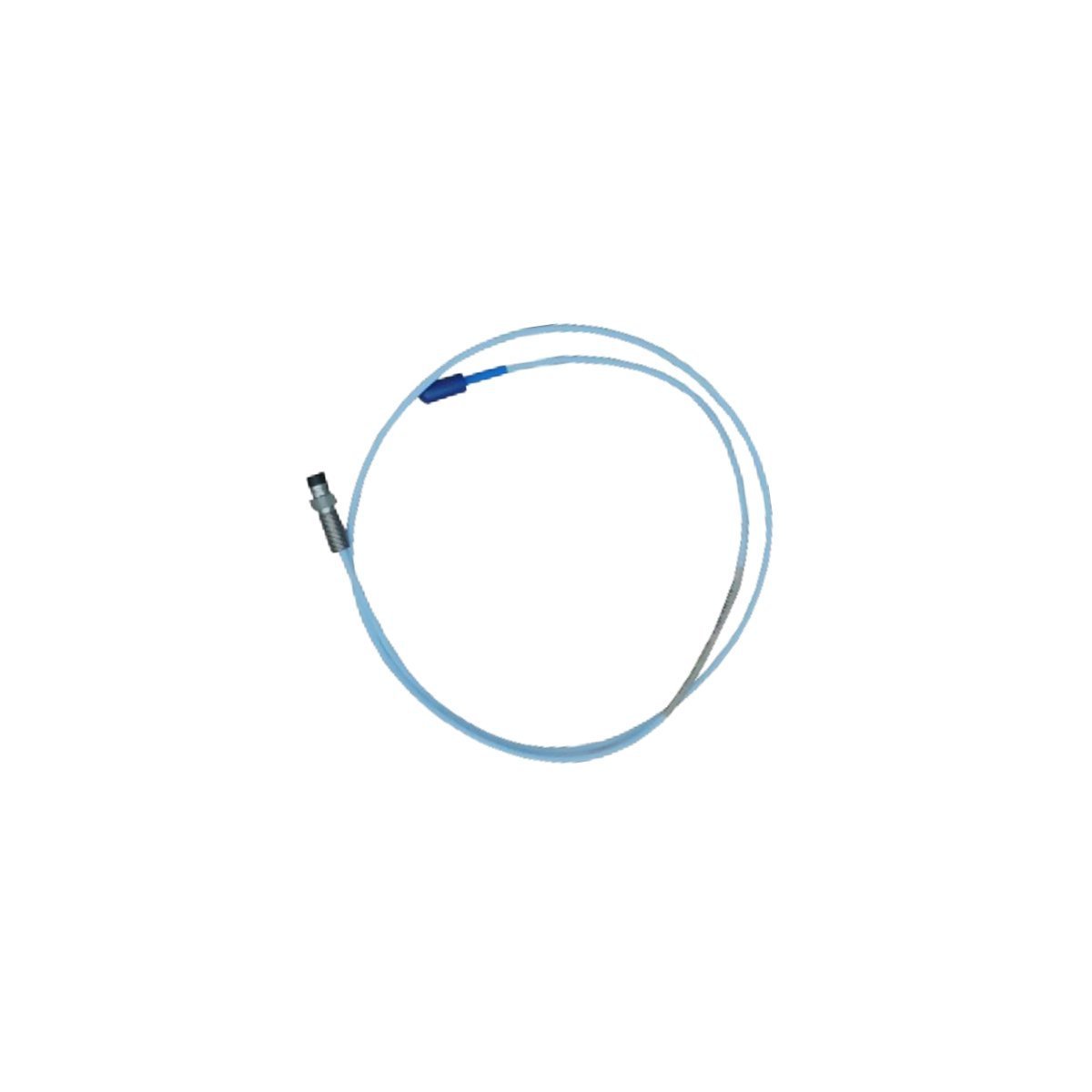

The Bently Nevada 330171-00-12-10-01-CN is a 3300 XL 8mm Proximity Probe featuring a 3/8-24 UNF thread and a 1.0m cable. Certified for Chinese market standards (CN), it provides high-precision 2.0mm linear range sensing for vibration and position monitoring of critical rotating machinery.
The Bently Nevada 330171-00-12-10-01-CN functions as a high-precision eddy current sensor within the 3300 XL 8mm Proximity Transducer System. This probe is designed to measure the static and dynamic distance between the probe tip and a target, such as a rotating shaft. Because it belongs to the 3300 XL family, it offers a linear range of 2.0 mm (80 mils) and provides a highly stable voltage output when paired with a 3300 XL Proximitor Sensor. The “CN” designation indicates that the module is specifically certified for use in the Chinese market, adhering to localized hazardous area standards.
Furthermore, the probe features a 3/8-24 UNF thread housing, making it a standard choice for industrial machinery monitoring. It utilizes a PPS (polyphenylene sulfide) tip that is resistant to high temperatures and corrosive lubricants. Since the probe converts mechanical displacement into an electrical signal, it allows the Bently Nevada 3500 Monitoring System to perform real-time vibration analysis and axial position tracking. Its robust mechanical design ensures that critical machinery—such as steam turbines, centrifugal compressors, and large motors—remains protected against catastrophic mechanical failure.
Reliability engineers and vibration technicians utilize the 330171-00-12-10-01-CN across various heavy industrial sectors. Specifically, the probe is essential for:
The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330192-00-28-05-00 |
| Product Type | 3300 XL 8 mm ETR Proximity Probes |
| Condition | Brand New |
| Warranty | 12 Months |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Probe Tip Temperature Range | -34 °C to +260 °C (-30 °F to +500 °F) |
| Total Length | 0.5 meters (1.6 feet) |
| Case Length | 2.8 inches (71.1 mm) |
| Connector Type | Miniature coaxial ClickLoc connector, gold-plated |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.
Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a
The Bently Nevada 330104-00-14-10-11-00 Proximity Probes is a genuine industrial component.
| Condition | New |
