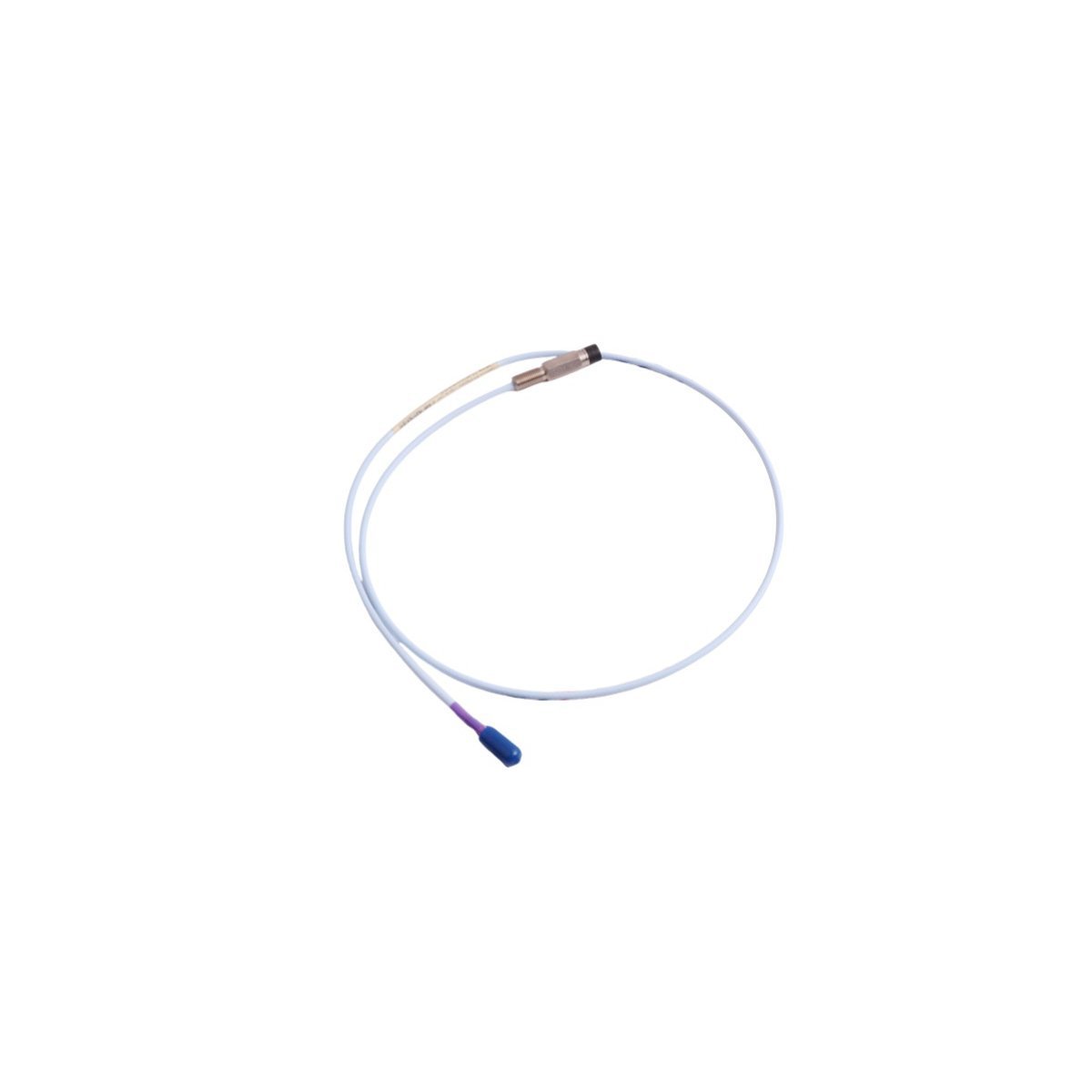

Bently Nevada 330705-02-18-10-02-00 Reverse Mount Probe

The Bently Nevada 330705-02-18-10-02-00 is an 8mm 3300 XL reverse mount probe. It offers non-contact vibration and position sensing for high-speed rotating industrial machinery.

Request a Quote

The Bently Nevada 330705-02-18-10-02-00 is a specialized non-contact sensor for the 3300 XL transducer series. This reverse mount probe identifies microscopic shaft movements without physical contact. Specifically, the reverse mount design simplifies installation in through-hole machinery applications. It converts physical distance into precise electrical signals for vibration monitoring. Consequently, this probe serves as a cornerstone for modern machinery protection strategies. It helps operators identify mechanical issues before they lead to catastrophic equipment failure.

Engineering Excellence and Material Quality

High-grade stainless steel forms the probe body for maximum structural integrity. This material resists corrosion from industrial oils and high humidity. Additionally, the PPS (polyphenylene sulfide) tip protects the internal induction coil. The patented ClickLoc connectors prevent mechanical loosening during high-frequency vibration cycles. Furthermore, the FEP cable jacket maintains flexibility across wide temperature ranges. This robust construction ensures long-term stability in the most demanding industrial environments.

Industrial Applications and System Integration

Reliability teams install this probe on critical rotating assets across various sectors. It excels in monitoring centrifugal compressors and high-speed gas turbines. Moreover, the reverse mount configuration allows for easier replacement from the machine exterior. The probe integrates perfectly with the Bently Nevada 3500 protection rack. It also supports standard 3300 XL Proximitor sensors for seamless data conversion. This versatility makes it ideal for both new builds and legacy system upgrades.

Performance Reliability and Asset Health

The 330705-02-18-10-02-00 delivers exceptional signal-to-noise ratios for precise measurements. It tracks radial vibration and axial position with sub-micron resolution. Furthermore, the standardized electrical length simplifies system calibration and maintenance. These accurate readings allow for proactive maintenance scheduling and reduced downtime. Choosing this authentic Bently Nevada sensor guarantees compliance with international safety standards. Ultimately, it provides the essential data needed to optimize plant-wide machinery health.

Technical Configuration and Specifics

  • Model Number: 330705-02-18-10-02-00
  • Probe Diameter: 8 mm
  • Thread Type: 3/8-24 UNF threads
  • Total Length: 1.0 meter (3.3 feet)
  • Mounting Style: Reverse mount for external installation
  • Connector Option: Miniature coaxial ClickLoc connector
  • Environmental Rating: IP65 for dust and moisture resistance
  • Linear Range: 2.0 mm (80 mils) starting at 0.25 mm (10 mils)
Tags: ,

You may also like

Sale!
330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

330192-00-28-05-00 | Bently Nevada | 3300 XL 8 mm ETR Proximity Probes

Technical Overview

The Bently Nevada 330192-00-28-05-00 is an 8 mm Extended Temperature Range (ETR) proximity probe component of the 3300 XL Proximity Transducer System. Its primary function is to perform non-contact measurement of relative displacement on rotating and reciprocating machinery. The probe operates on an eddy current principle. When paired with a 3300 XL extension cable and Proximitor Sensor, it forms a tuned oscillator circuit that emits a high-frequency radio frequency (RF) field from the probe tip. This field induces eddy currents on the surface of the observed conductive target, typically a machine shaft. The interaction between the RF field and the eddy currents results in a change in the oscillator's amplitude, which is directly proportional to the gap between the probe tip and the target. The Proximitor Sensor demodulates this RF signal into a precise DC voltage. This voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Series, where it is processed to provide critical measurements including radial vibration, axial position (thrust), and rotational speed (when used in a Keyphasor configuration). The 330192-00-28-05-00 is constructed with a Polyphenylene Sulfide (PPS) tip and a stainless steel body, ensuring robust performance in high-temperature industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330192-00-28-05-00
Product Type3300 XL 8 mm ETR Proximity Probes
ConditionBrand New
Warranty12 Months
Linear Range2.0 mm (80 mils)
Scale Factor7.87 V/mm (200 mV/mil) ±5%
Probe Tip Temperature Range-34 °C to +260 °C (-30 °F to +500 °F)
Total Length0.5 meters (1.6 feet)
Case Length2.8 inches (71.1 mm)
Connector TypeMiniature coaxial ClickLoc connector, gold-plated
Probe Tip MaterialPolyphenylene Sulfide (PPS)

Operational Capabilities

The 330192-00-28-05-00 probe is engineered for high-reliability machine protection and condition monitoring in demanding industrial sectors. In Oil & Gas applications, its ETR specification (up to +260 °C) allows for installation on high-temperature machinery such as gas turbines, steam turbines, and centrifugal compressors, where probes are often located near hot casings or in high-temperature bearing housings. In Power Generation, it provides essential rotor dynamics data for turbine-generator sets, ensuring safe operation within design limits. The 3300 XL system, including the 330192-00-28-05-00 probe, is designed for high immunity to radio frequency interference (RFI/EMI), a common issue in industrial plants. Its robust construction with an AISI 304 stainless steel case provides excellent resistance to corrosion from hydrocarbons and other process chemicals. The system's stability and repeatability are critical for API 670 compliant machinery protection systems, providing accurate data for automatic shutdown logic and predictive maintenance analysis.

Applications

  • Power generation turbines and generators
  • Oil & gas compressors and pumps
  • Industrial rotating machinery monitoring
  • Predictive maintenance systems
  • Process automation

Technical FAQ

Q: What systems is the 330192-00-28-05-00 compatible with?
A: The 330192-00-28-05-00 probe must be used as part of a complete, electrically matched 3300 XL 8 mm transducer system. This system includes a 3300 XL Proximitor Sensor (e.g., P/N 330180-XXXX-XX) and a

Sale!
330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

330703-00-100-10-11-CN | Bently Nevada | 3300 XL 11 mm Proximity Probes

Technical Overview

The Bently Nevada 330703-00-100-10-11-CN is an 11 mm eddy current proximity probe designed for non-contact displacement and vibration measurement on rotating machinery. It functions as a core component of the 3300 XL 11 mm Transducer System, which also includes a matched extension cable and a 3300 XL 11 mm Proximitor Sensor. The system operates on the eddy current principle, where the Proximitor Sensor emits a high-frequency radio frequency (RF) signal through the probe and extension cable. This signal radiates from the probe tip, creating an electromagnetic field. When a conductive target, such as a machine shaft, enters this field, eddy currents are induced on its surface. These currents create a secondary magnetic field that opposes the primary field, causing a measurable change in the RF signal's impedance. The Proximitor Sensor demodulates this signal to produce a DC voltage directly proportional to the gap between the probe tip and the target surface. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 series, for real-time analysis of radial vibration, axial position, and shaft speed. The 330703-00-100-10-11-CN features a robust stainless steel case and a chemically resistant Polyphenylene Sulfide (PPS) tip, ensuring reliability in harsh industrial environments.

Detailed Specifications

ParameterSpecification
ManufacturerBently Nevada
Part Number330703-00-100-10-11-CN
Product Type3300 XL 11 mm Proximity Probe
ConditionBrand New
Warranty12 Months
Linear Range4.0 mm (160 mils)
Scale Factor2.00 mV/µm (50 mV/mil) ± 6.5%
Total Length1.0 metre
Probe Tip MaterialPolyphenylene Sulfide (PPS)
Probe Case MaterialAISI 304 Stainless Steel
Connector TypeMiniature coaxial ClickLocâ„¢ connector, gold-plated
Agency ApprovalCN Ex (China Ex) for hazardous area installations

Operational Capabilities

The 330703-00-100-10-11-CN proximity probe is engineered for high reliability in demanding industrial applications, particularly within Oil & Gas and Power Generation sectors. Its 11 mm tip provides a larger linear measurement range and is well-suited for monitoring large shaft diameters or applications requiring a greater standoff distance. The probe's construction ensures operational integrity across a wide temperature range, with the probe tip rated for -51 °C to +177 °C (-60 °F to +351 °F). The 3300 XL system design provides enhanced immunity to radio frequency interference (RFI/EMI), minimizing the risk of signal corruption from nearby motors, generators, or radio sources. The gold-plated ClickLoc™ connector ensures a secure, corrosion-resistant connection that prevents intermittent signals caused by vibration. When installed and maintained according to manufacturer specifications, the system demonstrates high Mean Time Between Failures (MTBF) and is a critical component for machinery protection systems (MPS) and condition monitoring programs, compliant with standards such as API 670.

Applications

  • Steam and gas turbines for power generation
  • Large centrifugal and reciprocating compressors in oil & gas processing
  • Boiler feed water pumps and other critical pump applications
  • Large electric motors and generators
  • Gearboxes and other industrial rotating machinery with fluid-film bearings
  • Integration into predictive maintenance and machinery protection systems (MPS)
  • Axial (thrust) position and radial vibration monitoring

Technical FAQ

Q: What systems is the 330703-00-100-10-11-CN compatible with?
A: The 330703-00-100-10-11-CN probe must be used as part of a complete Bently Nevada 3300 XL 11 mm Transducer System. This requires a matching 3300 XL 11 mm Proximitor Sensor (e.g., part number 330780) and a 3300 XL 11 mm extension cable. It is not interchangeable with components from 5 mm or 8 mm transducer systems, as the scale factor and linear range are different. The complete transducer system provides a voltage output compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as third-party PLCs, DCS, and data acquisition systems designed to accept a 3-wire, -24 Vdc powered eddy current probe input.

Q: What are the installation requirements?
A: Proper installation is critical for accurate measurements. The probe must be mounted perpendicular to the observed shaft surface using a rigid bracket. The target area on the shaft must be smooth (typically 0.4 to 0.8 µm / 16 to 32 µin Ra), free of chrome or other non-conductive plating, and clear of any residual magnetism or electrical runout. The probe must be gapped correctly by adjusting its distance to the shaft until the Proximitor Sensor output voltage is at the center of the linear range, typically -10.0 Vdc. The probe case locknut should be torqued to the specified value to prevent loosening. The integral cable and any extension cable should be secured to avoid strain on the connectors and routed away from high-voltage power cables to minimize interference.

Sale!
Bently Nevada 330101-00-45-20-12-05 Proximity Probes

Bently Nevada 330101-00-45-20-12-05 Proximity Probes

The Bently Nevada 330101-00-45-20-12-05 is an 8mm 3300 XL proximity probe. It features a 3/8-24 UNF thread and a 2.0-meter cable. This high-precision sensor monitors shaft vibration and position in critical rotating machinery.
Sale!
Bently Nevada 330180-X1-05 MOD:145004-67 3300 XL Proximitor Sensor

Bently Nevada 330180-X1-05 MOD:145004-67 3300 XL Proximitor Sensor

The Bently Nevada 330180-X1-05 MOD:145004-67 is a 3300 XL Proximitor sensor for vibration monitoring. It features a stainless steel housing and 50 Ω output resistance. This modified sensor provides precise gap measurements for critical industrial machinery protection systems.
Sale!
Bently Nevada 330780-50-05 3300 XL 11 mm Proximitor Sensor

Bently Nevada 330780-50-05 3300 XL 11 mm Proximitor Sensor

The Bently Nevada 330780-50-05 is a 5.0m 3300 XL 11 mm Proximitor sensor for vibration and position monitoring. It features SpringLoc terminals, superior RFI/EMI immunity, and a slim DIN-rail compatible design for dense installations.
