  4. Bently Nevada 330902-00-10-10-01-05 3300 NSv Proximity Probes | Test
Sale!
SKU: 330902-00-10-10-01-05

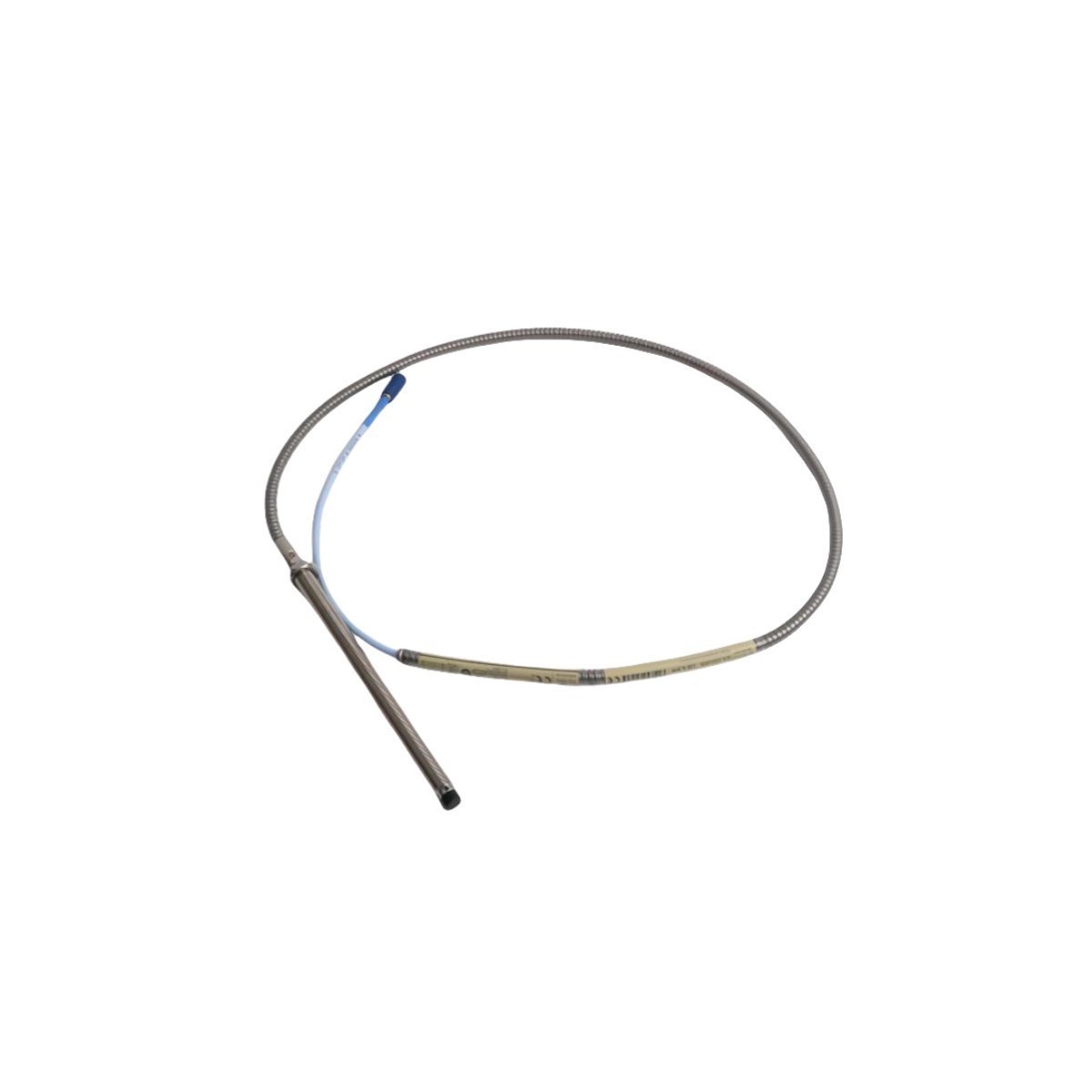

Bently Nevada 330902-00-10-10-01-05 3300 NSv Proximity Probes | Test

Request a Quote

330902-00-10-10-01-05 Product datasheet

Model number:

330902-00-10-10-01-05

Module Type：

3300 NSv Proximity Probes

Manufacture:

Bently Nevada

Condition：

Brand New

Range of Product:

3300 Proximity Transducer System

Lead time：

In Stock

Weight:

0.06 kg

HS CODE：

8537101190

Dimension:

62×62×1cm

MOQ:

1

Product Origin:

USA

System：

TSI

Discontinued on:

active

Communication Service:

Ethernet router

330902-00-10-10-01-05 Functional Description

The Bently Nevada 330902-00-10-10-01-05 3300 NSv Proximity Probesrepresents a specialized proximity transducer solution designed for machinery with tight installation constraints. As part of the 3300 XL NSv series, this system excels in applications involving centrifugal compressors, refrigeration units, and process gas compressors where standard probes cannot fit. The 330902-00-10-10-01-05 Proximity Probe Bently Nevada PDFpackage includes a precision probe, extension cable, and Proximitor sensor, providing complete measurement capabilities in space-limited environments.

The Bently Nevada 330902-00-10-10-01-05 Proximity Probessolves measurement problems in counterbore, sideview, or rearview restricted areas. Its compact design makes it particularly effective for small target applications, including radial vibration monitoring on shafts under 51mm (2″) and axial position measurements on targets smaller than 15mm (0.6″). These features make the Bently Nevada 330902-00-10-10-01-05 invaluable for fluid-film bearing machines with space constraints.

The 3300 Series Bently Nevada 330902-00-10-10-01-05supports multiple critical measurements: radial vibration/thrust position, axial displacement, tachometer signals, and Keyphasor references. Its specialized configuration maintains Bently Nevada’s renowned accuracy and reliability while addressing unique installation challenges that conventional 5mm and 8mm transducer systems cannot accommodate.

As a trusted solution for critical machinery monitoring, the Bently Nevada 330902-00-10-10-01-05 combines precision engineering with application-specific design.

Tags: ,
