Bently Nevada 330930-045-00-CN 3300 NSV Extension Cable

Technical Specification Overview

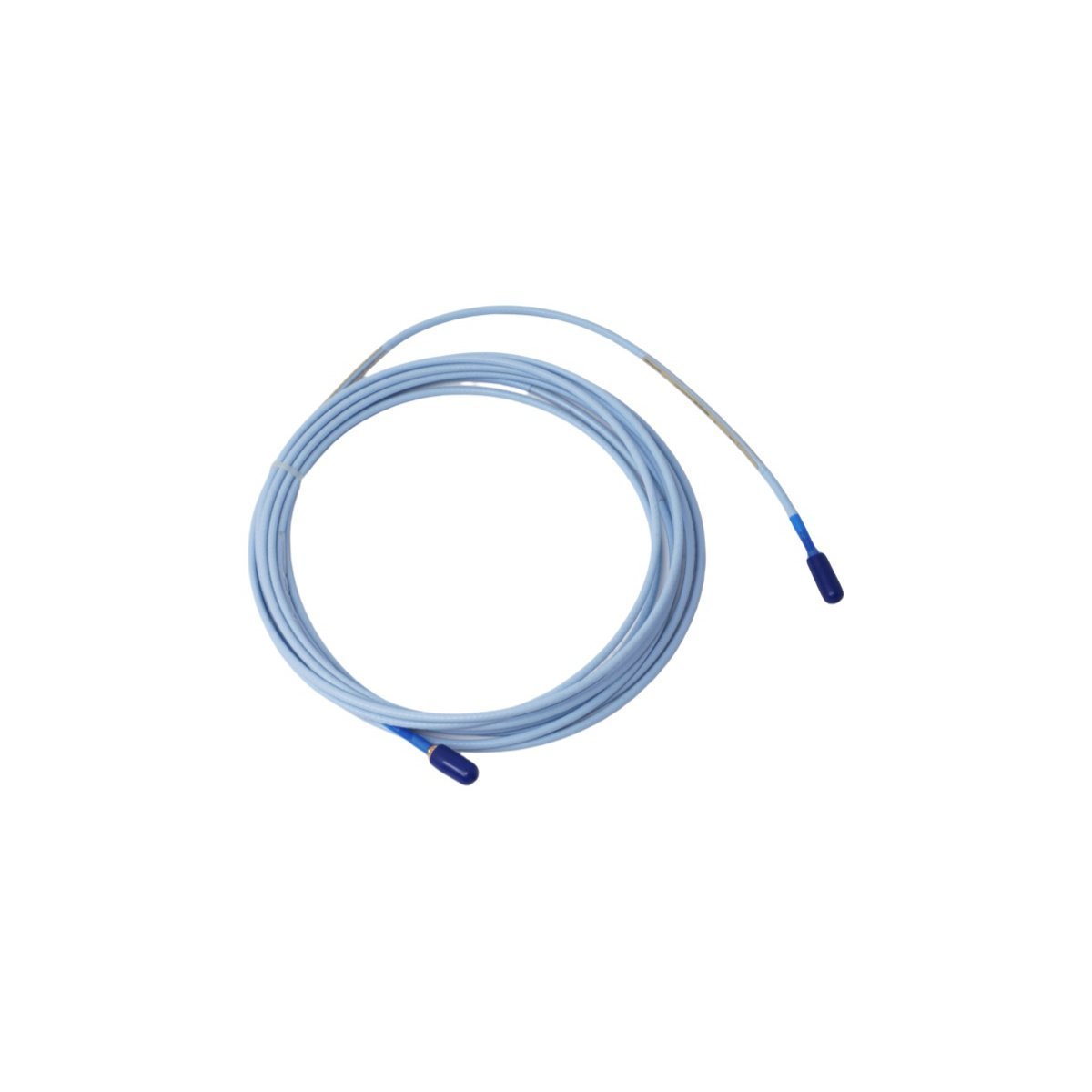

The Bently Nevada 330930-045-00-CN serves as a specialized signal transmission link for the 3300 NSV (Near Proximity) Transducer System. This extension cable facilitates the transfer of high-frequency eddy current signals from the NSV probe to the Proximitor sensor. By maintaining precise electrical impedance, the 330930-045-00-CN ensures that the system accurately monitors displacement in applications involving small-diameter shafts or restricted mounting clearances where standard sensors would fail due to side-viewing interference.

Design and Functional Capabilities

Engineers designed this cable to withstand the rigors of industrial environments while preserving signal integrity. This specific model features a 4.5-meter length and a non-armored design, which allows for easier routing through tight conduits or cable trays. Furthermore, the “CN” designation indicates compliance with specific Chinese regional standards, ensuring the hardware meets local regulatory requirements for industrial monitoring equipment.

• Manufacturer: Bently Nevada
• Model Number: 330930-045-00-CN
• System Series: 3300 NSV
• Cable Length: 4.5 Meters
• Armor Option: Non-armored
• Certification: CN
• Connector Type: Miniature coaxial ClickLoc connectors
• Operating Temperature: -51°C to +177°C

Operational Impact and Industrial Applications

This extension cable actively powers predictive maintenance programs by delivering clean, low-noise signals to machinery protection systems. Because the 3300 NSV system excels at monitoring targets as small as 13mm (0.5 inches), this cable is vital for assets where standard 8mm probes cannot be used. Consequently, plant operators gain the ability to detect subtle shaft vibrations or axial position shifts in auxiliary equipment, preventing unplanned downtime and extending machine life.

Key industrial applications include:

• Centrifugal Pumps: Monitoring vibration on small-diameter pump shafts.
• Small Fans and Blowers: Tracking mechanical health in compact air-handling units.
• Auxiliary Turbines: Measuring axial displacement in small-scale power generation components.
• Tachometer Links: Providing signal paths for high-speed speed sensing in tight spaces.

Mechanical Integrity and Performance

To ensure a fail-safe connection, Bently Nevada utilizes patented ClickLoc connectors that snap together with a vibration-resistant lock. This mechanism prevents the signal attenuation that typically occurs if standard connectors loosen due to the high-frequency mechanical oscillations found near bearing housings. Additionally, the cable’s high-performance jacketing resists common industrial lubricants and moisture, preserving the electrical characteristics of the coaxial line throughout its service life.
