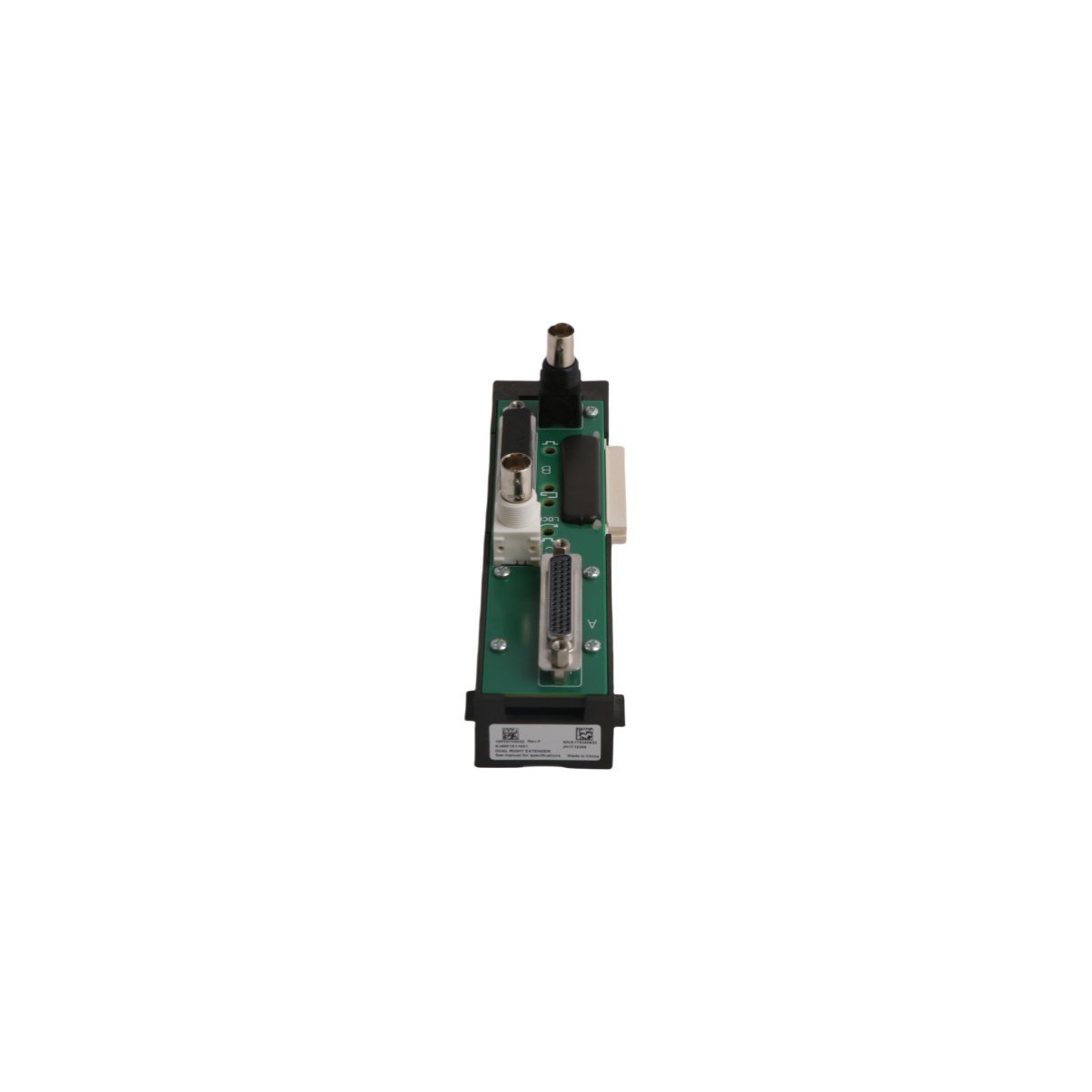

The Emerson KJ4001X1-NA1 (12P3373X032) is a DeltaV M-series Horizontal LocalBus Dual Right Cable Extender. It enables the seamless expansion of I/O subsystems by bridging local bus signals between carriers. Designed for 12V DC systems, this compact module ensures reliable data transmission and power distribution across extended DCS architectures.
The Emerson KJ4001X1-NA1 serves as a critical hardware interface within the DeltaV M-series I/O subsystem. This Horizontal LocalBus Dual Right Cable Extender facilitates the expansion of the local bus architecture, allowing engineers to connect additional I/O carriers while maintaining high-integrity communication across the DCS backplane. By bridging separate rail segments, the module ensures that the controller can effectively address and manage remote I/O modules as if they were residing on the primary rack.
System integrators typically utilize this extender to optimize cabinet space and organize complex wiring layouts. Because the unit supports a power rating of 12 VDC at 8 A, it maintains consistent voltage levels across the extended bus, preventing signal degradation during high-speed data transfers. Furthermore, the ruggedized construction protects internal circuitry from electrical noise and vibration, which are common challenges in industrial process environments.
Installation involves mounting the extender onto the right-hand side of a horizontal carrier. Once secured, it provides a physical and electrical gateway for DeltaV bus cables to link to the next carrier row. This modular approach significantly increases the scalability of the DeltaV system, enabling facilities to expand their control capacity without replacing existing infrastructure.
| Parameter | Specification |
|---|---|
| Model / Catalog No. | KJ2221X1-BA1 |
| Alternative Part Numbers | 12P3232X112 / VS6002 |
| Manufacturer | EMERSON (DeltaV Product Line) |
| Origin | USA |
| Weight | 0.32 kg |
| Dimensions | 4.1 x 12.5 x 19.0 cm |
| Module Type | SISNet Repeater Module / Network Extender |
| System Platform | DeltaV SIS Process Safety System (DCS) |
| Discontinued Date | December 31, 2018 (Legacy status) |
