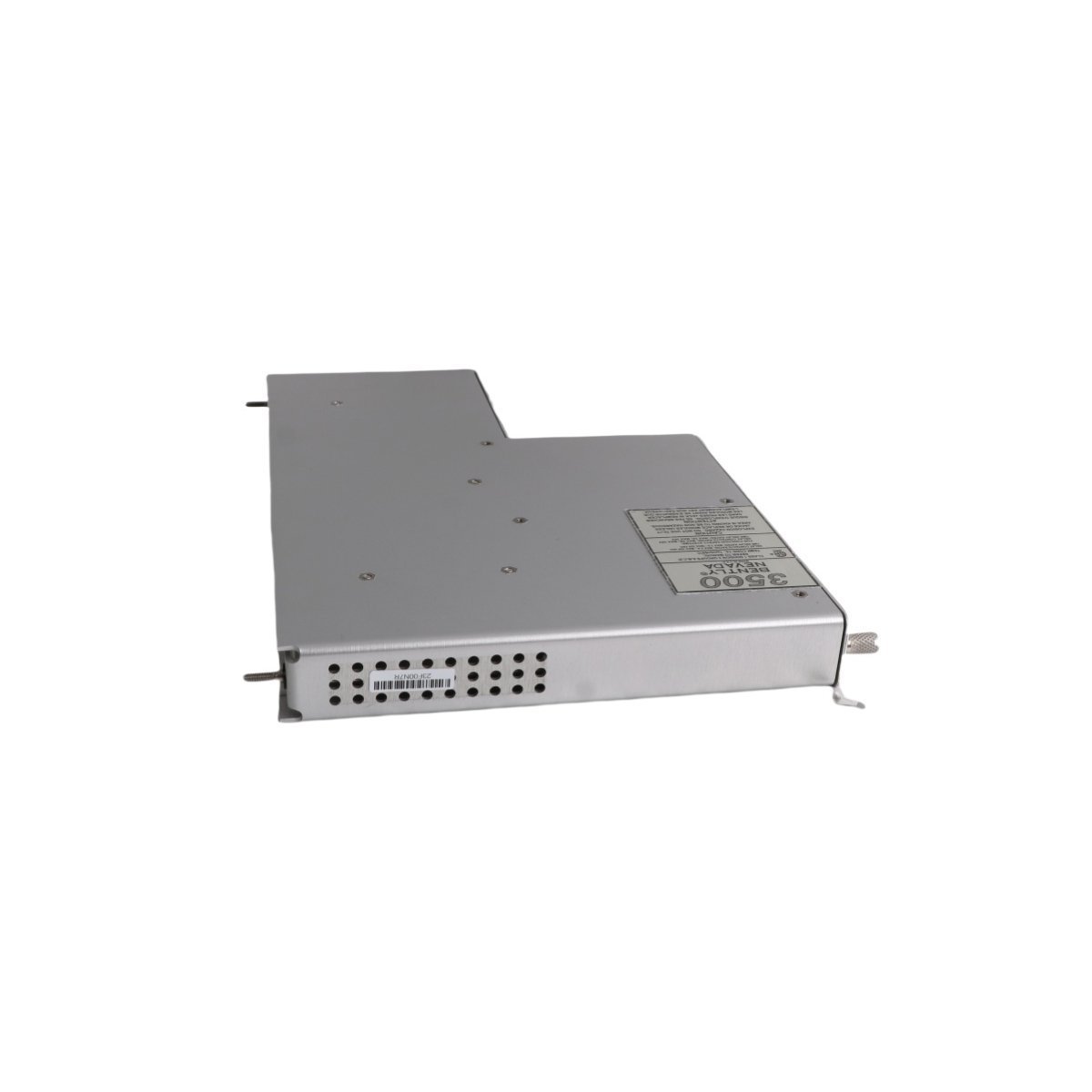

Bently Nevada 3500/62-03-00 (137110-01) Process Variable I/O Module

System Purpose and Operational Function

The Bently Nevada 137110-01 functions as the specialized I/O interface for the 3500/62 Process Variable Monitor. This module accepts various industrial input signals—including 4-20 mA current loops and low-voltage DC signals—and transmits them to the monitoring system for machinery protection. Because it features internal terminations, this specific version allows technicians to wire field sensors directly to the back of the 3500 rack without requiring external terminal blocks. Consequently, the 137110-01 effectively streamlines the integration of auxiliary parameters like temperature, pressure, and flow into the primary vibration monitoring framework.

Technical Specifications

• Brand: Bently Nevada
• Part Number: 137110-01
• Module Type: Process Variable I/O with Internal Terminations
• Input Channels: 6-channel architecture
• Input Signal Range: 4 to 20 mA, +1 to +5 Vdc, or 0 to +10 Vdc
• Mounting: Rear-mount configuration in 3500 Series racks
• Operating Temperature: -40°C to +85°C
• Humidity Tolerance: 95% non-condensing
• Hazardous Area Approvals: CSA, ATEX, and IECEx certified

Operational Features and Industry Application

Engineers frequently deploy the 137110-01 in power generation and petrochemical facilities to monitor “slowly changing” variables that impact machine health. For instance, the module tracks motor winding temperatures and pump discharge pressures alongside high-speed vibration data. Moreover, the internal termination design utilizes high-quality screw terminals that secure the field wiring against industrial vibration. This setup reduces the number of potential failure points in the signal chain and ensures that the 3500/62 monitor receives a stable, noise-free input.

Installation and System Maintenance

Technicians install the 137110-01 directly behind the 3500/62 Process Variable Monitor card in the machinery protection rack. During the commissioning phase, the 3500 Rack Configuration Software allows users to define the specific input type for each of the six channels. Because the module supports “hot-swapping,” maintenance teams can replace a faulty I/O unit without disrupting the power to other critical monitors in the same rack. Furthermore, the module’s rugged construction guarantees long-term reliability in harsh environments where electromagnetic interference (EMI) is prevalent.
