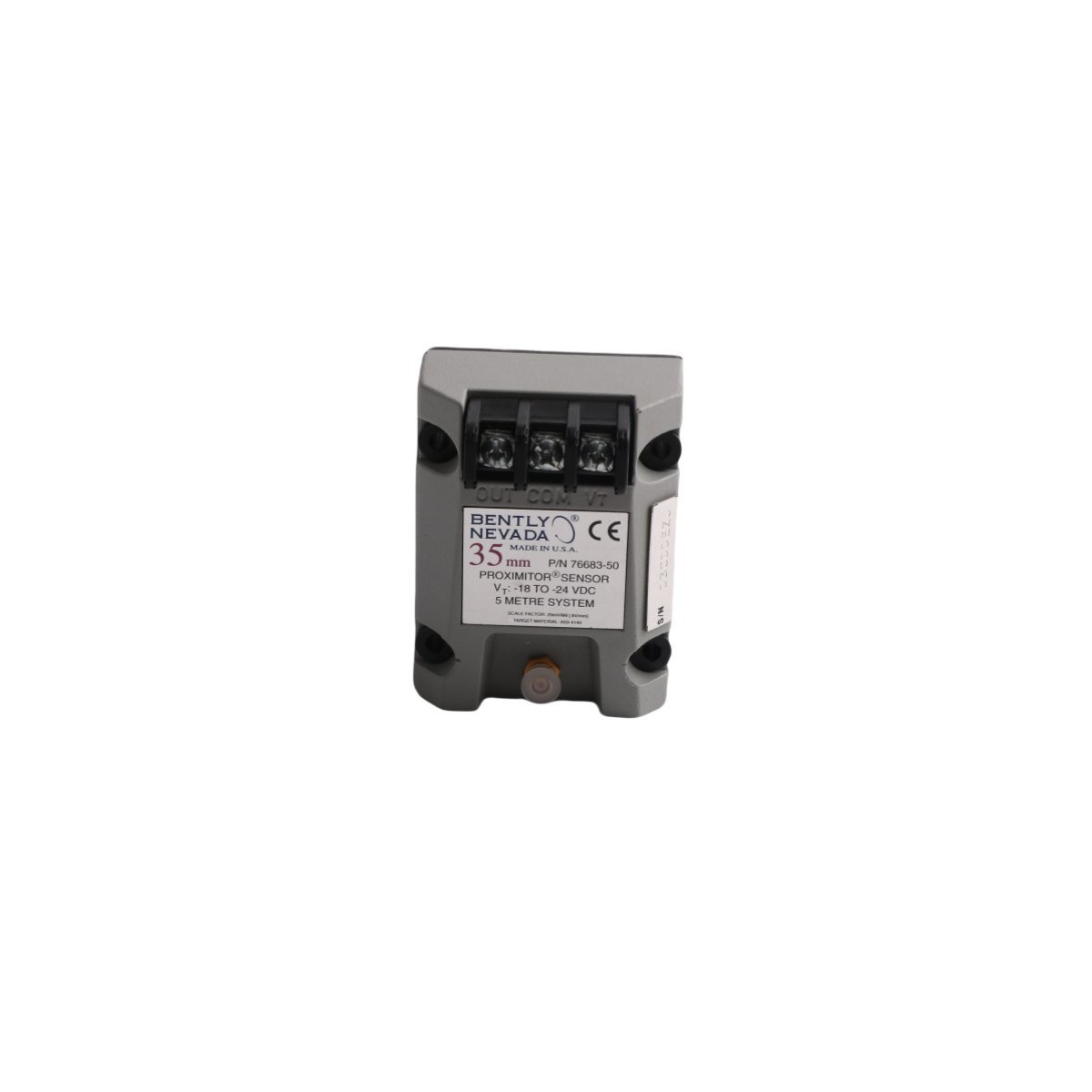

The Bently Nevada 76683-50 Proximitor Sensor provides high-precision signal conditioning for 35mm proximity probe systems. It features a rugged design and RS-485 Modbus RTU interface to ensure reliable vibration and displacement monitoring for large-scale industrial turbines.
The Bently Nevada 76683-50 functions as a specialized 35mm Proximitor Sensor, specifically engineered for large-diameter proximity probe systems. Unlike standard 8mm systems, this 35mm sensor provides a significantly larger linear range, which makes it indispensable for monitoring massive rotating shafts where high levels of displacement occur. As a sophisticated signal conditioner, the module generates a regulated DC voltage to create an eddy current field at the probe tip. Subsequently, the device converts the return signal into a usable voltage proportional to the distance. Consequently, this process enables the precise tracking of axial thrust and radial vibration in the largest industrial turbines and generators.
Furthermore, this Proximitor module bridges the gap between physical machine movement and digital control systems. By utilizing a built-in RS-485 Modbus RTU interface, the 76683-50 facilitates seamless communication with plant-wide monitoring networks. Because the processor captures and analyzes data at high speeds, it executes complex predictive maintenance algorithms without latency. This real-time capability proves vital for Turbine Supervisory Instrumentation (TSI) systems. For instance, the early detection of a shaft rub or bearing failure allows the system to trigger automated safety protocols, thereby preventing catastrophic damage.
In addition to its technical precision, the 76683-50 maintains high accuracy despite the challenging conditions often found in power plants and refineries. The robust construction resists electromagnetic interference (EMI) and ensures stable performance across a wide operating voltage range of 18-24V DC. Because the unit features a compact form factor, it fits easily into standard industrial enclosures to provide a maintenance-free solution for asset protection. Ultimately, the design prioritizes long-term reliability, which ensures that the critical data link between the machinery and the control room remains uninterrupted in high-temperature or high-vibration zones.
The Bently Nevada 21504-00-32-10-02 is a 3300 NSv series proximity vibration probe, a fundamental component of an eddy current transducer system designed for non-contact displacement and vibration measurement on rotating machinery. Its primary function is to measure the distance (gap) between the probe tip and a conductive target material, typically a machine shaft. The probe operates by generating a high-frequency radio frequency (RF) field from its tip coil. When brought near the conductive target, this field induces eddy currents on the target's surface. These eddy currents alter the impedance of the probe's coil system. This change in impedance is detected by an associated Proximitor Sensor, which demodulates the signal into a voltage directly proportional to the probe-to-target gap. This analog voltage signal is then transmitted to a monitoring system, such as the Bently Nevada 3500 Machinery Protection System, for real-time analysis, trending, and alarming. The 21504-00-32-10-02 is constructed with a stainless steel case for durability in industrial environments and is specifically configured with a 320 mm case length and a 1.0-meter integral cable.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 21504-00-32-10-02 |
| Product Type | 3300 NSv Proximity Vibration Probe |
| Condition | Brand New |
| Warranty | 12 Months |
| Unthreaded Length | 0 mm |
| Case Length | 320 mm (12.6 in) |
| Total Length | 1.0 metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 304 Stainless Steel |
| System Linear Range | 2 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 NSv Proximitor |
In Oil & Gas and Power Generation applications, the 21504-00-32-10-02 probe demonstrates high reliability for continuous monitoring of critical assets such as gas and steam turbines, compressors, and large pump motors. Its non-contacting measurement principle eliminates mechanical wear, contributing to a high Mean Time Between Failures (MTBF) for the overall protection system. The probe is engineered to operate reliably in harsh industrial conditions. The probe tip is rated for continuous operation from -34 °C to +177 °C (-29 °F to +351 °F). The robust stainless steel case provides protection against physical impact and contaminants common in plant environments. When installed as part of a complete 3300 NSv transducer system, it provides a stable and repeatable measurement essential for machine protection and condition monitoring programs, enabling early detection of developing faults like imbalance, misalignment, and fluid-induced instabilities.
Q: What systems is the 21504-00-32-10-02 compatible with?
A: The 21504-00-32-10-02 probe is a component of the Bently Nevada 3300 NSv Proximity Transducer System. For correct operation, it must be used in conjunction with a 3300 NSv extension cable and a 3300 NSv Proximitor Sensor. The output from the Proximitor Sensor is compatible with Bently Nevada monitoring systems, including the 3500 and 3300 series, as well as any data acquisition system, PLC, or DCS capable of accepting a -24 Vdc powered, 7.87 V/mm (200 mV/mil) analog signal.
Q: What are the installation requirements?
A: Proper installation is critical for measurement accuracy. The probe must be mounted perpendicular to the target surface using a rigid bracket. The physical gap should be set to place the DC output voltage in the middle of the system's linear range, typically -10 Vdc. The target area on the shaft must be at least 10.7 mm (0.42 in) in diameter, smooth (0.4 to 0.8 µm / 16 to 32 µin rms), and free of any electrical or magnetic irregularities (e.g., chrome plating, magnetised spots). Cable routing must avoid high-voltage power lines and other sources of electromagnetic interference. All ClickLoc connectors must be fully engaged to ensure a secure connection.
The Bently Nevada 330104-00-14-10-11-00 Proximity Probes is a genuine industrial component.
| Condition | New |
