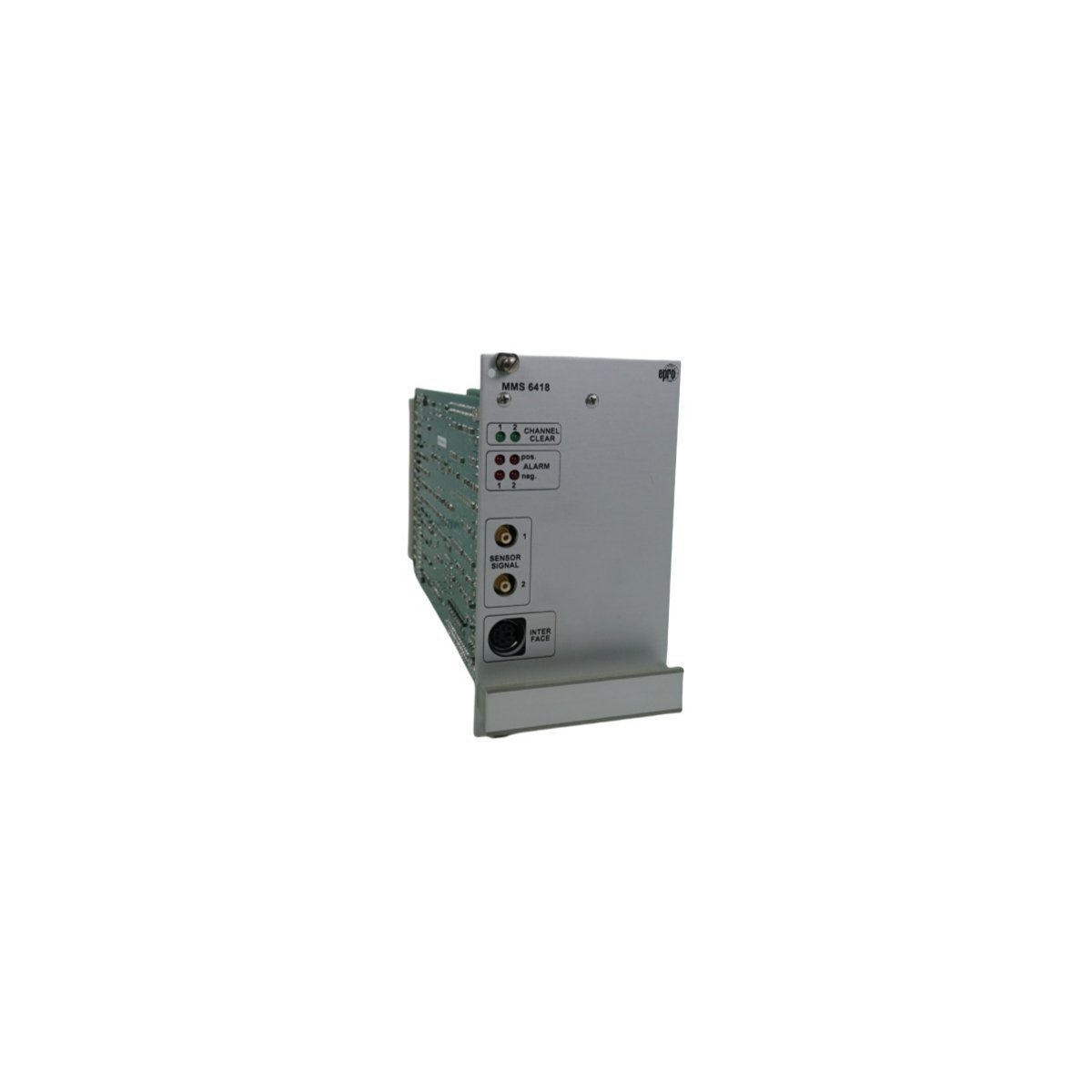

Emerson Epro MMS6418 Dual-Channel Shaft Displacement Interface Card

Technical Overview

The Emerson MMS6418, a core component of the Epro MMS6000 Machine Monitoring System, functions as a dual-channel interface card designed for high-precision shaft displacement and position monitoring. This module processes signals from eddy current sensors to provide critical data regarding the axial or radial position of rotating shafts in large-scale industrial machinery. By converting raw sensor data into standardized industrial signals, the MMS6418 enables real-time monitoring of thermal expansion, thrust bearing wear, and mechanical alignment.

Functional Performance

This interface card utilizes advanced signal processing algorithms to ensure high linearity and temperature stability across its measurement range. The MMS6418 supports two independent channels, allowing for redundant monitoring or the simultaneous tracking of two separate measurement points. It features programmable alarm limits (Alert and Danger) that trigger integrated relays when vibration or displacement levels exceed safe operating thresholds. Furthermore, the card provides buffered outputs for external analysis tools, facilitating in-depth machinery diagnostics without interrupting the primary control loop.

Key Technical Characteristics

• Brand: Emerson (Epro Series)
• Model Number: MMS6418
• Card Type: Dual-Channel Shaft Displacement Monitor
• Signal Inputs: Compatible with eddy current transducers (e.g., PR6422, PR6423, PR6424, PR6425)
• Measurement Modes: Axial position, radial displacement, and eccentricity
• Output Signals: Dual 0/4…20 mA analog outputs and RS232/RS485 communication
• Configuration: Programmable via MMS6000 configuration software
• Protection Class: Integrated galvanically isolated inputs and outputs
• Power Supply: +24V DC nominal (via MMS6000 rack)

Primary Applications

• Turbine Thrust Monitoring: Tracking axial movement of steam and gas turbine shafts to prevent catastrophic bearing contact.
• Compressor Protection: Monitoring shaft position in high-speed centrifugal compressors to detect aerodynamic instability.
• Hydroelectric Generators: Measuring the air gap and shaft run-out in large vertical and horizontal generators.
• Boiler Feed Pumps: Ensuring the mechanical integrity of high-pressure pumps through continuous displacement tracking.

Operational Advantages

• High Reliability: The dual-channel architecture provides an extra layer of protection through signal comparison and redundancy.
• Real-Time Protection: Integrated hardware limit value monitors respond instantly to mechanical faults, preventing equipment damage.
• Simplified Integration: The module fits seamlessly into standard 19-inch MMS6000 racks, communicating directly with higher-level DCS or PLC systems.
• Diagnostic Versatility: Buffered “Raw Signal” outputs allow maintenance teams to connect portable vibration analyzers for spectral analysis.
