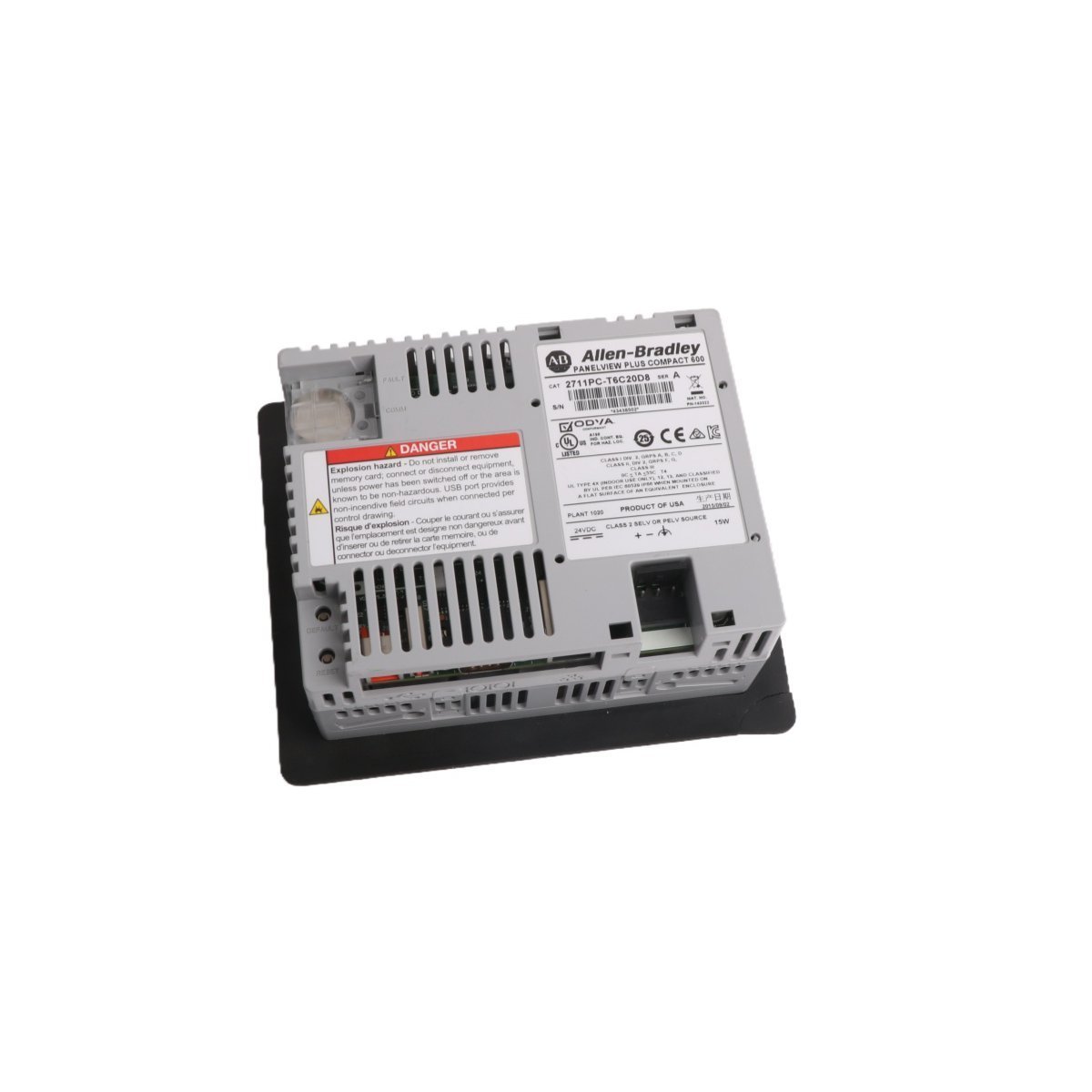

Allen-Bradley 2711PC-T6C20D8 PanelView Plus Compact 600 Color Touch Screen

The Allen-Bradley 2711PC-T6C20D8 is a 5.7-inch color touch screen HMI designed for the PanelView Plus Compact 600 series. Featuring Ethernet and RS-232 connectivity, a 24 VDC power requirement, and FactoryTalk View ME support, it provides a rugged and cost-effective interface for localized machine control.

Request a Quote

Product Description

The Allen-Bradley 2711PC-T6C20D8 functions as a high-performance Human Machine Interface (HMI) within the PanelView Plus Compact 600 series. This terminal provides operators with a clear, color-graphic interface to monitor and control industrial applications handled by Logix5000 controllers. Because it features a high-resolution 5.7-inch TFT display, it ensures that complex process data and alarm notifications remain legible even in variable lighting conditions.

Furthermore, the 2711PC-T6C20D8 utilizes an analog resistive touch screen, which allows users to interact with the system precisely, even while wearing industrial gloves. The “Compact” designation indicates that this model is specifically optimized for small-to-medium-sized applications, offering a streamlined feature set that reduces cost without sacrificing reliability. Since it comes equipped with integrated Ethernet and RS-232 communication ports, the terminal supports seamless data exchange across diverse network architectures. Additionally, the unit runs on 24 VDC power, making it compatible with standard industrial control cabinet power supplies.

Key Technical Characteristics

  • Manufacturer: Allen-Bradley (Rockwell Automation)
  • Model Identification: 2711PC-T6C20D8
  • Product Line: PanelView Plus Compact 600
  • Display Type: 5.7-inch Color TFT LCD
  • Operator Input: Analog Resistive Touch Screen
  • Input Voltage: 24 VDC (Nominal)
  • Memory: 256 MB RAM / 512 MB Non-volatile storage
  • Communication Ports: 1 x Ethernet (10/100 Mbps), 1 x RS-232, 1 x USB Port
  • Resolution: 320 x 240 QVGA
  • Software Environment: FactoryTalk View Machine Edition (ME)
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)

Industrial Applications

Facility managers and system integrators deploy the 2711PC-T6C20D8 across various sectors to enhance operational visibility. Specifically, the terminal excels in:

  • Machine-Level Control: Serving as the primary interface for standalone CNC machines, balers, and compactors.
  • Food and Beverage: Managing batching parameters and cleaning-in-place (CIP) cycles on production lines.
  • Conveyor Management: Providing a localized control point for start/stop functions and speed adjustments in logistics centers.
  • Environmental Monitoring: Displaying real-time temperature, pressure, and humidity levels in specialized cleanrooms.
