SKU: A6824

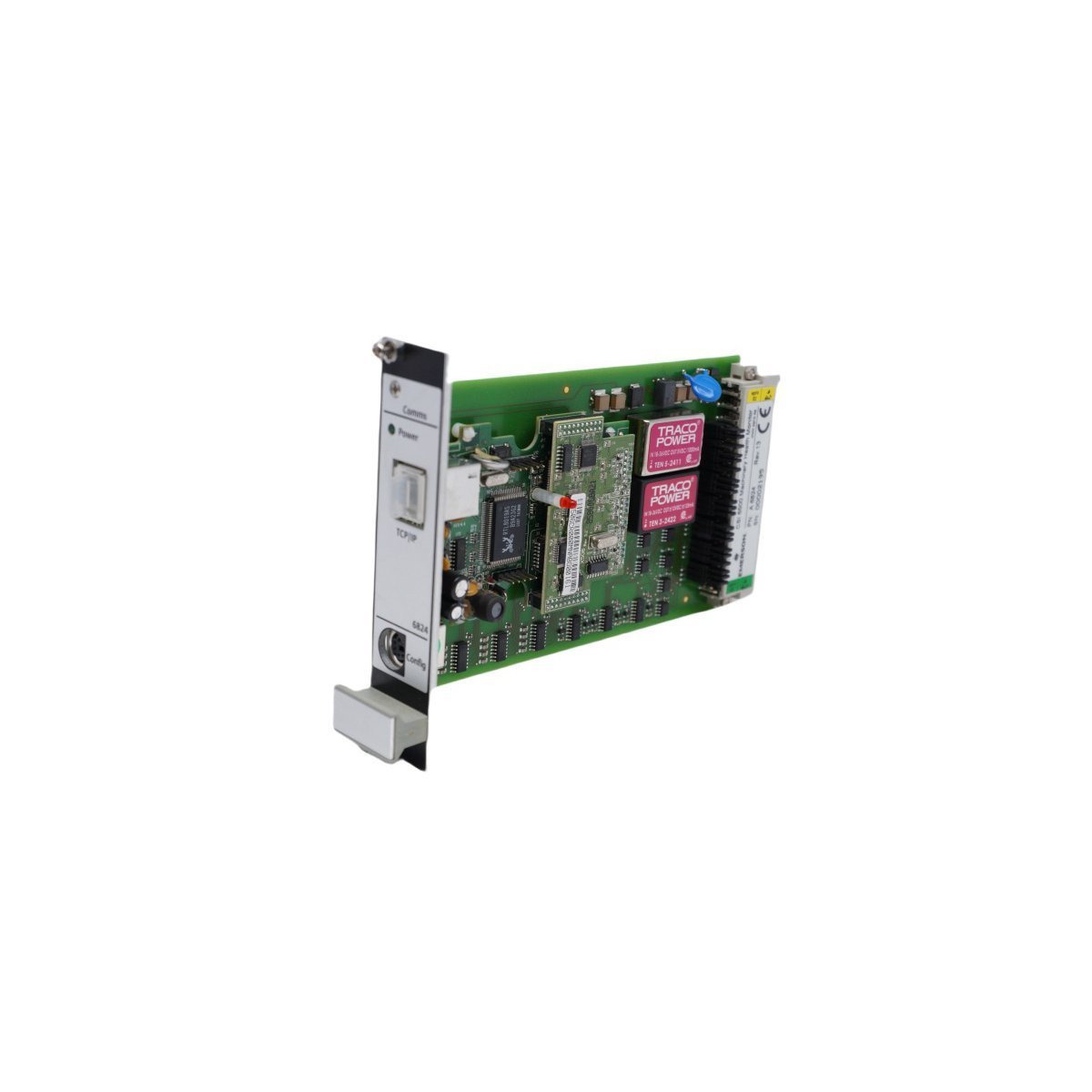

EMERSON A6824 ModBus and Frame Interface Module

EMERSON A6824 ModBus and Frame Interface Module for CSI 6500 Machinery Health Monitor. Brand New, Original Stock with Global Shipping.

The EMERSON A6824, also cataloged as the A6824 ModBus and Frame Interface Module, operates as a dedicated hardware component for physical data mapping and protocol translation within CSI 6500 Machinery Health Monitor platforms. The hardware processes dynamic vibration and machinery condition parameters directly from the backplane assembly, translating internal bus frames into structured Modbus registers for external transmission.

Hardware Specifications

Parameter	Specification
Model	A6824
Brand	EMERSON
Origin	USA
Weight	0.24 kg
Dimensions	3.1 x 19 x 12.8 cm
Operating Temp	0 to 60 deg C
Power Consumption	4.8 W
Module Type	ModBus and Frame Interface Module
Series	CSI 6500
System	DCS / Machinery Health Monitor
Communication Service	Ethernet router / Modbus RTU / Modbus TCP
HS CODE	8537101190
Minimum Order Quantity	1

Process Control & DCS Instrument Integration

The module provides channel-to-channel isolation to prevent ground loop currents from degrading data integrity across the backplane network. Configured for serial and Ethernet data mapping, the hardware handles data flows via 4-20 mA HART loop protocol conversion layers and transfers raw registers directly to central Distributed Control System (DCS) architectures. Internal circuits utilize hardware-driven cold junction compensation (CJC) routing and precise galvanic separation pathways to stabilize digital frames against industrial electromagnetic interference (EMI).

Frequently Asked Questions

Q: Does the A6824 module support live insertion and extraction during system operation?

A: No. The CSI 6500 rack must be completely powered down before inserting or removing the A6824 module to prevent backplane transient voltage damage and potential configuration memory corruption.

Q: How is the physical Modbus register mapping defined on this specific hardware?

A: The register mapping is assigned using standard CSI configuration software via the backplane connection, where internal parameters are allocated to specific 16-bit Modbus holding registers (44xxx range).

Q: What action occurs if communication is lost between the module and the external master?

A: The module maintains an internal communication timeout counter; upon expiration, it sets the designated health status register bits to high, signaling a communication fault to the host DCS.

Field Installation Guidelines

Mounting Protocol: Insert the module vertically into its dedicated slot within the CSI 6500 chassis. Ensure the top and bottom extraction levers engage fully with the chassis frame to ensure proper backplane connector alignment.
Torque and Securing: Tighten the two integrated front-panel retention screws to a maximum torque of 0.5 Nm to maintain structural grounding and prevent vibration-induced decoupling.
Shielding and Grounding: All external communication cables connected to the front ports must utilize double-shielded twisted pair (STP) cabling. The cable shield must be terminated directly to the connector shell for low-impedance chassis grounding.
Wiring Separation: Route serial and Ethernet cables through dedicated data conduits. Maintain a minimum separation distance of 30 cm from high-voltage AC power lines and variable frequency drive (VFD) output cables to minimize cross-talk.
