SKU: Allen Bradley GCU08CB-130 80173-109-01-3

Allen Bradley GCU08CB-130 Board Module

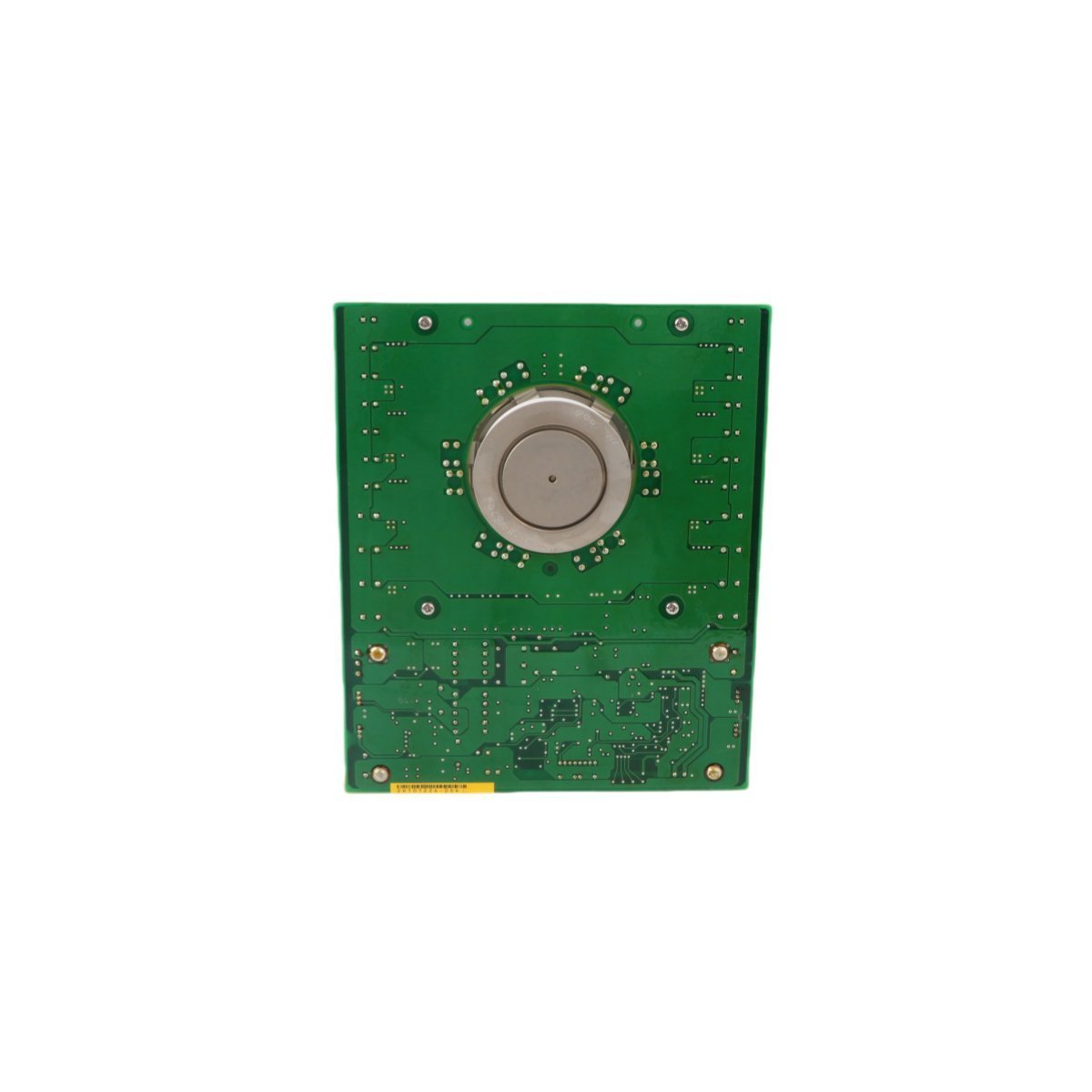

Allen Bradley GCU08CB-130-13080173-109-01-3 GCT Gate Driver Interface Board Module. Brand New factory stock with worldwide tracking logistics.

The Allen Bradley GCU08CB-130-13080173-109-01-3, also cataloged as the GCU08CB-130 Board Module, serves as the primary GCU08CB-130 Board Module utilized to execute physical gating control and interface driving across programmable logic controller (PLC) and drive platforms. The hardware functions as a dedicated gate control unit interface board, routing electrical pulse signals to gate commutated thyristor (GCT) power assemblies to modulate execution circuits.

Hardware Specifications

Parameter	Specification
Model	GCU08CB-130-13080173-109-01-3
Brand	Allen Bradley
Origin	USA
Weight	1.14 kg
Dimensions	25 x 20.7 x 5.5 cm
Operating Temp	0 to 55 deg C
Power Consumption	12.5 W
Module Type	Board Module / GCT Gate Driver Interface
System	PLC / Large Drive Systems
Communication Service	Ethernet router / Backplane Bus Link
HS CODE	8537101190
Minimum Order Quantity	1

Industrial Control & Deterministic Network Integration

The circuit board utilizes high-speed internal backplane bus communication velocity pathways to execute synchronized gate commands alongside the central processor. Real-time diagnostic parameters are transferred across Profinet / EtherNet/IP deterministic networks, maintaining deterministic signal scheduling during high-current firing operations. The hardware substrate supports high I/O density scaling configuration rules, allowing multi-channel gate monitoring signals to interface with local control logic while maintaining board-level isolation parameters against transient switching noise.

Frequently Asked Questions

Q: What is the primary cause of gate driver circuit fault signals on this module?

A: Fault signals typically originate from an input voltage drop below standard operating limits or an asymmetrical propagation delay during high-frequency GCT switching operations.

Q: Is firmware flash compatibility checked automatically upon board replacement?

A: No. When replacing the physical board module, the system engineer must manually verify that the onboard logic chips match the system revision level to prevent protocol synchronization mismatch faults.

Q: What physical indicator confirms active communication with the controller rack?

A: Onboard status LEDs switch from a steady amber state to a blinking or solid green state once data frames synchronize via the local bus structure.

Field Installation Guidelines

Electrostatic Discharge (ESD) Protection: This hardware contains sensitive MOS-gated components. Grounding wrist straps must be connected to an approved earth ground before unpacking or touching the circuit board tracks.
Chassis Grounding: Ensure the board assembly mounts securely to the metallic chassis supports. The dedicated grounding pad surrounding the mounting holes must make clean, metal-to-metal contact to bleed off EMI.
Cable Connection Rigidity: All fiber-optic or multi-pin copper ribbon cables routing to the thyristor modules must be locked into their respective terminal seats to avoid gate pulse distortion.
Cooling Clearance: Maintain a minimum clear boundary space of 50 mm above and below the board layout to facilitate unimpeded convective airflow and prevent localized thermal bottlenecks.
