SKU: Allen Bradley 1492-IFM40F-FS-2

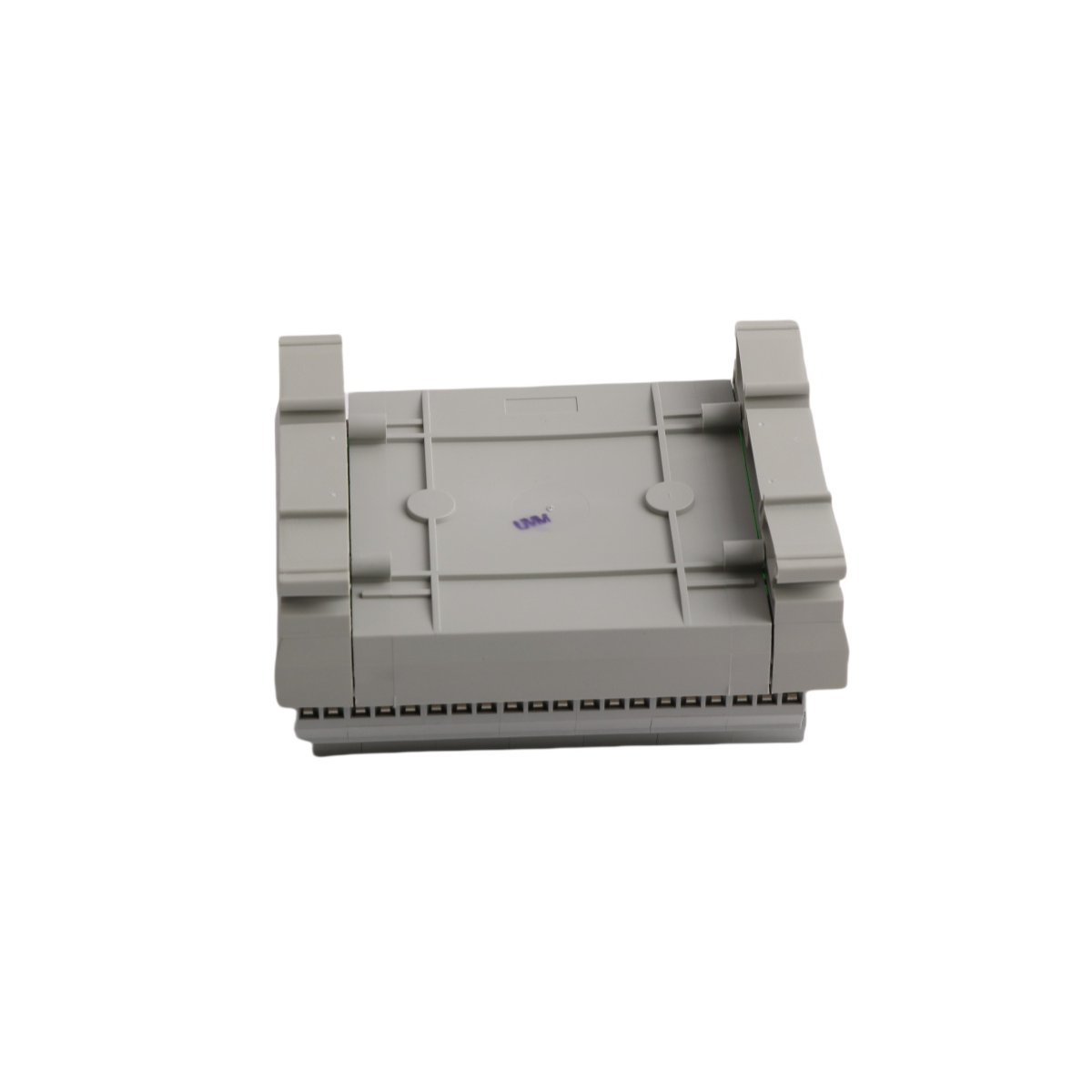

Allen Bradley 1492-IFM40F-FS-2 Wiring Systems Modules

he Allen Bradley 1492-IFM40F-FS-2 is a 40-contact fusible wiring systems interface module. This brand new, original stock component is available for global shipping to support your programmable logic controller architecture.

Configured for direct physical/electrical execution in PLC networks, the Allen Bradley 1492-IFM40F-FS-2 (1492-IFM40F-FS-2 Wiring Systems Module) operates as a dedicated hardware component for field signal termination and point-to-point circuit isolation within programmable controller wiring setups. The hardware interfaces directly with 1746 series I/O architectures to route discrete electrical signals between field-side infrastructure and local control racks via multi-pin cable connectors and predefined terminal assignments.

Hardware Specifications

Parameter	Specification
Model	1492-IFM40F-FS-2
Brand	Allen Bradley
Origin	USA
Weight	0.68 kg
Dimensions	3 x 17 x 27 cm
Operating Temp	0 to 60 deg C
Power Consumption	Not specified (Passive termination matrix with status indicators)
Module Type	Wiring Systems Modules
Control Platform	PLC
Voltage Rating	10 to 30 VAC / VDC
Current Rating	2 A per circuit maximum, 12 A per module maximum
Terminal Contacts	40-Contact point interface
Mounting Configuration	Standard #3 DIN-rail
Hazardous Location Rating	Class 1, Division 2; T3C Temperature Code
Compliance Certificates	CE, cULus, UL

Deterministic Network and Input/Output Scaling Matrix

The module relies on mechanical alignment and pre-mapped pin assignments to maintain fixed latency limits across high-density I/O configurations. By routing discrete field signals through integrated fuse clips and light-emitting diodes (LEDs), the physical topology allows parallel signal tracking without backplane bus communication velocity degradation. The physical layout provides one field-side terminal per I/O channel, establishing individual electrical paths that separate field wiring anomalies from the processing logic blocks. Internal trace layouts prevent multi-channel cross-talk and maintain signal fidelity up to the 12 A aggregate capacity threshold of the terminal structure.

Frequently Asked Questions

Q: What are the continuous electrical limitations per terminal path on this module?

A: Each individual circuit channel handles a maximum continuous current load of 2 A, provided that the total concurrent current accumulation across the entire 40-contact assembly does not exceed 12 A.

Q: Is this module capable of supporting hot-swap operations under full current load?

A: No. Circuit disconnection or removal of the multi-pin interface cable under active load conditions must be avoided to prevent electrical arcing and damage to the physical contact gold plating.

Q: How are fuse failures monitored or isolated on this termination board?

A: The board incorporates dedicated fuse clips for circuit isolation along with individual parallel-wired LED networks that provide direct visual identification of open-circuit faults at the physical module surface.

Field Installation Guidelines

Verify that the physical layout matches a standard #3 DIN rail before snapping the mounting base into place to ensure mechanical stability.
Conduct all field conductor insertions with a calibrated screwdriver tool to prevent structural distortion of the fixed terminal block screw cages.
Maintain complete physical separation between low-voltage digital signal pathways and high-voltage AC electrical lines inside the enclosure routing paths.
Ground the multi-pin cable shields directly to the single-point enclosure chassis grounding bar rather than routing them through active I/O termination blocks.
Ensure all field-side common distributions are terminated at remote junctions when applying this single-terminal-per-point layout infrastructure.
