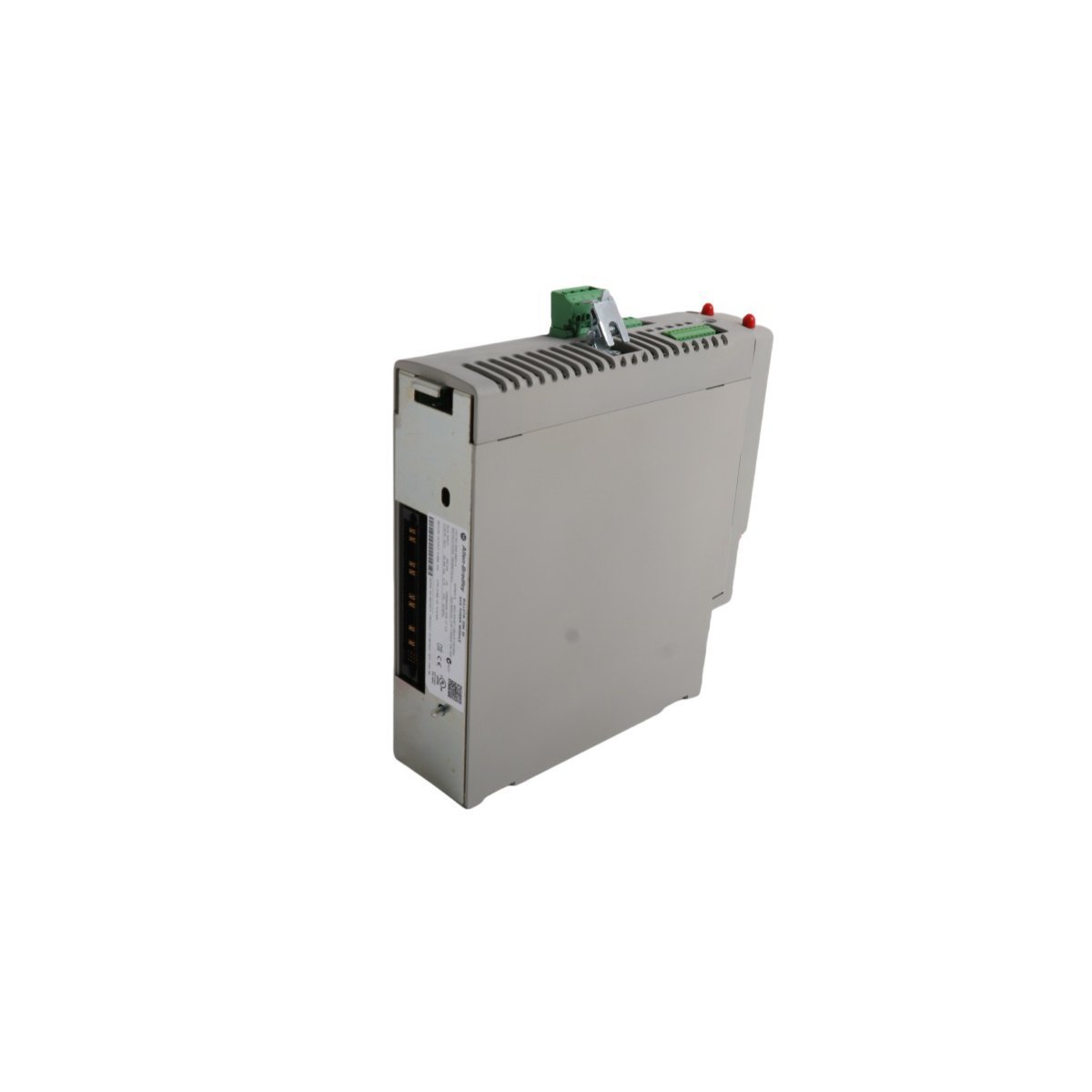

Allen Bradley 2094-BM01-M Modular Axis Module

The Allen Bradley 2094-BM01-M, also cataloged as the 2094-BM01-M Modular Axis Module, serves as the primary 2094-BM01-M Modular Axis Module utilized to execute physical drive gating and multi-axis servo regulation across Kinetix 6200/6500 platforms. The hardware mounts directly onto a shared power rail assembly to draw common DC bus energy, regulating motor velocity, position, and torque based on internal pulse-width modulation commands.

Hardware Specifications

Industrial Control & Deterministic Network Integration

The multi-axis drive framework relies on integrated backplane bus communication velocity pathways to maintain strict current loop frequency tracking at 1300 Hz. Synchronization data maps through Profinet / EtherNet/IP deterministic networks to execute advanced safety states, including Safe Maximum Speed and Safe Direction Monitoring. This high-density architecture scales via the shared rail, managing up to 200,000 A short-circuit current ratings while firmware flash compatibility parameters ensure matching execution logic across the complete motion array.

Frequently Asked Questions

Q: What are the physical threshold settings for the internal shunt circuit?

A: The internal shunt circuit activates when the DC bus voltage rises to 805 VDC and deactivates when the level drops back down to 765 VDC.

Q: Can the 2094-BM01-M module operate independently without an IAM module?

A: No. The axis module requires a companion Integrated Axis Module (IAM) to supply the shared DC bus power and control communication link across the common power rail.

Q: How is a firmware revision mismatch resolved during module swapping?

A: Control modules attached to the front face must be verified for firmware flash compatibility using standard software tools to align parameters with the active PLC motion controller project.

Field Installation Guidelines

• Power Rail Engagement: Slide the axis module onto the 2094 power rail guide tracks until the rear plane power connectors engage fully with the bus bars.
• Locking Mechanisms: Tighten the module mounting screws located at the top and bottom of the housing to secure the unit against thermal deflection and machine vibration.
• Feedback Wiring Separation: Route encoder and auxiliary feedback cables through shielded conduits separated by at least 30 cm from raw motor power leads to prevent high-frequency EMI corruption.
• Enclosure Airflow: Ensure a minimum vertical clearance of 100 mm above and below the axis housing to facilitate ambient air circulation and dissipate thermal losses.
