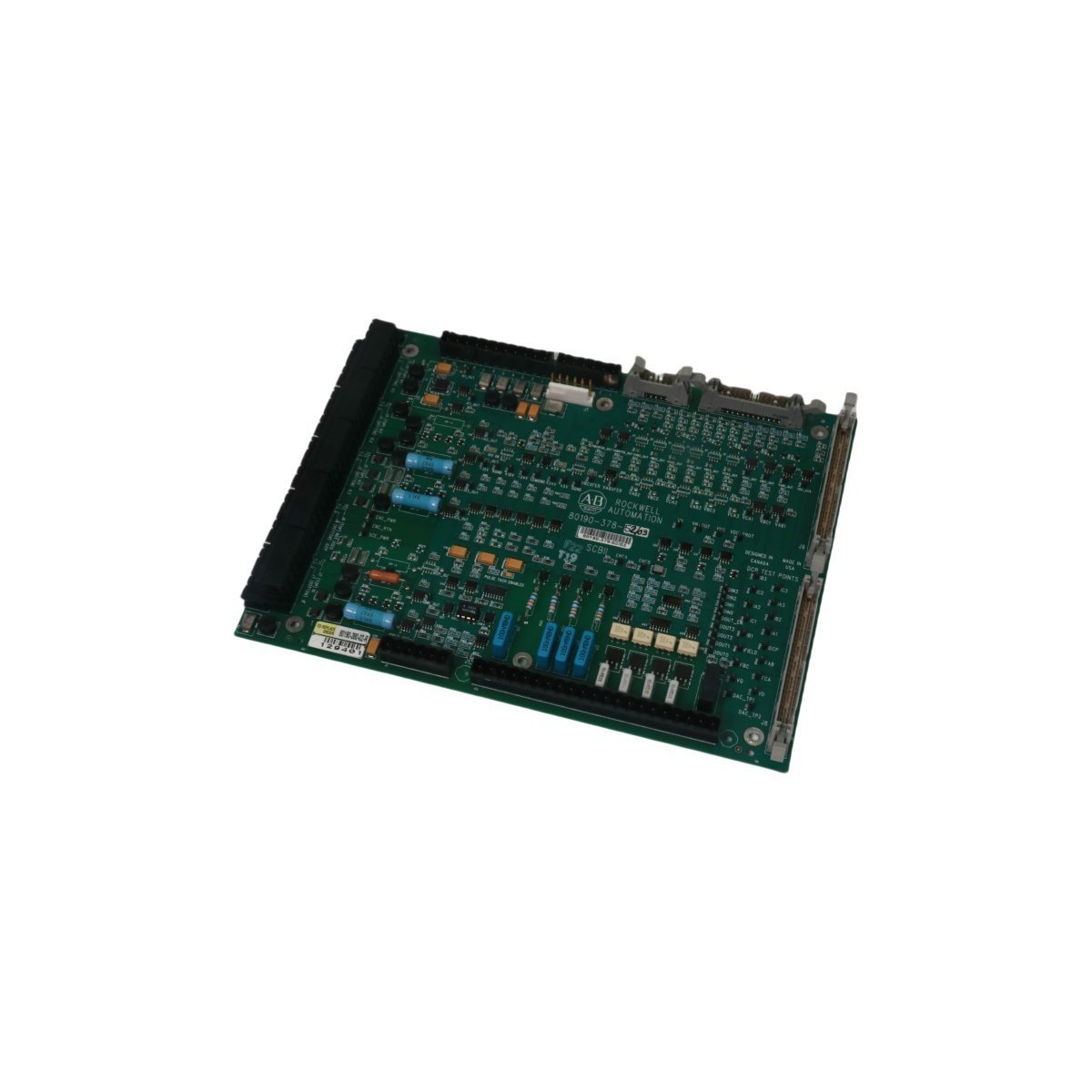

Allen-Bradley 80190-380-02-R PLC-5 Controller Board

The Allen-Bradley 80190-380-02-R is a specialized replacement microprocessor/controller board assembly engineered for the classic PLC-5® platform ecosystem. It serves as the primary internal control board responsible for executing ladder logic programs, managing local backplane I/O scanning, and driving peripheral communication ports.

This circuit board delivers deterministic processing speeds and rugged dependability for legacy manufacturing setups, such as high-volume automotive lines, sorting networks, and multi-axis assembly machines.

Hardware Specifications

Clarification Alert: While some marketplace listings generalized this part into the “ControlLogix” series, the 80190-380-02-R is physically and electronically a PLC-5 platform component. It is engineered to drop directly into standard PLC-5 processor housings or associated variable frequency drive (VFD) internal control nests.

Functional Architecture & Integration

The 80190-380-02-R acts as the central computation hub for the host processor assembly. It houses the main CPU core, non-volatile application memory backup routes, and the bus transceiver circuitry required to interface with classic Data Highway Plus (DH+), Remote I/O (RIO), or serial communication channels.

Deterministic Performance

The board handles core ladder logic instruction rungs with a strictly timed, cyclic scan pattern. This structure prevents signal drift across dense multi-axis configurations, ensuring critical input-to-output propagation delays remain inside predictable windows.

Environmental Hardening

Designed for harsh plant-floor setups, the board features specialized trace spacing and industrial-grade solder masking to resist heavy vibration, airborne particulate buildup, and typical thermal shifts in closed control enclosures.

Frequently Asked Questions

• Q: Can the 80190-380-02-R board be hot-swapped into a chassis while power is applied?
  • A: No. The 80190-380-02-R is an internal circuit board assembly, not a front-access pluggable I/O module. Removing or inserting this board while the chassis or system power is turned on will cause immediate electrostatic damage to the onboard microprocessors and void system warranties.
• Q: How does this board preserve user application code if power is completely lost?
  • A: The controller board interfaces with an onboard capacitor system and a lithium battery backup connection located on the main processor housing. This maintains power to the volatile RAM registers while the main system is shut down for routine maintenance.

Field Replacement & Safety Guidelines

1. Isolate Primary Input Power: Shut down the main circuit breaker feeding the PLC chassis or drive assembly. Confirm the system is fully unpowered using a calibrated digital multimeter before opening the housing.
2. Implement ESD Protections: Wear a grounded electrostatic discharge (ESD) wrist strap connected to a verified earth ground point. Handle the 80190-380-02-R board strictly by its insulated fiberglass edges; do not touch bare solder points or IC pins.
3. Document Layout & Jumpers: Before extracting the old board assembly, document any physical jumper pins or daughter-card configurations to ensure the new 80190-380-02-R matches the exact configuration of your network node.
4. Seat the Assembly: Align the board with the internal card guides inside the processor enclosure. Slide it smoothly forward until the multi-pin backplane header completely seats into the matching socket. Tighten any structural retention standoffs.
5. Reload Controller Firmware: After restoring power, use RSLogix 5 programming software to verify board health, establish node addresses over DH+/EtherNet paths, and download your backed-up .RSP industrial application file.
