  4. Allen-Bradley 2711P-T12W22D9P-B SER B PanelView Plus 7 Graphic Terminal
Sale!
  • Allen-Bradley 2711P-T12W22D9P-B SER B PanelView Plus 7 Graphic Terminal
  • 2711P-T12W22D9P-B Allen-Bradley PanelView Terminal
  • AB 2711P-T12W22D9P-B
  • Allen-Bradley 2711P-T12W22D9P-B SER B PanelView Plus 7 Graphic Terminal
  • 2711P-T12W22D9P-B Allen-Bradley PanelView Terminal
  • AB 2711P-T12W22D9P-B
SKU: Allen Bradley 2711P-T12W22D9P-B SER B

Allen-Bradley 2711P-T12W22D9P-B SER B PanelView Plus 7 Graphic Terminal

Purchase the Allen-Bradley 2711P-T12W22D9P-B SER B operator interface featuring a 12.1-inch widescreen display and dual DLR Ethernet ports. Brand New, Original Stock with Global Shipping. Secure industrial runtime performance now.

Request a Quote

Configured for high-resolution visualization and operator touch input execution in ControlLogix and CompactLogix deterministic networks, the Allen-Bradley 2711P-T12W22D9P-B SER B (2711P-T12W22D9P-B) Operator Interface provides direct physical/electrical execution.

Hardware Specifications

ParameterSpecification
Model2711P-T12W22D9P-B SER B
BrandAllen-Bradley
OriginUSA
Weight3.4 kg
Dimensions34.0 x 38.5 x 18.0 cm
Operating Temp0 to 55 deg C
Power Consumption50 W maximum at 24 VDC
Display Size / Type12.1-inch Widescreen TFT Color
Resolution / Graphics1280 x 800 WXGA, 18-bit color
Input MechanismAnalog resistive touchscreen
Operating SystemWindows 10 IoT Core
System Memory1 GB RAM
User Memory512 MB non-volatile
Onboard Ports2x RJ45 Ethernet (DLR), 2x USB Host, 1x SD Card slot, 1x Audio Out
System PlatformPLC / PAC Integration

Profinet / EtherNet/IP Deterministic Networks and Firmware Flash Compatibility

The 2711P-T12W22D9P-B SER B relies on dual-port EtherNet/IP architecture supporting Device Level Ring (DLR) topologies to ensure network uptime during cable failures. Firmware flash compatibility determines runtime execution capabilities, matching FactoryTalk View ME application configurations with controller-level tags. This high I/O density scaling via network variables allows the human-machine interface to manage simultaneous connections to multiple ControlLogix backplanes over deterministic networks without data latency spikes.

Frequently Asked Questions

Q: How does the dual-port Ethernet interface operate in a Device Level Ring (DLR) network topology?

A: The onboard dual Ethernet ports act as an embedded network switch that supports DLR protocols. When configured in a ring topology, the hardware automatically routes data through the alternate port if a single link failure occurs, ensuring zero interruption to the real-time HMI-to-PLC communication loop.

Q: What are the primary memory limits for application storage and runtime variables?

A: The hardware contains 1 GB of system RAM for runtime data logging and screen transitions, alongside 512 MB of internal non-volatile storage for the compiled .mer application file. If data logs or alarm histories exceed this space, an external SD card must be formatted to FAT32 and inserted into the integrated slot.

Q: Does this hardware support hot-swapping or removal under power within hazardous locations?

A: No. External connections, including the 24 VDC power terminal block, USB accessories, and the SD memory card, must never be connected or disconnected while the circuit is live unless the area is verified to be non-hazardous.

Field Installation Guidelines

  • Enclosure Cutout and Mounting: Prepare the panel enclosure cutout using standard template dimensions. Insert the terminal into the cutout, ensuring the sealing gasket is seated flat against the panel surface, then tighten the mounting levers evenly to the specified torque to maintain the IP environmental seal.
  • DC Power Wiring: Connect a regulated 24 VDC power supply to the removable three-pin terminal block. Use 0.75 to 2.5 mm SQ copper wire rated for at least 75 deg C, and verify the safety ground terminal is connected directly to a low-impedance earth ground busbar.
  • Shielding and Interface Isolation: Ground all Ethernet communication cable shields at the patch panel or switch infrastructure. Maintain a physical separation of at least 200 mm between the HMI signaling cables and high-voltage AC motor or drive wiring to prevent electromagnetic induction.
  • Thermal Management: Mount the unit vertically in an enclosure that provides adequate ventilation. Verify that internal cabinet air temperatures do not exceed the 55 deg C operating threshold under continuous full-load execution.
Tags: ,

You may also like

Sale!
Allen-Bradley 2094-BM03-S Axis Module

Allen-Bradley 2094-BM03-S Axis Module

Configured for high-performance motion control in Kinetix 6000 multi-axis drive systems, the Allen-Bradley 2094-BM03-S (2094-BM03-S Axis Module) provides direct physical and electrical execution for rotary and linear motor regulation.

Hardware Specifications

ParameterSpecification
Model2094-BM03-S
BrandAllen-Bradley
OriginUSA
Weight0.9 kg
Dimensions3.5 cm x 13 cm x 14.5 cm
Operating TempStandard industrial range
Power Consumption200 W continuous (dissipation)
Continuous Current21.2 A
Peak Current53.0 A
Power Output13.5 kW

Industrial Control System Connectivity

The 2094-BM03-S integrates into industrial control platforms by utilizing high-speed backplane bus communication protocols for real-time motion synchronization. This modular architecture facilitates I/O density scaling within the drive cabinet, which allows the system to manage complex motion feedback loops efficiently. Furthermore, the module supports firmware flash compatibility, enabling engineers to update internal logic for specific application requirements. Consequently, the drive ensures deterministic response times during acceleration, deceleration, and power threshold excursions.

Frequently Asked Questions (FAQ)

Q: Does this axis module support hot-swapping within the Kinetix 6000 power rail?A: No, you must isolate the drive system from all primary power sources and verify that the DC bus is fully discharged before you remove or insert the module to prevent damage to the backplane interface.Q: How does the module handle feedback signal integration?A: The 2094-BM03-S interfaces directly with motor feedback cables, processing auxiliary encoder signals to maintain precise position tracking and velocity regulation during operation.

Field Installation Guidelines

  • To begin with, ensure all power to the drive assembly is strictly isolated and that the DC bus voltage has dissipated to a safe level; consequently, this prevents accidental electrical discharge during handling.
  • Subsequently, mount the module onto the dedicated Kinetix power rail; furthermore, ensure that the mechanical locking tabs engage securely to provide the necessary ground contact and structural stability.
  • In addition, connect the motor feedback cables and interface wires to the front-panel terminals, ensuring that all shields are terminated at the designated ground lugs to suppress electromagnetic interference; meanwhile, verify the cable bend radius to prevent permanent fiber or conductor damage.
  • Following physical mounting, perform a thorough check of all electrical connections before applying system power; by doing so, you minimize the risk of short-circuits on the backplane.
  • Finally, confirm that the motion controller configuration matches the physical addressing and firmware version of the 2094-BM03-S to enable stable data exchange and command execution on the bus.
Sale!
The EMERSON KJ3243X1-BB2, also cataloged as the KJ3243X1-BB2 Profibus DP Interface Card

EMERSON KJ3243X1-BB2 DeltaV SIS M-Series

The EMERSON KJ3243X1-BB2 is a DeltaV M-Series Profibus DP interface card engineered for extreme industrial environments. Brand new factory-sealed units are ready for deployment with rapid global shipping. Ensure seamless network communications and update your process automation infrastructure now.
Sale!

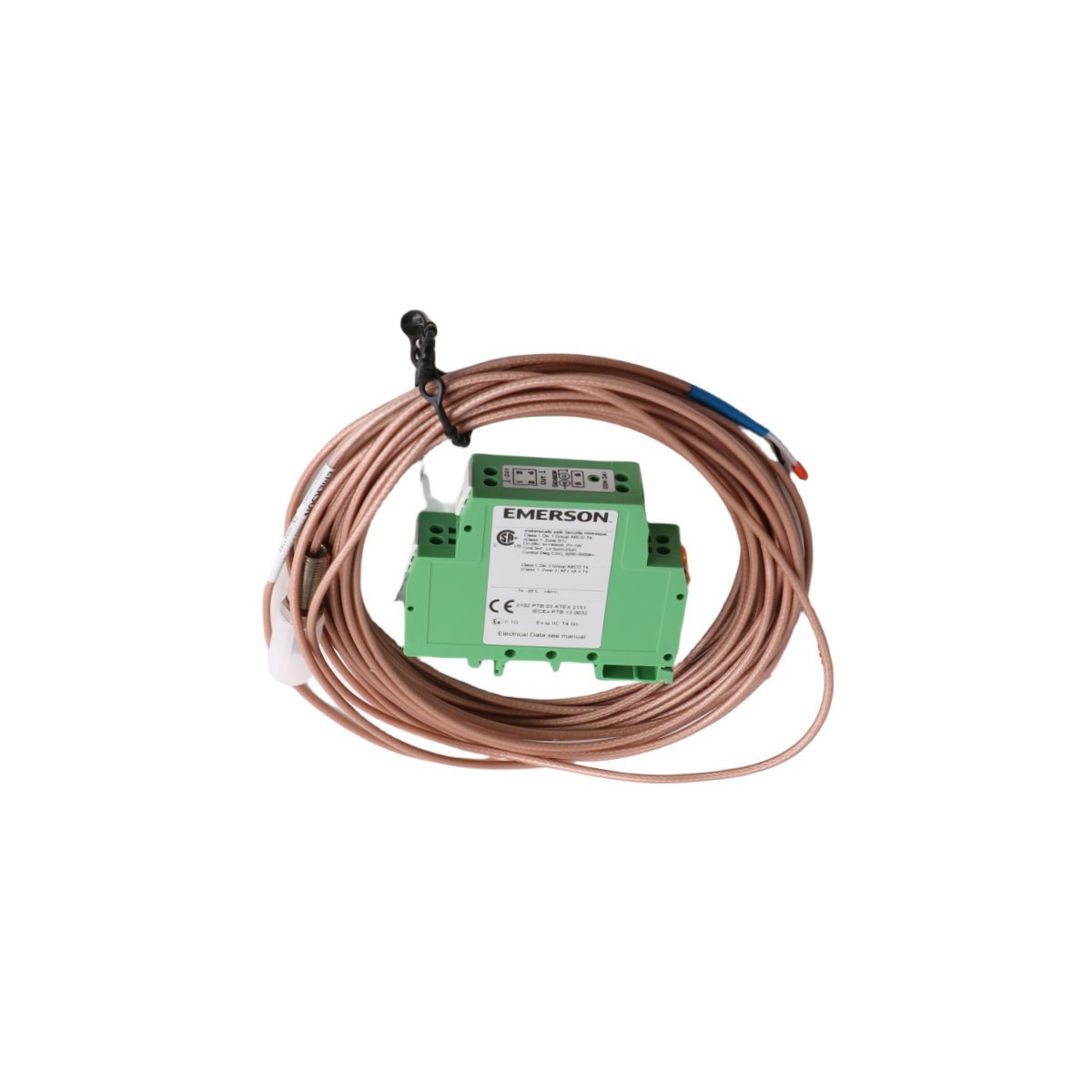

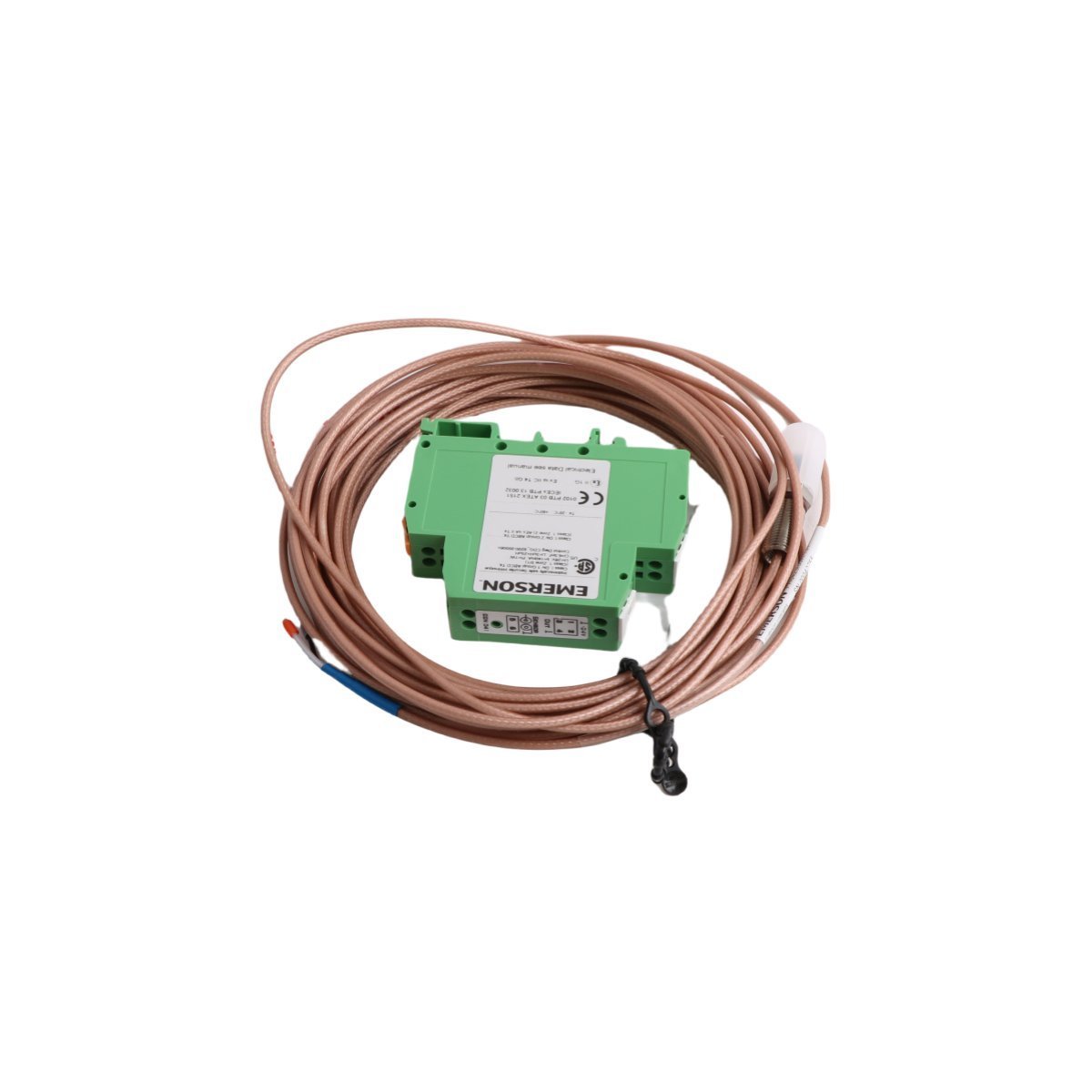

The module implements high-precision analog signal conditioning specifically mapped to eddy-current displacement criteria.
