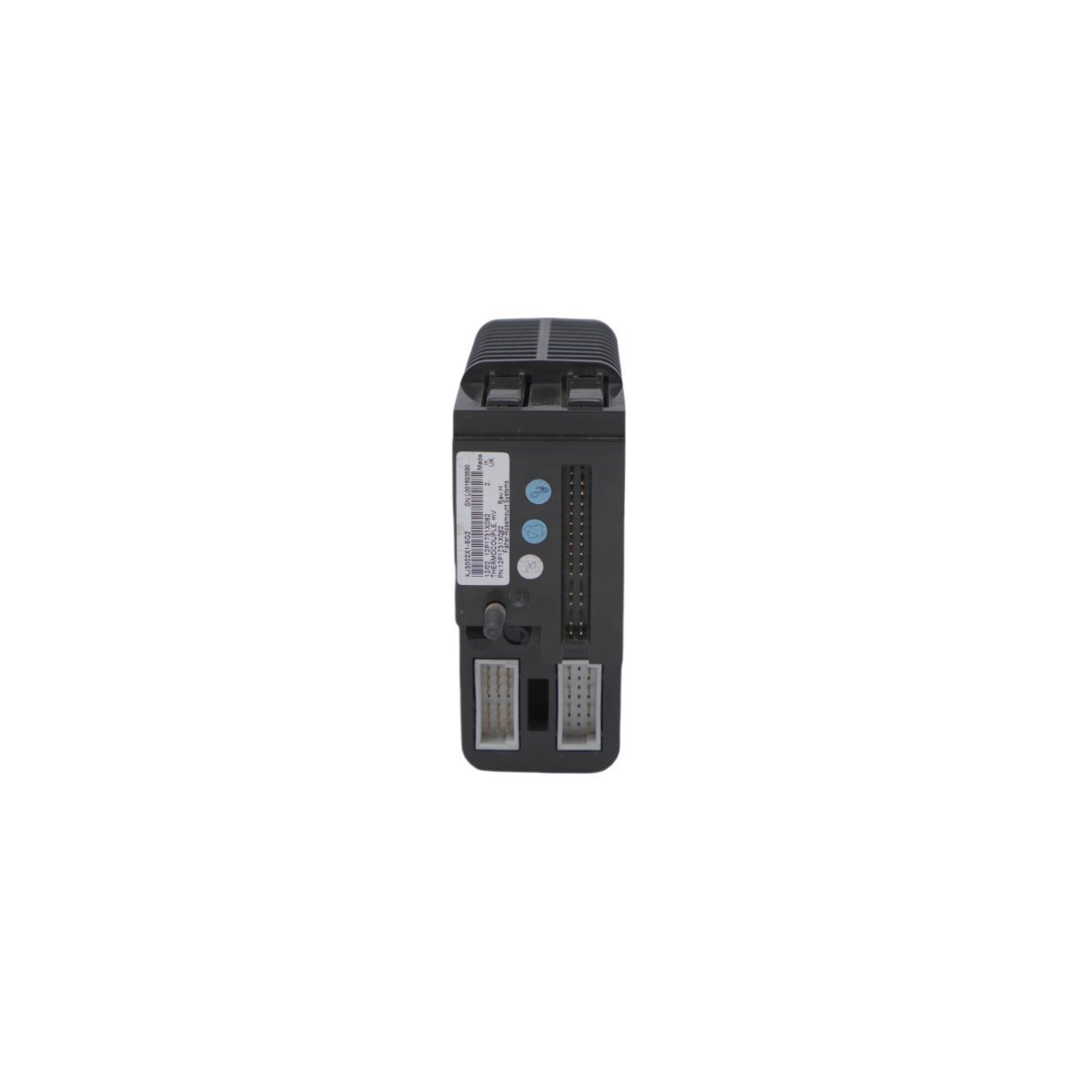

Emerson KJ3002X1-BA1 12P0680X072  VE4003S2B2 Analog Input HART Module

The Emerson KJ3002X1-BA1 serves as a high-precision interface for intelligent field devices within the DeltaV™ M-series environment. This 8-channel module captures 4-20 mA analog signals while supporting bidirectional HART digital communication. It enables the control system to access secondary process variables and advanced device diagnostics simultaneously.

Advanced Data Acquisition and HART Capabilities

This hardware integrates seamlessly with HART-compatible transmitters to enhance plant intelligence. The internal circuitry digitalizes analog loops with high resolution for superior control accuracy. Furthermore, the module passes HART device alerts directly to the DeltaV asset management software. This connectivity simplifies instrument configuration and troubleshooting from the safety of the control room.

Core Technical Characteristics

• Eight Isolated Inputs: Provides independent channels to ensure signal integrity across all field loops.
• HART Pass-Through: Supports digital command tunneling for remote instrument calibration and health monitoring.
• Signal Filtering: Employs advanced hardware filters to eliminate electromagnetic interference and process noise.
• Robust Environmental Rating: Operates reliably in extreme temperatures ranging from -40°C to +70°C.
• M-Series Compatibility: Installs directly onto standard I/O carriers for quick system expansion.
• Redundancy Support: Configures easily in redundant pairs to maximize system uptime in critical processes.

Technical Specifications
