SKU: IC694ALG392

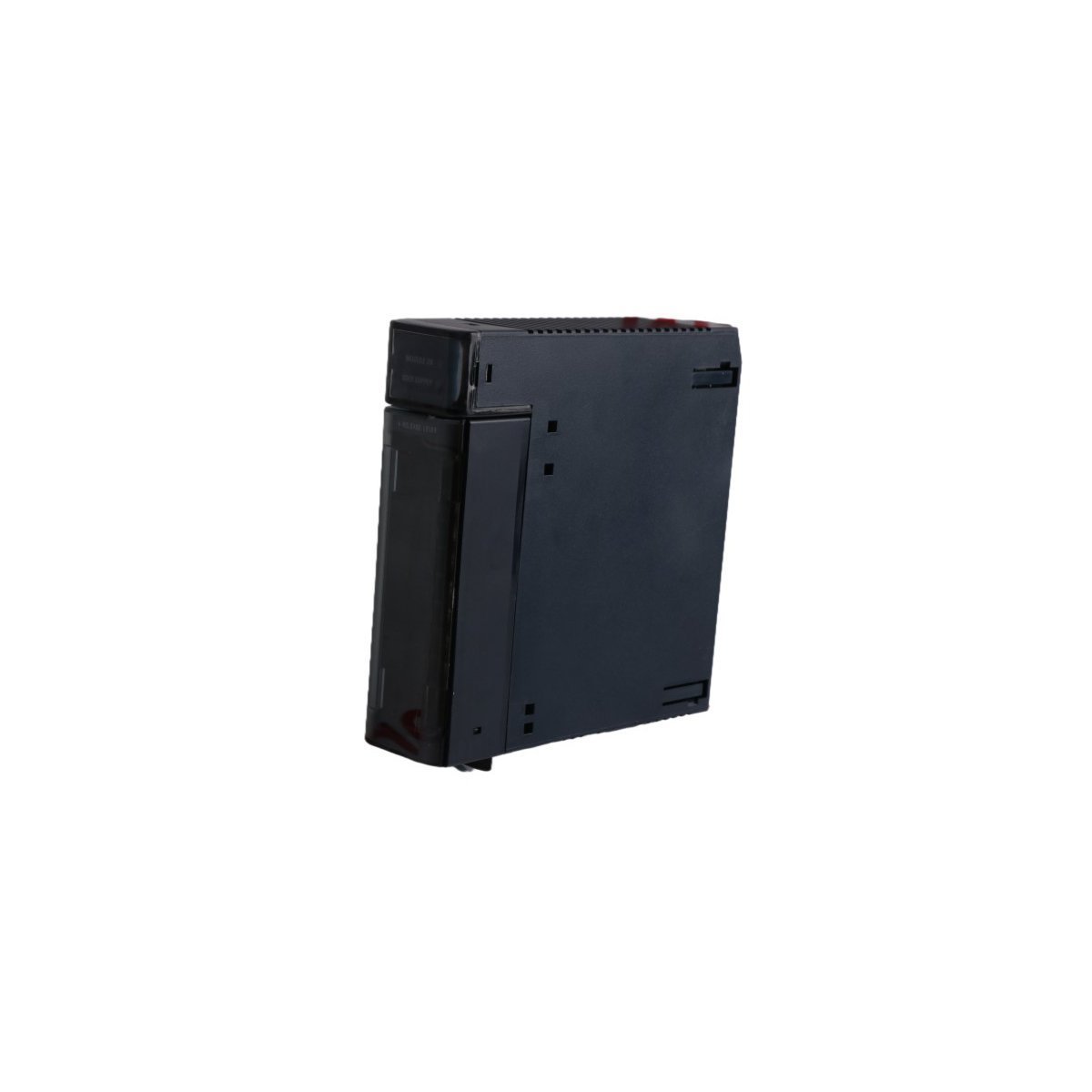

GE PACSystems RX3i IC694ALG392 8-Channel Analog Output Module

The GE Emerson IC694ALG392 is a high-density PACSystems RX3i analog output module featuring 8 independent channels. It supports voltage and current signals (±10V, 4-20mA) with 16-bit resolution, providing precise control for valves and VFDs in demanding industrial automation applications.

Product Overview

The GE IC694ALG392 serves as a high-performance analog signal interface within the PACSystems RX3i control architecture. This module converts digital processor data into precise analog signals to regulate industrial field devices such as actuators, valve positioners, and motor drives. By supporting multiple signal formats across eight independent paths, the hardware enables complex multi-variable control from a single backplane slot.

Advanced onboard diagnostics monitor the integrity of the field wiring in real-time. The module actively detects loop failures, including open circuits and power loss, providing technicians with the specific data needed to minimize system downtime. This proactive monitoring ensures that the RX3i system maintains continuous process stability in mission-critical environments.

Technical Specifications

Manufacturer: Emerson Automation Solutions (formerly GE Intelligent Platforms)
Series: PACSystems RX3i
Part Number: IC694ALG392
Output Channels: 8 Individual Channels
Signal Ranges: ±10V, 0 to 10V, 4 to 20mA, 0 to 20mA
Digital-to-Analog Resolution: 16-bit (Voltage) / 15-bit (Current)
Scan Update Rate: 8 milliseconds for all channels
Backplane Current Draw: 110mA at 5V DC
External Power Requirement: 24V DC (nominal), range 20V to 30V DC
Isolation: Group-to-backplane and group-to-frame ground
Status Indicators: LED for module health (OK) and LED for user power status
Mounting: Compatible with any RX3i Universal Backplane slot

Operational Characteristics and Functionality

The IC694ALG392 integrates several engineering features that prioritize both precision and system safety:

Individual Channel Programmability: Users configure each output independently via the programming software. This flexibility allows the module to manage a diverse array of field equipment with differing signal requirements simultaneously.
Safety Default States: The module implements user-defined “Fail-Safe” modes. In the event of a CPU stop or communication failure, each channel can either maintain its current value or transition to a predetermined safety zero.
High-Speed Processing: An 8ms update frequency facilitates rapid signal adjustments. Consequently, this module excels in high-speed PID control loops where immediate response to pressure or flow fluctuations is mandatory.
Hardware Self-Protection: Internal circuitry prevents damage from short circuits on voltage outputs and detects open-loop conditions on current outputs. These safeguards protect the internal electronics from common field installation errors.
Software-Based Scaling: The module supports direct conversion of digital counts into engineering units. This feature streamlines the development of logic for monitoring parameters such as RPM, PSI, or flow rate.

Primary Industrial Applications

The robust design of the IC694ALG392 suits it for deployment in rigorous industrial settings:

Water and Infrastructure: Managing variable speed drives for large-scale pumping stations and chemical dosing systems.
Energy Management: Controlling turbine guide vanes and modulating steam flow valves in power plants.
Manufacturing and Assembly: Driving high-precision conveyor motors and temperature regulation valves in production lines.
Chemical Processing: Operating pneumatic control valves via 4-20mA loops in sensitive refinery environments.
