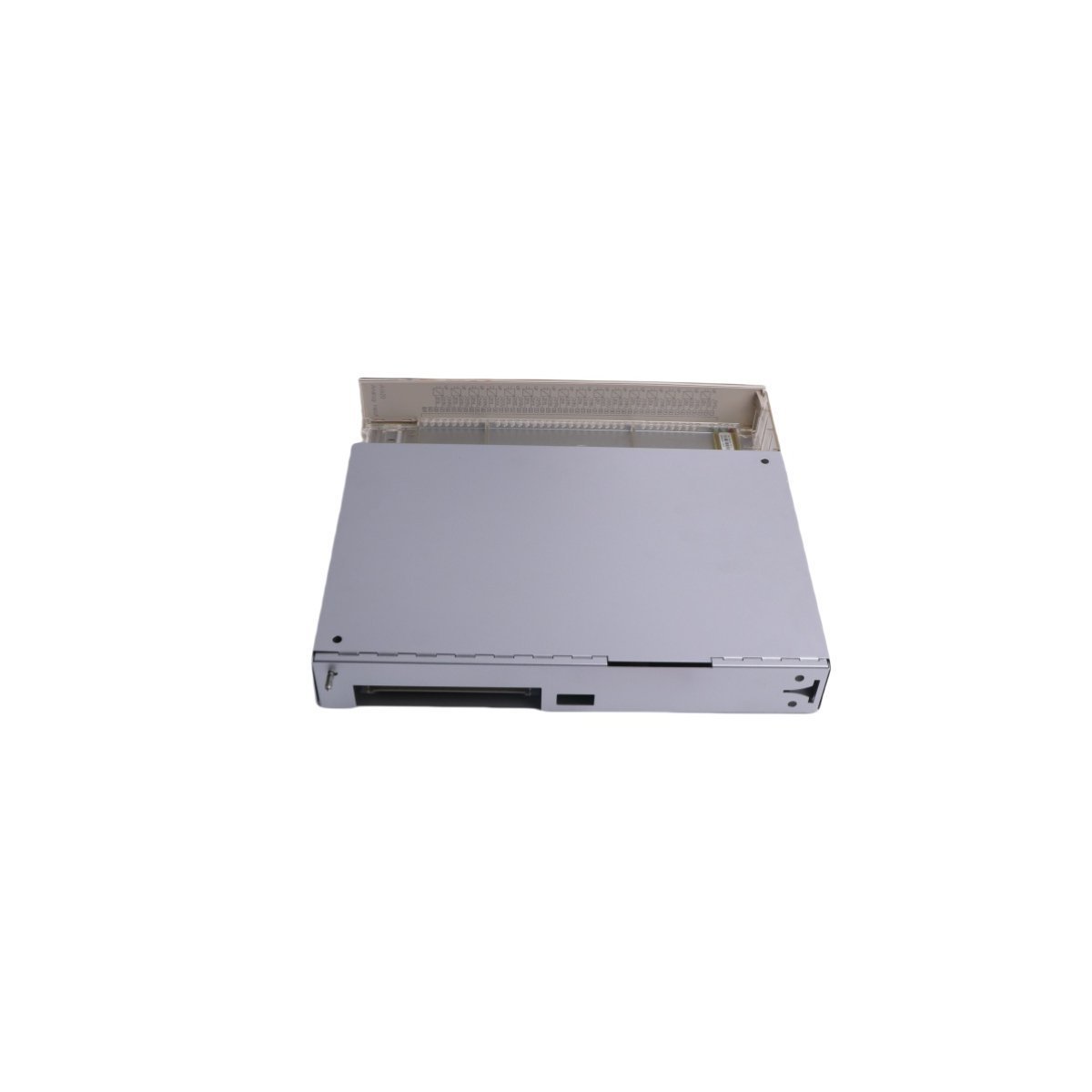

ABB AO610 3BHT300008R1 Analog Output Module

The ABB AO610 3BHT300008R1 operates as a high-density analog signal generator within the S600 I/O system. This module converts digital commands from the controller into precise electrical currents or voltages. Consequently, it enables the fine-tuned regulation of field actuators like valves and speed drives. The hardware supports 16 independent output channels to maximize rack efficiency in large-scale plants.

This interface card offers exceptional signal purity for critical industrial automation tasks. It manages standard signal ranges including 0 to 20 mA and 4 to 20 mA current loops. Furthermore, the unit provides voltage outputs typically spanning 0 to 10 V for diverse device compatibility. A high-resolution DAC ensures that control signals remain accurate to within 0.01% of the total span.

Technical Profile and Specifications

• Brand: ABB
• Model Number: AO610
• Ordering Code: 3BHT300008R1
• Device Category: Analog Output Module
• Product Family: S600 I/O
• Channel Density: 16 Analog Outputs
• Physical Weight: 1.44 kg
• Module Dimensions: 4 cm x 26.5 cm x 27 cm
• Operating Temperature: -25°C to +60°C
• Storage Limits: -40°C to +85°C
• Manufacturing Origin: Sweden
• System Integration: Distributed Control System (DCS)

Reliability and Environmental Resilience

The AO610 3BHT300008R1 features a ruggedized build to endure the stresses of heavy industrial environments. It functions reliably across a wide temperature spectrum from -25°C to +60°C. Moreover, the internal circuitry utilizes galvanic isolation to prevent ground loops between channels. This protection ensures that electrical noise from one actuator does not disrupt other control loops.

System integration remains simple due to the module’s compatibility with standard communication backplanes. The unit monitors its own health and reports channel-specific faults to the central processor. This diagnostic capability reduces the time needed for troubleshooting during process interruptions. Ultimately, the ABB AO610 provides a stable and scalable solution for modern industrial output requirements.
