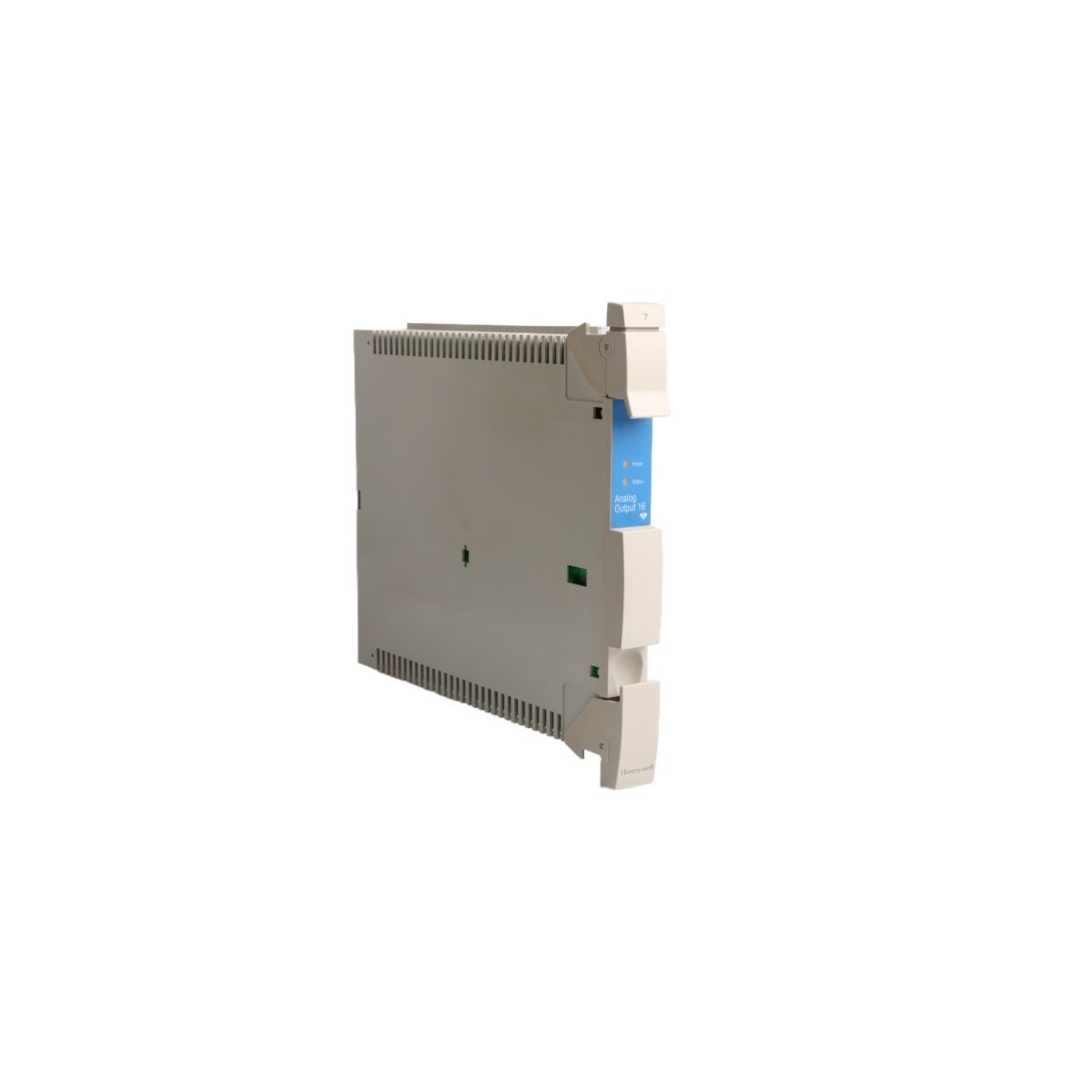

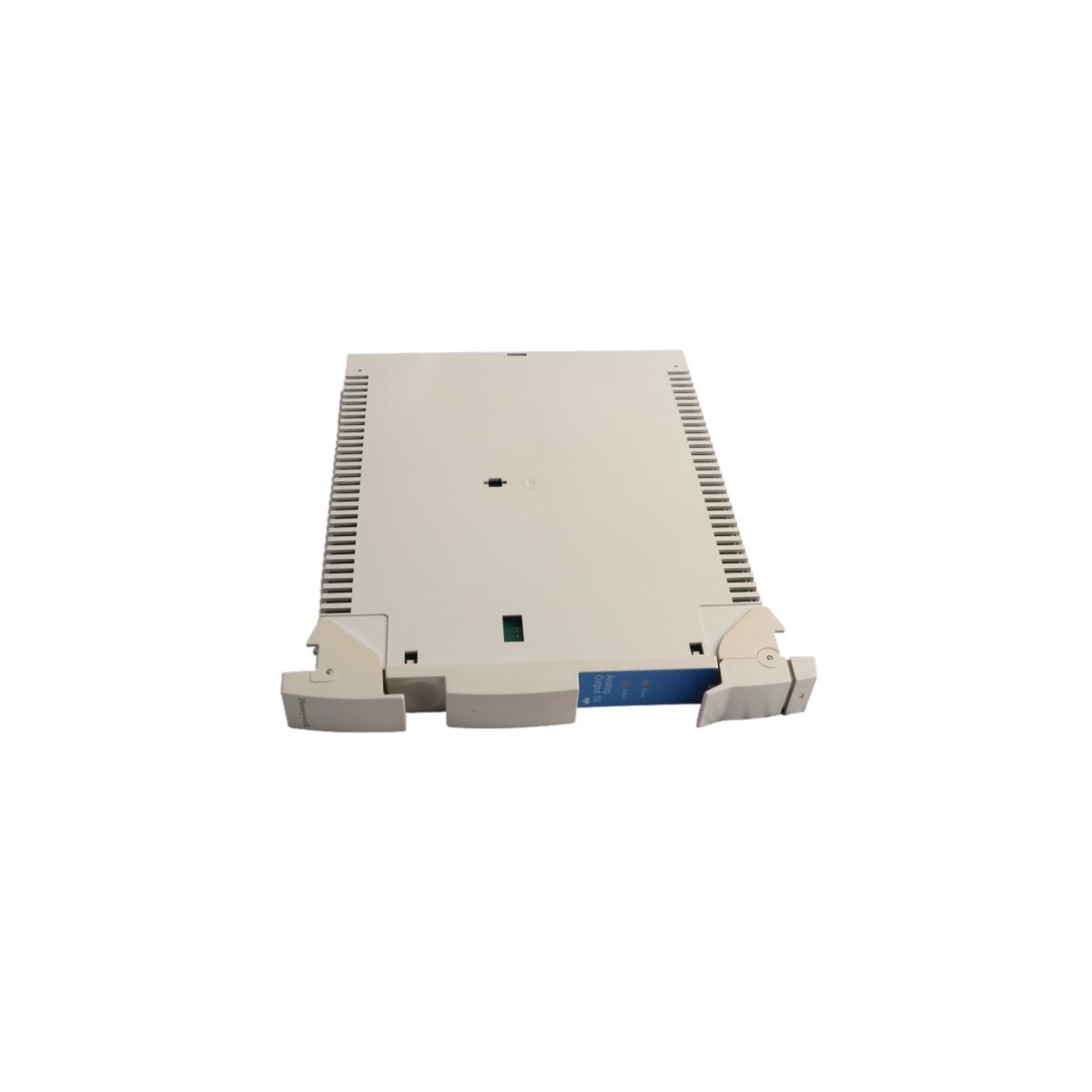

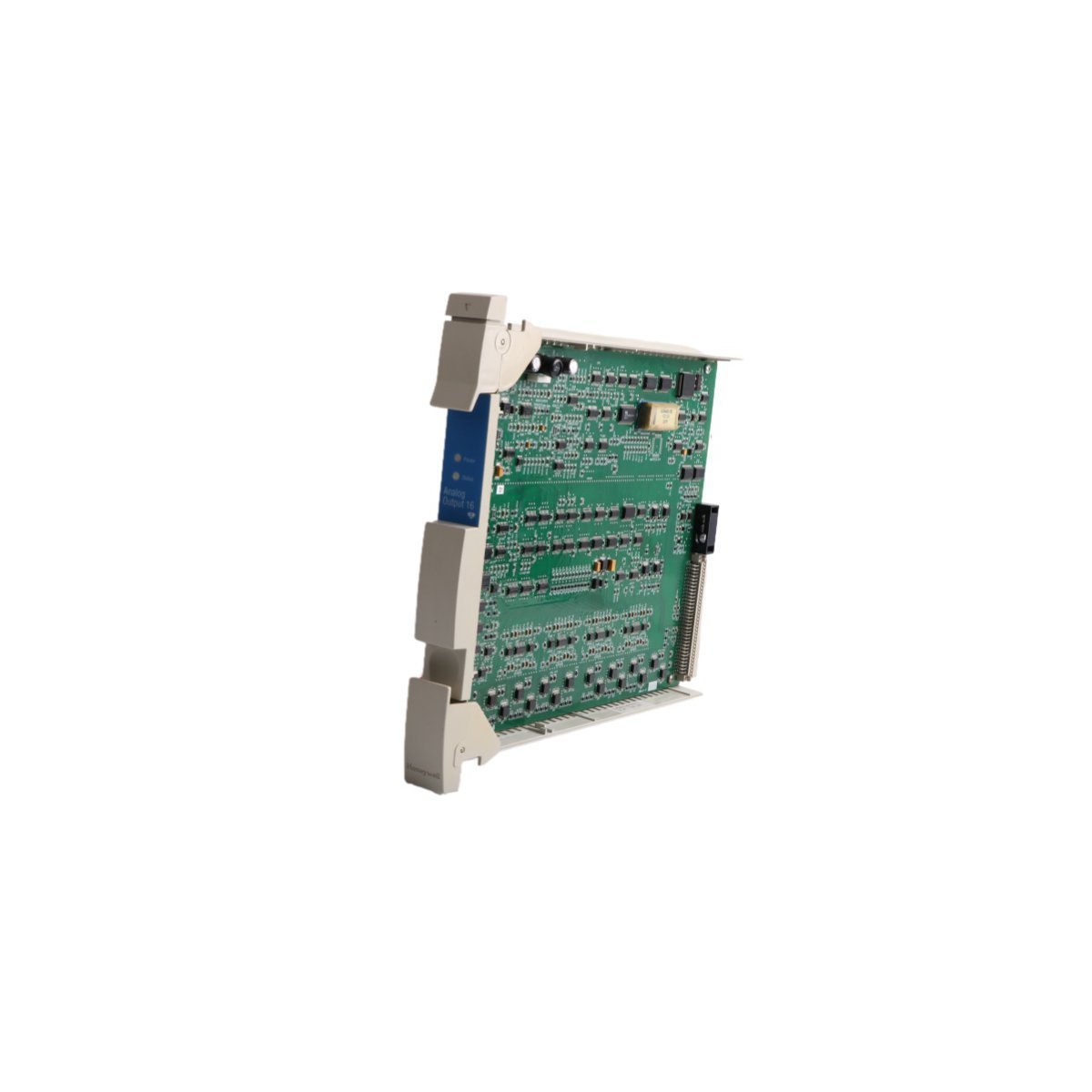

The Honeywell MC-PAOY22 80363969-176 is a 16-channel analog output processor for DCS applications. It provides high-precision 4-20mA and 0-10VDC control with 0.05% accuracy. This brand-new module ensures stable actuator regulation in critical industrial environments.
The Honeywell MC-PAOY22 serves as a high-density 16-channel processor card within the TDC 3000 and Experion control systems. This module converts digital controller commands into precise physical signals for field devices. It effectively manages critical equipment like control valves, dampers, and speed drives. By providing consistent current or voltage loops, the card ensures stable process regulation. The module acts as a vital link between the DCS logic and mechanical execution. Consequently, it maintains the precise flow and pressure levels required for industrial operations.
| Parameter | Specification Details |
| Model Number | MC-PAOY22 |
| Part Number | 80363969-176 |
| Channel Count | 16 Isolated Outputs |
| Signal Ranges | 4–20 mA or 0–10 VDC |
| Measurement Accuracy | ±0.05% of full scale |
| Signal Noise Level | 10 μVrms (High signal integrity) |
| Output Ripple | 100 mV peak-to-peak |
| Power Consumption | 10 Watts (Typical) |
| Shipping Weight | 0.58 kg |
This analog output card offers extensive field configurability for diverse automation needs. Each channel supports independent settings to match specific actuator requirements. Furthermore, the low-noise architecture prevents signal interference in crowded electrical cabinets. The processor includes on-board diagnostics to detect channel faults or loop breaks. This feature allows technicians to identify wiring issues before they impact production. Meanwhile, the robust circuit design handles back-EMF and electrical surges effectively.
Process engineers deploy the MC-PAOY22 in facilities requiring high-accuracy modulation. It performs exceptionally well in large-scale oil refineries and chemical plants. Additionally, the card controls variable frequency drives in water treatment systems. Pulp and paper mills rely on its high channel density for cost-effective installation. Because the module supports redundancy, it is suitable for mission-critical boiler controls. The unit also manages air handling systems within pharmaceutical manufacturing cleanrooms.
The compact footprint of the MC-PAOY22 facilitates easy upgrades in existing DCS racks. This brand-new module meets original Honeywell specifications for seamless hardware replacement. Every unit undergoes rigorous testing to verify signal linearity across all channels. Because it uses industrial-grade components, the card operates reliably in high-temperature environments. Standardized mounting clips ensure secure installation during mechanical vibration. These attributes collectively reduce maintenance overhead and maximize total system uptime.
The 80363969-176 card balances high performance with energy efficiency. It provides readback accuracy of ±4% for enhanced safety monitoring. The hardware delivers clean signal transmission even in electrically noisy environments. Moreover, the 0.05% accuracy rating makes it ideal for precision-driven applications. Engineers prefer this module for its combination of density and configurability. Therefore, it remains a dependable solution for modern industrial infrastructure.
