SKU: AO 3481

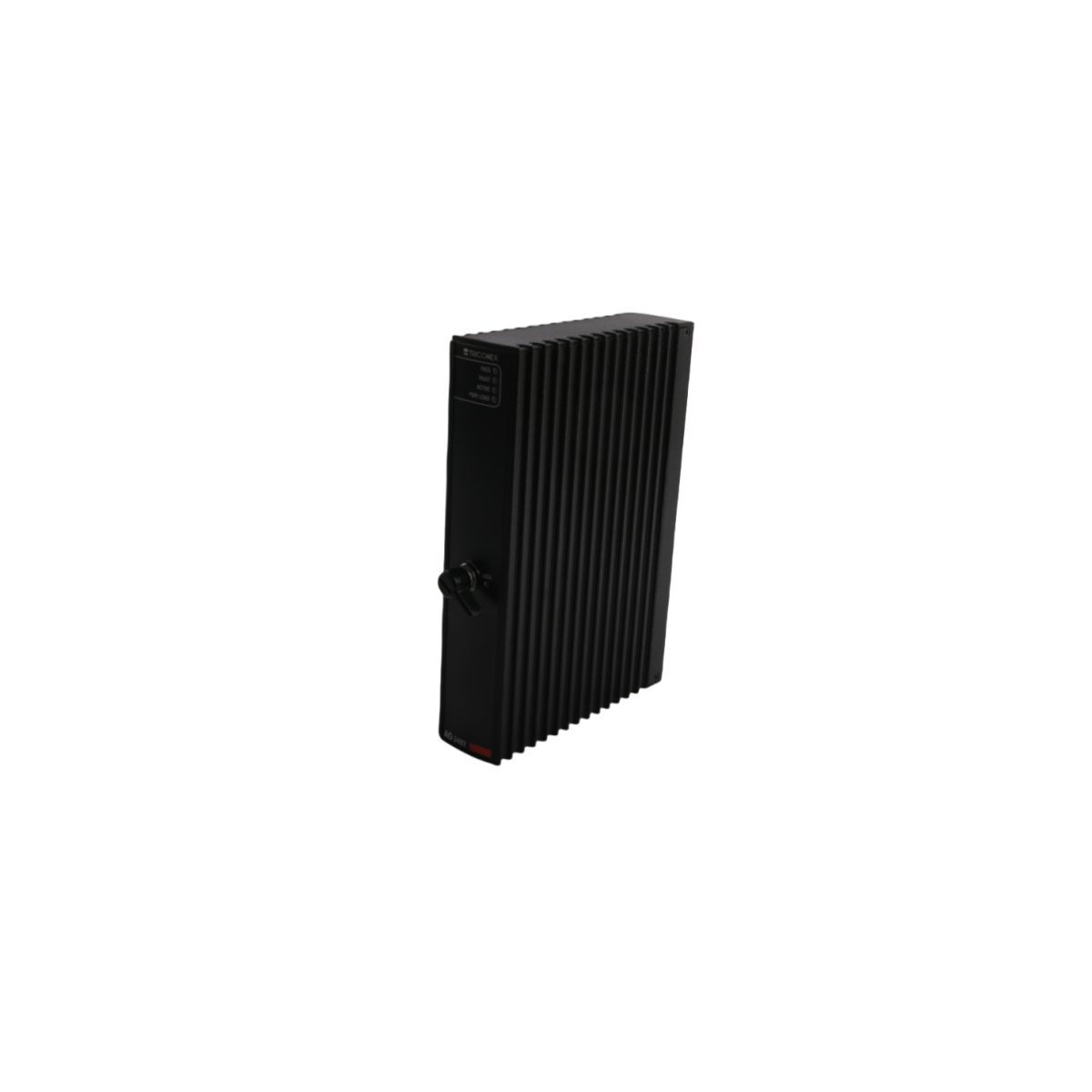

Triconex 3481 Analog Output Module

The Triconex 3481 is an 8-channel Analog Output module designed for the Triple Modular Redundant (TMR) Tricon safety system. Featuring SIL 3 compliance, high-precision 4–20 mA signals, and integrated loopback diagnostics, this module provides the fault-tolerant control required for critical actuators, modulating valves, and speed governors in industrial safety environments.

Technical Overview

The Triconex 3481 operates as a high-integrity, 8-channel Analog Output (AO) module specifically engineered for the Tricon Triple Modular Redundant (TMR) safety platform. This module functions as the execution interface for safety-critical control loops, converting digital logic commands from the processors into precise 4–20 mA current signals to drive field actuators. Because the Triconex architecture prioritizes absolute fault tolerance, the 3481 features three independent, isolated output branches that process data in parallel. By utilizing a sophisticated “voting” mechanism at the output stage, the module ensures that a failure in one internal circuit does not affect the final signal delivered to the field.

Operational Logic and Precision Control

The 3481 manages 8 isolated output channels, each designed to maintain high accuracy even in electrically noisy industrial environments. To facilitate maximum safety, the module incorporates a “dual-output” circuit design for each channel, which effectively monitors the current flowing to the load. Furthermore, the unit includes an integrated “Loopback” diagnostic feature that allows the TMR processors to verify that the actual field current matches the commanded value.

Transitioning from simple signal transmission to active monitoring, the module identifies open-circuit conditions or excessive load resistance, triggering immediate system alerts before the process is compromised. Moreover, to further increase hardware availability, the 3481 supports “Hot-Replacement” capabilities. This functionality allows maintenance personnel to swap modules without de-energizing the safety system or causing a process trip.

In addition to its high-resolution digital-to-analog conversion, the module features a specialized “failsafe” state. This parameter determines the output behavior—such as “Hold Last Value” or “Go to Zero”—in the event of a total communication loss. Consequently, this module provides the rigorous control integrity required for SIL 3 safety-instrumented systems (SIS). As a result, the 3481 remains a critical component for managing modulating valves and variable speed drives in high-stakes energy and chemical sectors.
