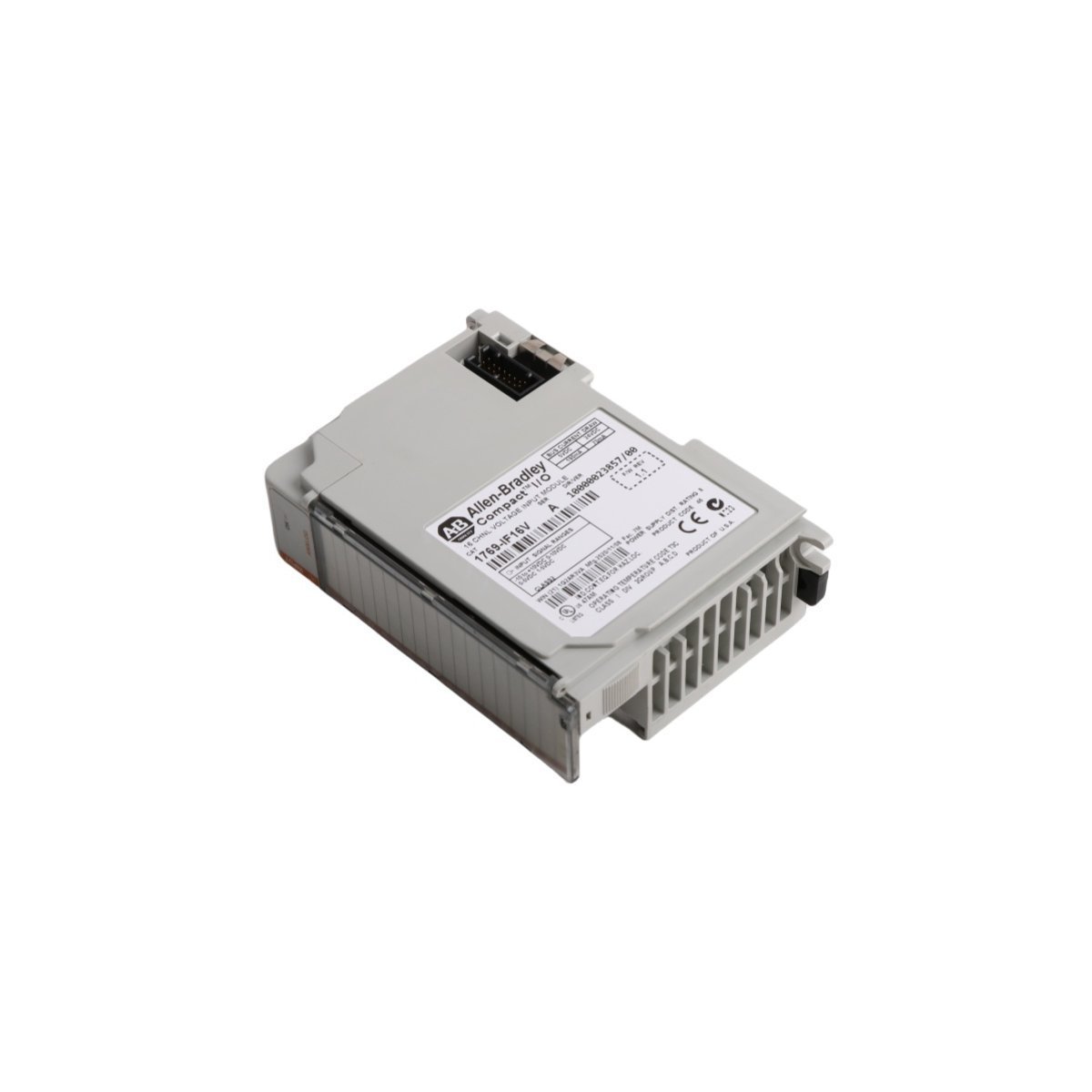

The Allen-Bradley 1769-IF4XOF2 is a CompactLogix analog module featuring 4 inputs and 2 outputs. It supports 0-10V and 0-20mA signals with 8-bit resolution. This space-saving combination unit provides reliable analog signal processing for MicroLogix 1500 and CompactLogix controllers.
The Allen-Bradley 1769-IF4XOF2 serves as a versatile analog expansion solution for CompactLogix and MicroLogix 1500 controllers. This combination module integrates four input channels and two output channels within a single compact housing. Consequently, users can manage both signal acquisition and device control while saving valuable rail space. It supports standard industrial ranges of 0 to 10V DC and 0 to 20mA for seamless system integration.
This module utilizes 8-bit resolution for both analog-to-digital and digital-to-analog conversion processes. While it targets applications where basic precision suffices, it maintains consistent performance across various industrial environments. The inputs utilize successive approximation technology to convert field data into raw integer values for the CPU. Furthermore, the hardware provides built-in noise immunity to protect signal integrity from electromagnetic interference.
The 1769-IF4XOF2 requires an external power supply to drive field-side transmitters and actuators. Each input can function in either single-ended or differential modes to suit different wiring requirements.
Process engineers typically deploy this module for non-critical monitoring tasks such as temperature and pressure sensing. Because it balances cost and functionality, it works perfectly for simple feedback loops. The module supports a maximum of eight expansion units per power supply in most CompactLogix configurations. A front-mounted LED provides immediate visual confirmation of the module status during operation.
The unit features a robust hardware design weighing approximately 290 grams. Its slim profile allows for dense mounting in small control enclosures. Additionally, the module meets CE and c-UL standards for global industrial compliance. It operates reliably within standard temperature ranges and resists common industrial vibrations. Maintenance teams appreciate the bus-style connection which simplifies module replacement without disturbing the entire I/O bank.
The Yokogawa AAI543-H53 is a 16-channel analog output module featuring HART communication for CENTUM VP systems. Designed for precise 4-20 mA control of actuators and valves, this high-density module supports dual-redundancy and hot-swap functionality to ensure maximum safety and uptime in critical DCS applications.
