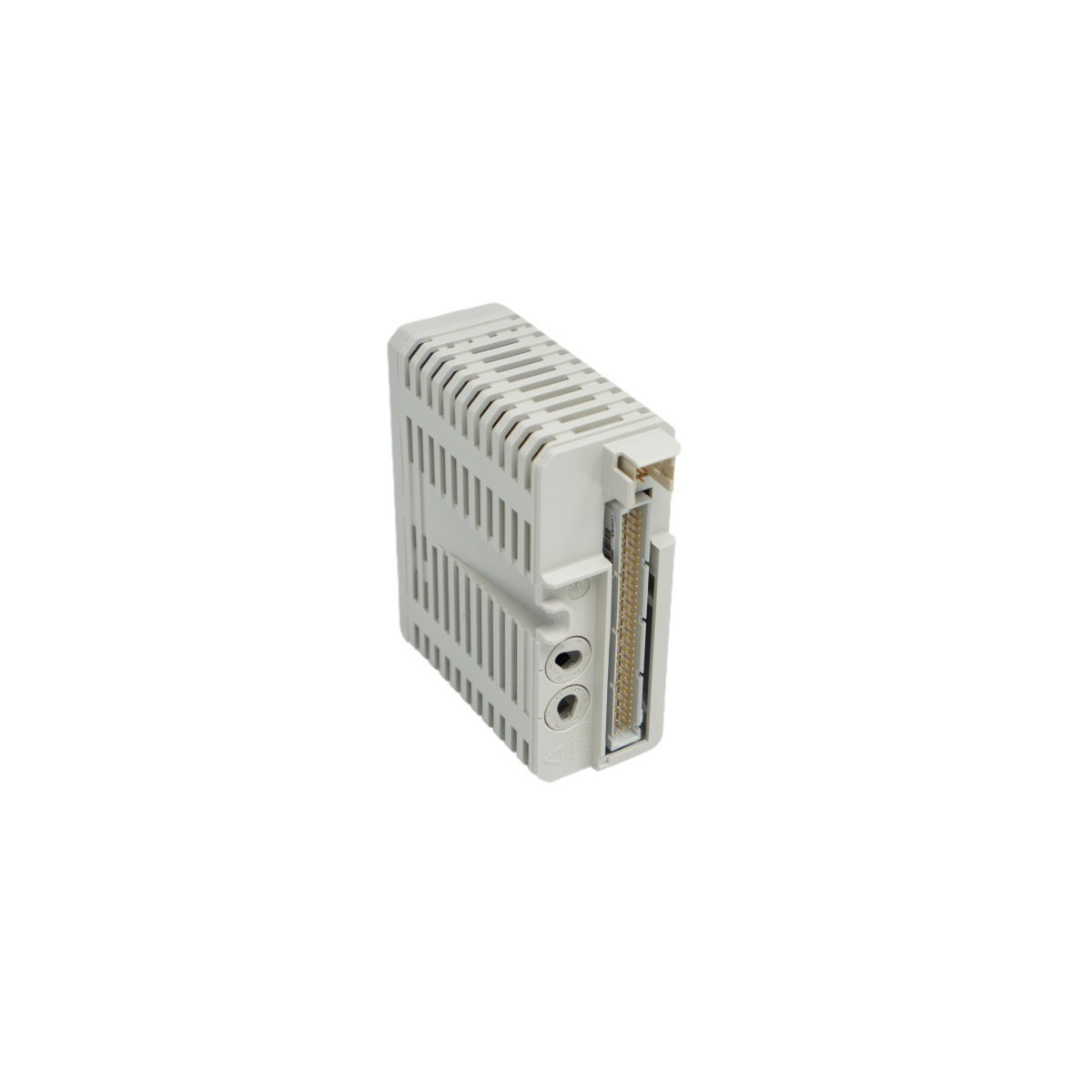

The ABB AO810V2 (3BSE038415R1) is an 8-channel S800 analog output module featuring 14-bit resolution. It provides precise 0-20mA or 4-20mA current signals for 800xA and Advant OCS systems. This Sweden-manufactured module supports high-impedance loads and ensures reliable control for industrial actuators and valves.
The ABB AO810V2 serves as a high-precision interface for the 800xA and Advant OCS control systems. This module converts digital processor commands into eight independent analog current signals. These signals typically drive final control elements like hydraulic actuators and variable speed drives. Engineers utilize this module to bridge the gap between software logic and physical field equipment.
Each of the eight channels operates with a 14-bit resolution. This ensures the delivery of granular control across the 0 to 20 mA or 4 to 20 mA range. The module maintains signal integrity even under varying electrical loads. It supports a maximum load impedance of 850 Ohms on a single channel. When all eight channels operate simultaneously, the module handles up to 500 Ohms per circuit.
This S800 I/O component requires a separate Terminal Termination Unit (MTU) for field wiring. Compatible units include the TU810, TU812, and TU814 models. The compact design allows for high-density mounting within industrial control cabinets. This vertical orientation saves significant rail space during system expansion. The module supports hot-swap functionality when paired with the appropriate backplane.
ABB designed the 3BSE038415R1 for continuous operation in harsh environments. It frequently appears in power generation facilities and chemical processing plants. The hardware meets strict RoHS standards and environmental certifications. Its robust internal circuitry protects against common-mode interference and short circuits. This reliability minimizes unplanned downtime in critical Distributed Control System (DCS) architectures.
| Feature | Specification |
| Manufacturer | ABB |
| Model Number | AO810V2 |
| Order Code | 3BSE038415R1 |
| I/O Channels | 8 Channels |
| Signal Range | 0 to 20 mA / 4 to 20 mA |
| Resolution | 14 bit |
| Accuracy | +/- 0.1% of full scale |
| Maximum Load | 850 Ohms (Single) / 500 Ohms (All) |
| Module Weight | 0.2 kg |
| Origin | Sweden |
