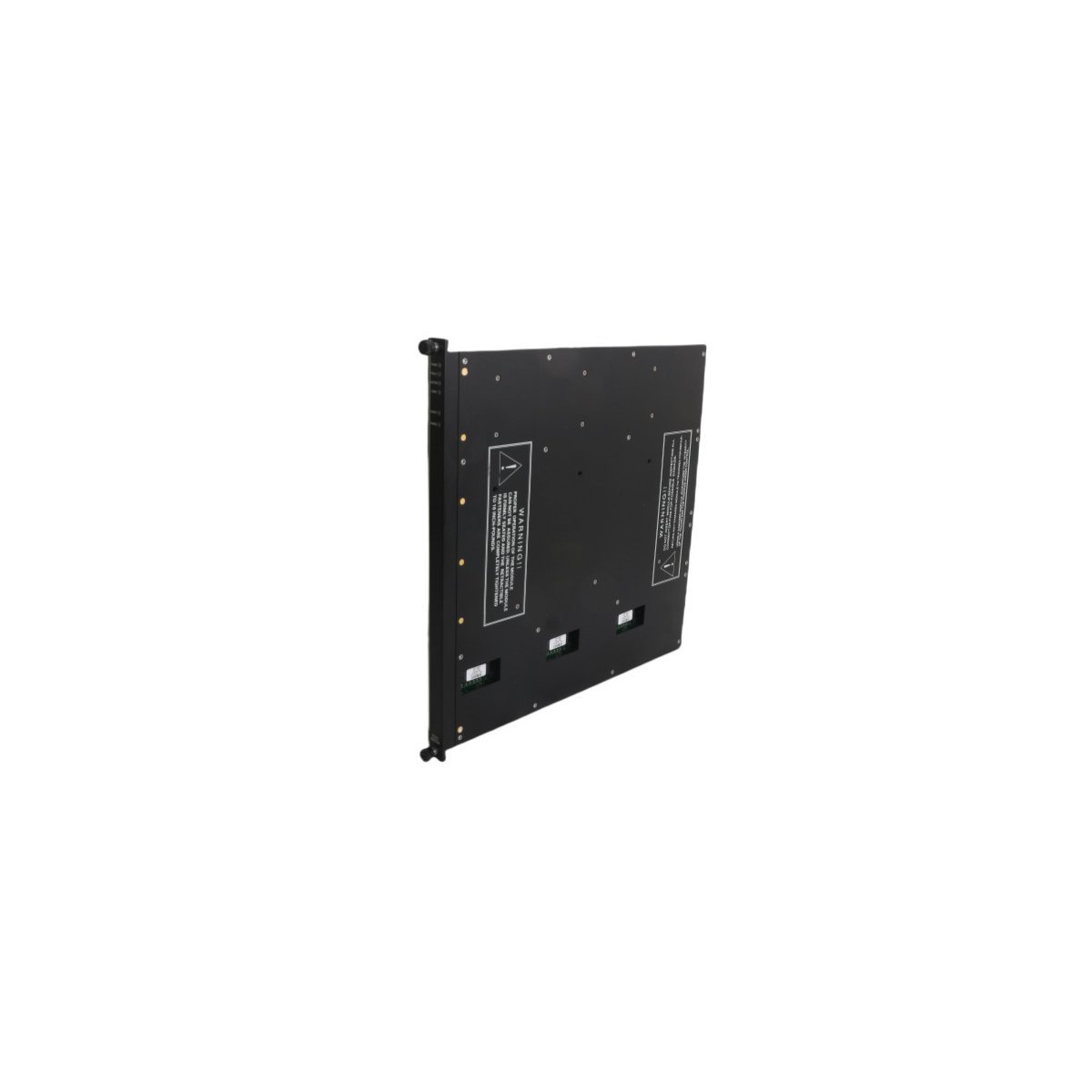

Triconex 3805E Analog Output Module

The Triconex 3805E is a SIL 3 rated, 8-channel Analog Output module designed for TMR safety systems. It provides precise 4–20 mA signal control with integrated diagnostics and hot-swap capability for critical industrial processes.

Product Description

The Triconex 3805E operates as a high-reliability Analog Output (AO) module specifically engineered for Triple Modular Redundant (TMR) safety systems. This 8-channel module drives field actuators, control valves, and other analog devices by converting digital commands into precise 4–20 mA current signals. By utilizing three independent output sub-circuits, the 3805E ensures that a single hardware failure never compromises the safety or integrity of the connected process.

Triple Modular Redundancy and Safety

This module utilizes the core TMR architecture to deliver a Safety Integrity Level 3 (SIL 3) rating. Each of the eight output channels features three separate legs that independently drive the load. An internal hardware voting mechanism constantly monitors these legs to detect and mask potential discrepancies. Consequently, the 3805E maintains continuous control even if one output leg fails, preventing spurious trips and ensuring the highest possible system availability for critical infrastructure.

Precise Process Control and Diagnostics

The 3805E excels in delivering high accuracy and repeatability for sophisticated chemical and power plant operations. It supports comprehensive loop-back diagnostics, where the module actively senses the current flowing through the field load and compares it against the commanded value. Furthermore, the module detects open-loop and short-circuit conditions in real-time. These features allow maintenance teams to identify and resolve field-side wiring issues before they escalate into process failures.

Industrial Resilience and Maintenance

Triconex constructs the 3805E with a robust physical form factor to withstand the high-vibration and high-interference environments typical of oil and gas facilities. The module supports hot-swapping, which enables technicians to replace a faulty unit without powering down the system or interrupting the process. This capability drastically reduces Mean Time to Repair (MTTR) and empowers operators to maintain continuous production during hardware maintenance cycles.
