The Siemens 6ES7135-7TD00-0AB0 is a 4-channel analog output module for ET 200iSP systems. It features 4-20 mA HART support and intrinsic safety for hazardous zones.

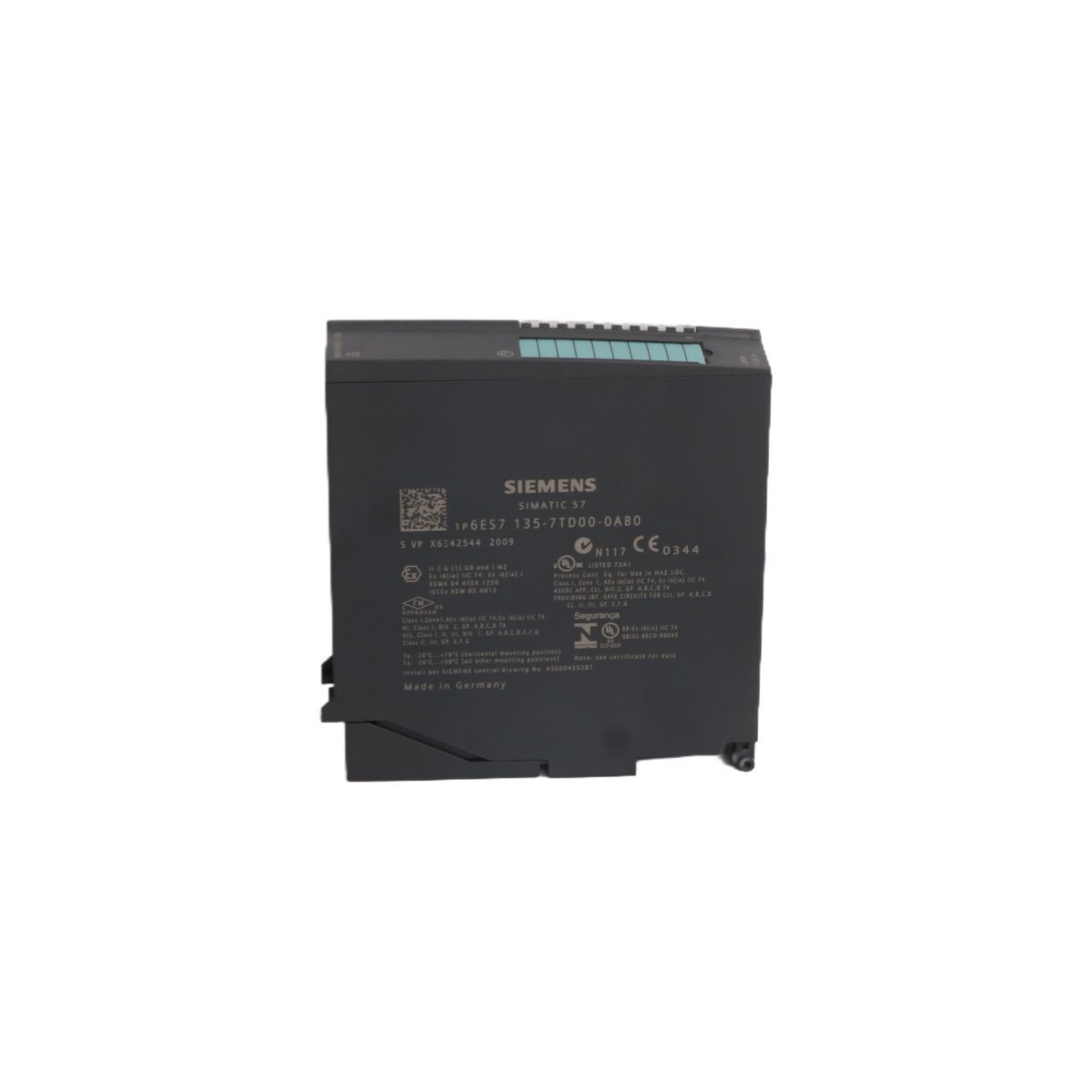

The Siemens 6ES7135-7TD00-0AB0 is a high-precision analog output module designed for the SIMATIC ET 200iSP distributed I/O station. This unit provides four isolated channels for controlling 4-20 mA field devices. It features integrated HART functionality to support bidirectional data exchange with smart instruments. Furthermore, its intrinsically safe design allows for direct installation in hazardous industrial zones. This module ensures accurate signal transmission for critical control loops in demanding process environments.
This component serves as a vital bridge between the automation system and field-level actuators. It combines robust electrical protection with advanced digital communication capabilities. Consequently, operators can monitor device health without interrupting the primary control signal. The compact housing optimizes cabinet space while maintaining high thermal stability.
| Feature | Technical Detail |
| Manufacturer | Siemens |
| Product Family | SIMATIC ET 200iSP |
| Model Number | 6ES7135-7TD00-0AB0 |
| Output Type | Analog Output (4-20 mA) with HART |
| Number of Channels | 4 |
| Resolution | 14 bits |
| Protection Rating | Ex ib (ia Ga) IIC T4 Gb |
| Dimensions | 30 x 129 x 136 mm |
| Weight | 0.24 kg |
The module fully supports HART protocol version 6.0 for enhanced device management. Each of the four channels permits parallel transmission of digital data over the analog loop. This capability allows for remote configuration and detailed diagnostic feedback from the field. Furthermore, it simplifies the integration of intelligent actuators into the SIMATIC control architecture.
Engineers designed this module specifically for use in potentially explosive atmospheres. It carries extensive intrinsic safety certifications including ATEX, IECEx, and INMETRO standards. These protections ensure safe operation in Zone 1 and Zone 2 environments. Additionally, the unit provides internal circuit monitoring to prevent energy discharge into volatile areas.
This hardware delivers high-resolution 14-bit signal conversion for superior process accuracy. It maintains low temperature drift to ensure consistent output during environmental shifts. Moreover, the module includes short-circuit and open-circuit detection for every channel. These diagnostic features help maintenance teams quickly identify wiring faults or actuator failures.
