SKU: T8480C

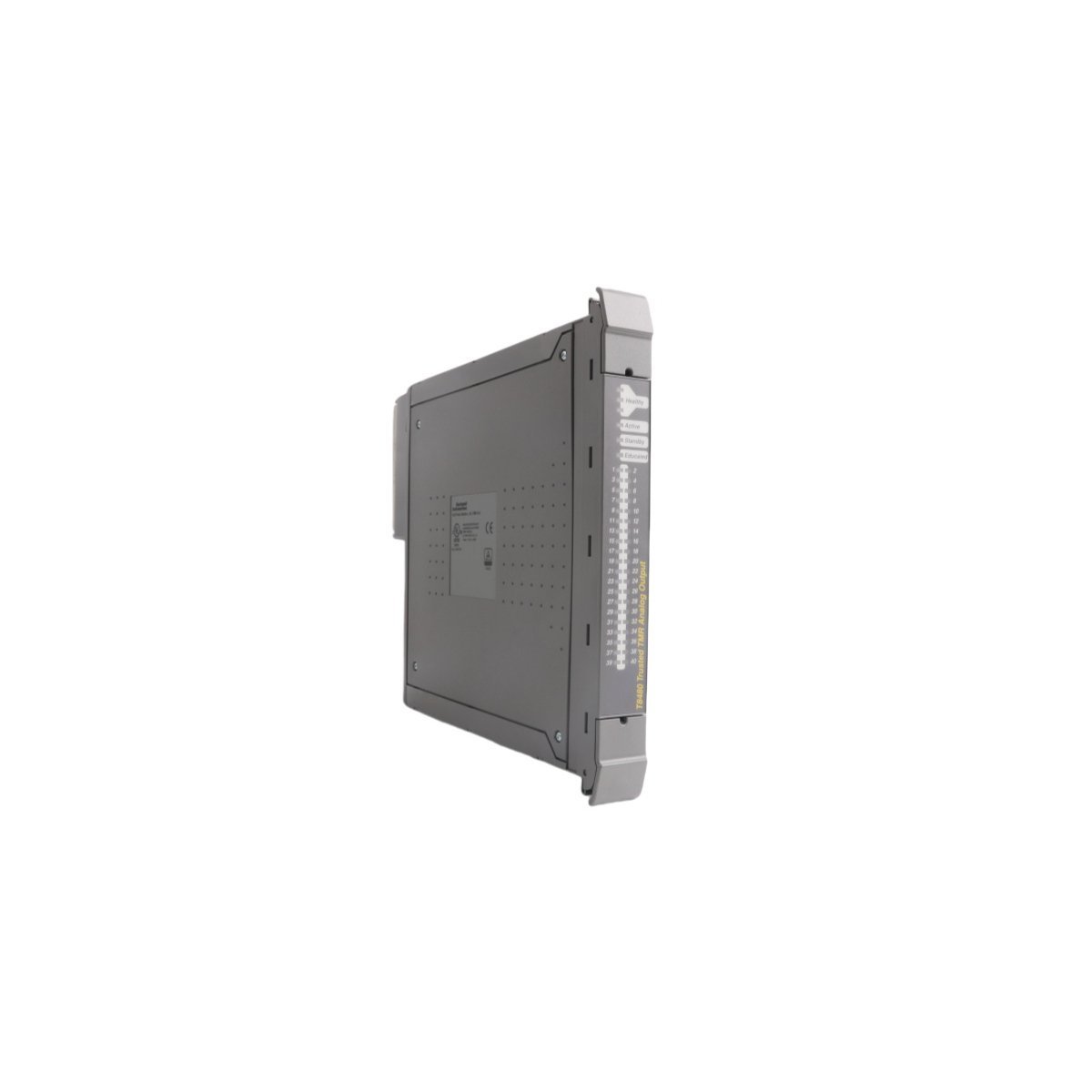

ICS Triplex T8480C Trusted TMR Analog Output Module

The ICS Triplex T8480C is an 8-channel TMR Analog Output module providing 4–20 mA control for Trusted safety systems. It features triple-redundant architecture, HART compatibility, and SIL 3 reliability for critical process control.

Technical Overview and Functional Description

The ICS Triplex T8480C is a high-availability Analog Output (AO) module engineered for the Trusted™ Triple Modular Redundancy (TMR) safety platform. Specifically, this module provides precise current-loop control signals to modulate field devices such as control valve positioners, variable speed drives, and analog actuators. By utilizing a sophisticated TMR architecture, the T8480C performs internal 3-2-0 voting on all output commands. Consequently, the system maintains total control accuracy even if a component failure occurs within one of the three internal processing paths.

Furthermore, the T8480C delivers advanced diagnostic coverage by continuously monitoring the output current and voltage on every channel. Because the module compares the actual field-side signal against the intended command, it can instantly detect discrepancies caused by wiring faults or device failures. Additionally, the module supports HART (Highway Addressable Remote Transducer) pass-through. Therefore, engineers can perform remote calibration and retrieve secondary diagnostic variables from smart field instruments without requiring separate handheld tools or additional wiring.

Moreover, the T8480C is designed for high-density safety applications where space and reliability are critical. Due to its fault-tolerant design, the module supports hot-replacement, which means maintenance personnel can swap units under power without interrupting the process loop. By integrating this module into a Trusted system, industrial operators achieve the deterministic response and low-drift performance required for SIL 3 safety-instrumented functions in oil, gas, and power generation environments.
