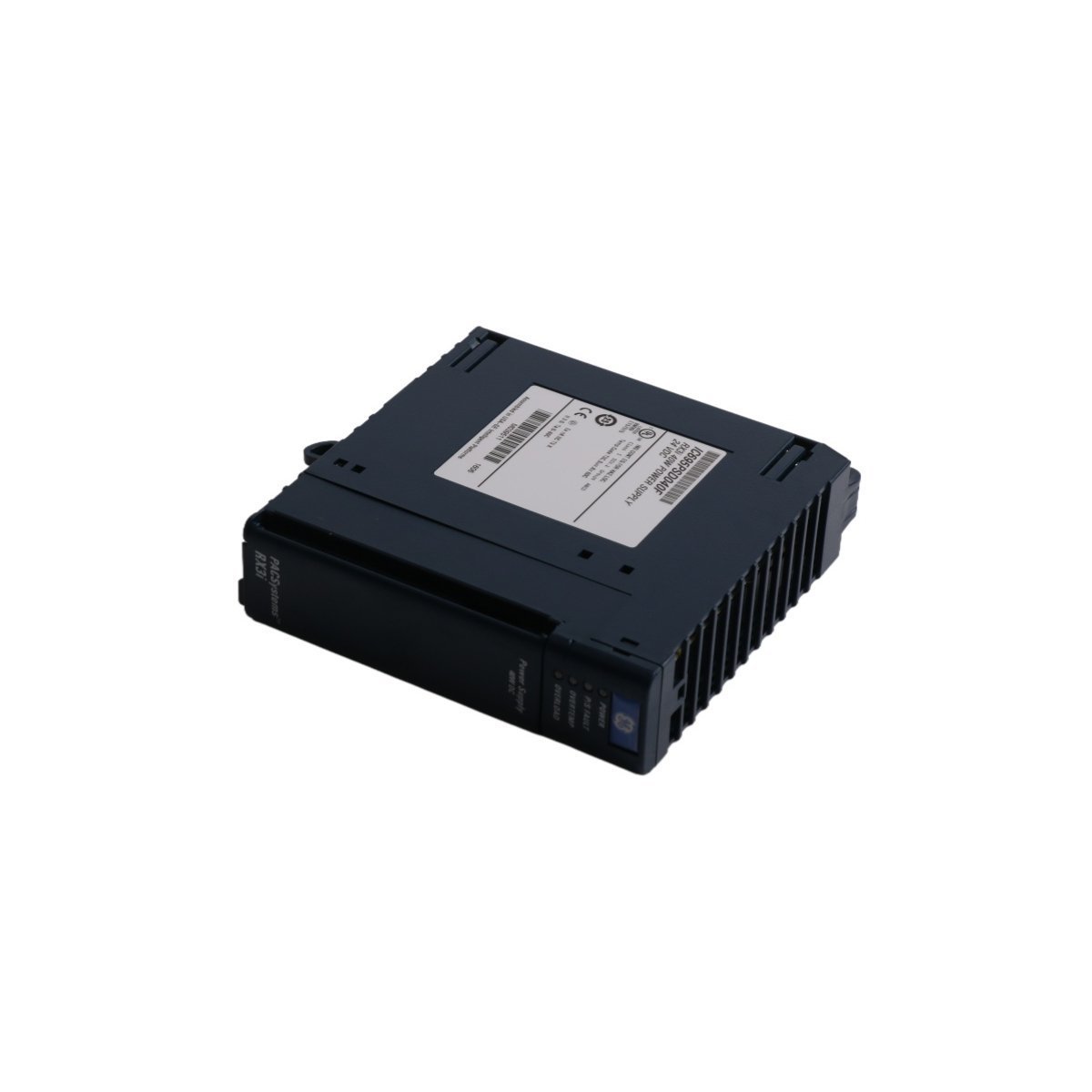

General Electric IC695PSD040F Power Supply Module

The GE IC695PSD040F is a high-efficiency 24V DC power supply module for the PACSystems RX3i series. This unit delivers 40 watts of total output power to the universal backplane. It occupies a single slot to maximize space within the control cabinet. The module accepts an input range between 18 and 30V DC to maintain system stability. Furthermore, it provides the essential voltage conversion required by sophisticated RX3i CPU and I/O modules.

Essential Technical Specifications

System Protection and Monitoring Features

This power supply integrates multiple safety mechanisms to protect sensitive downstream components. It features dedicated indicators for overload conditions and overtemperature events. Additionally, the module monitors internal faults to prevent unexpected system shutdowns. The front-panel LEDs provide immediate visual feedback on the power status. These diagnostic tools help maintenance teams identify power-related issues quickly. Consequently, the unit ensures high uptime for critical industrial processes.

Installation and Hardware Integration

The IC695PSD040F installs directly into any universal RX3i backplane via a simple plug-in mechanism. It supports a single-wire-per-terminal configuration for cleaner cable management. Technicians can use wire sizes ranging from 14 to 22 AWG for the input connections. The compact 8.2 x 12.2 x 6 cm frame allows for high-density hardware arrangements. Moreover, the universal base design ensures the module remains firmly seated during high-vibration operations.

Primary Industrial Applications

Facilities worldwide utilize this module in manufacturing and process control environments. It excels in power distribution for PLC systems in the oil and gas sector. The module also serves as a reliable power source for infrastructure and water treatment plants. Its robust USA-made construction withstands the rigors of heavy industrial use. By providing stable DC voltage, it ensures the accuracy of connected analog and digital control modules.

Key Performance Characteristics

• Wide DC input range accommodates fluctuations in field power sources.
• Built-in hardware diagnostics minimize troubleshooting time for operators.
• Optimized thermal management allows for continuous operation at full load.
• Secure terminal blocks prevent loose connections in high-vibration areas.
• Full compatibility with all PACSystems RX3i universal backplane models.
