Technical Product Overview

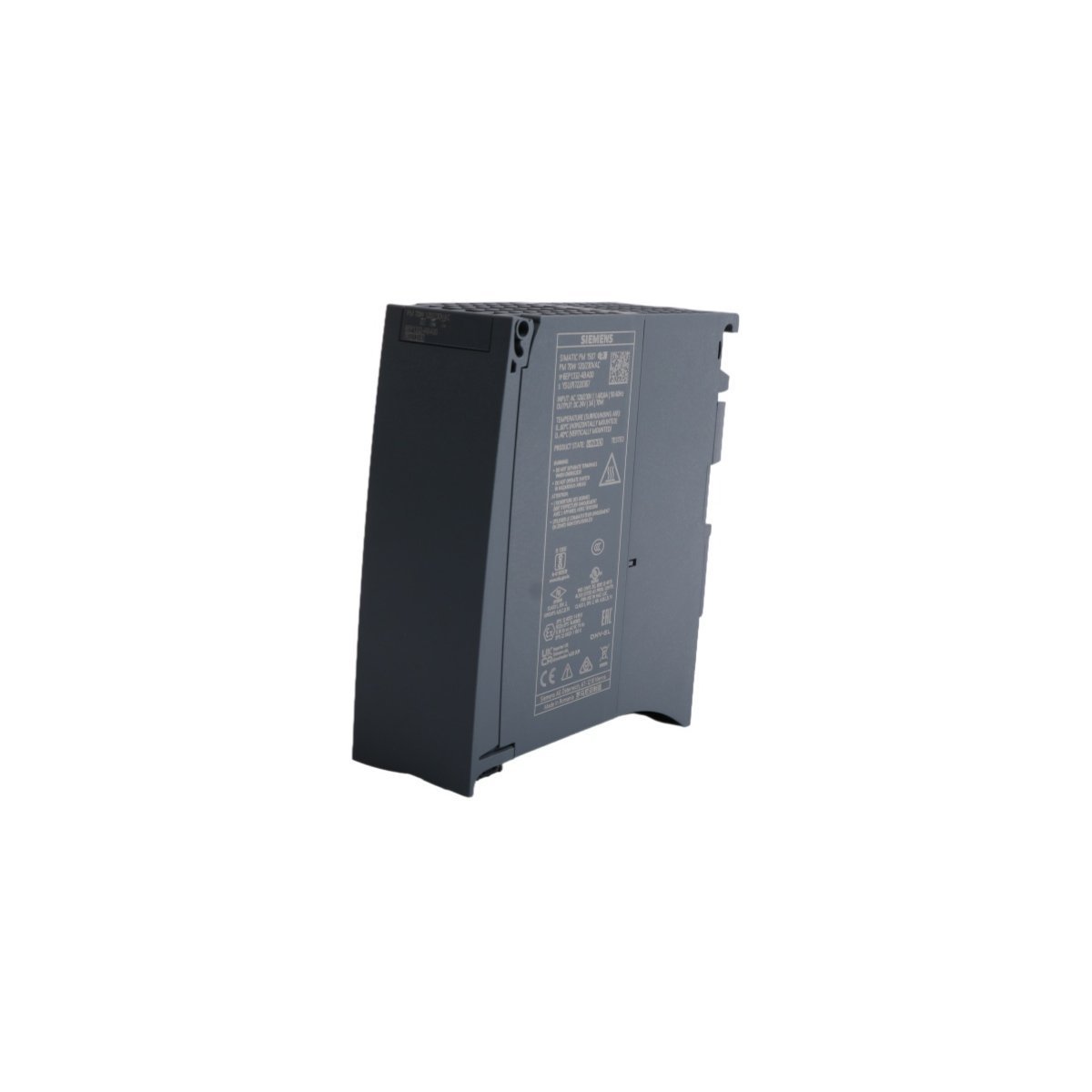

The Siemens 6EP1332-4BA00 belongs to the PM1507 series, serving as a dedicated load power supply for the SIMATIC S7-1500 PLC system. This regulated power supply converts a 120/230 V AC input into a stabilized 24 V DC output, providing the necessary energy for CPU modules, I/O circuits, and field sensors. Because Siemens designs this module to match the S7-1500 system’s form factor exactly, it mounts seamlessly onto the S7 rail, ensuring a clean and professional cabinet layout with minimal wiring effort.
Operational Characteristics and Reliability
The PM1507 power supply prioritizes system uptime through high conversion efficiency and robust protection mechanisms. It achieves a high efficiency rating of approximately 87%, which significantly reduces heat generation inside the control panel. To handle demanding loads, the module provides a power reserve that allows for 120% of the rated current for short periods during startup. Furthermore, the 6EP1332-4BA00 incorporates electronic short-circuit and overload protection, which automatically resets once the fault is cleared, preventing damage to sensitive PLC components.
Comprehensive Technical Specifications
- Manufacturer:Â Siemens
- Model Number:Â 6EP1332-4BA00
- Product Series:Â SIMATIC PM1507
- Input Voltage:Â 120 V / 230 V AC (Automatic Range Switching)
- Output Voltage:Â 24 V DC (Stabilized)
- Rated Output Current:Â 3 Amps
- Output Power:Â 72 Watts
- Efficiency:Â 87% typical
- Protection Type:Â Short-circuit, Overload, and Overvoltage protection
- Electrical Isolation:Â Primary/Secondary SELV (Safety Extra Low Voltage)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions:Â 50 mm x 147 mm x 129 mm
- Mounting:Â S7-1500 System Rail
Strategic Industrial Applications
Engineers integrate the 6EP1332-4BA00 into automation architectures where consistent power delivery is vital for data integrity. Consequently, this power supply is a standard choice for the following areas:
- S7-1500 CPU Powering:Â Provides the primary power source for the main controller and its associated backplane bus.
- Discrete Manufacturing:Â Supplies 24 V DC to high-density digital input and output modules on automated production lines.
- Machine Building:Â Serves as a compact power solution for OEM machinery where space on the mounting rail is limited.
- Control Panel Standardization:Â Facilitates uniform power distribution in multi-rack PLC systems due to its integrated design.
