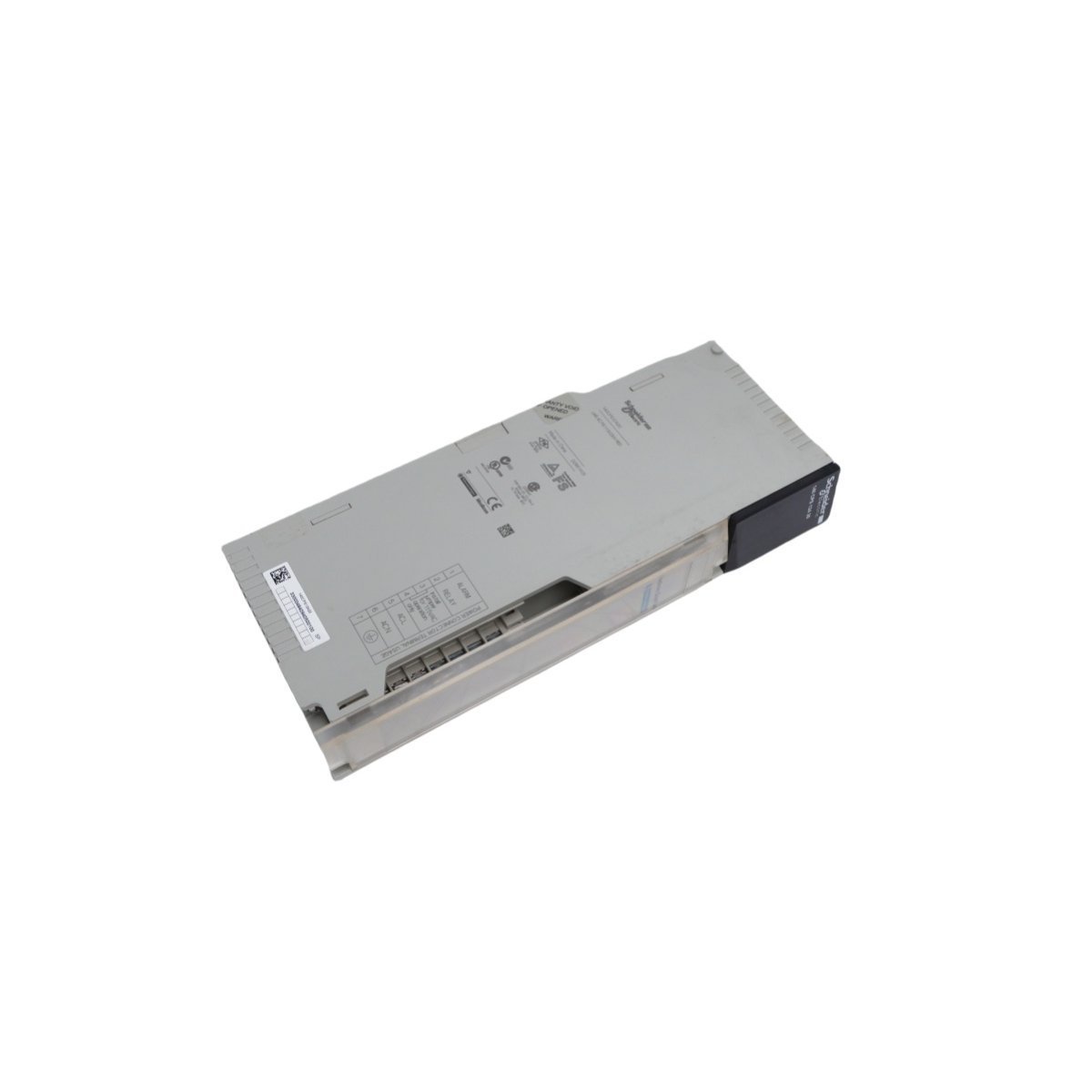

Schneider Electric 140CPS12420 Power Supply Module

Technical Overview

The Schneider Electric 140CPS12420 operates as a high-performance AC power supply module within the Modicon Quantum automation platform. This module functions as the primary energy source for the backplane, converting external alternating current into the stabilized direct current required by the CPU, I/O modules, and communication interfaces. Because the Quantum series is designed for large-scale, mission-critical control, the 140CPS12420 provides a robust 11-Ampere output capacity to support high-density hardware configurations. By maintaining a steady 5.1 VDC supply across the rack, this module ensures the operational continuity of the entire PLC system.

Power Management and System Protection

The 140CPS12420 manages energy distribution with a focus on electrical stability and fault tolerance. To facilitate global deployment, the module features a universal input range, supporting both 115 VAC and 230 VAC nominal voltages. Furthermore, the unit incorporates advanced internal protection circuitry, including overvoltage and overcurrent safeguards that shield expensive downstream logic modules from line-side transients. Moreover, since this is a “Summable” power supply, it can be used in parallel with additional modules to increase the total available current or to provide power redundancy for enhanced system reliability.

To further improve maintenance efficiency, the 140CPS12420 utilizes front-panel LED indicators to report the real-time status of the power rails and the internal battery. In addition to its primary conversion tasks, the module includes a dedicated slot for a backup battery, which maintains the application memory in the processor during a total power failure. Consequently, the system can perform a warm start without data loss once power is restored. As a result, the 140CPS12420 serves as a foundational component for high-availability control systems in the power generation, mining, and water treatment industries.

Key Technical Characteristics

• Brand: Schneider Electric (Modicon)
• Model Number: 140CPS12420
• Product Series: Modicon Quantum
• Module Type: AC Power Supply Module
• Input Voltage: 115 VAC to 230 VAC (Nominal)
• Output Voltage: 5.1 VDC (Backplane Power)
• Output Current: 11 Amps (Total Backplane Current)
• Protection: Integrated Overvoltage and Overcurrent protection
• Redundancy Support: Yes (Summable configuration supported)
• Battery Backup: Integrated slot for SRAM memory retention

Primary Applications

• Providing backplane power for high-density Quantum PLC racks in power plants.
• Supporting redundant power architectures in mission-critical water treatment facilities.
• Energizing specialized I/O and communication modules in mining automation.
• Maintaining system uptime in large-scale petrochemical refinery control systems.
• Powering centralized automation for automotive manufacturing assembly lines.
