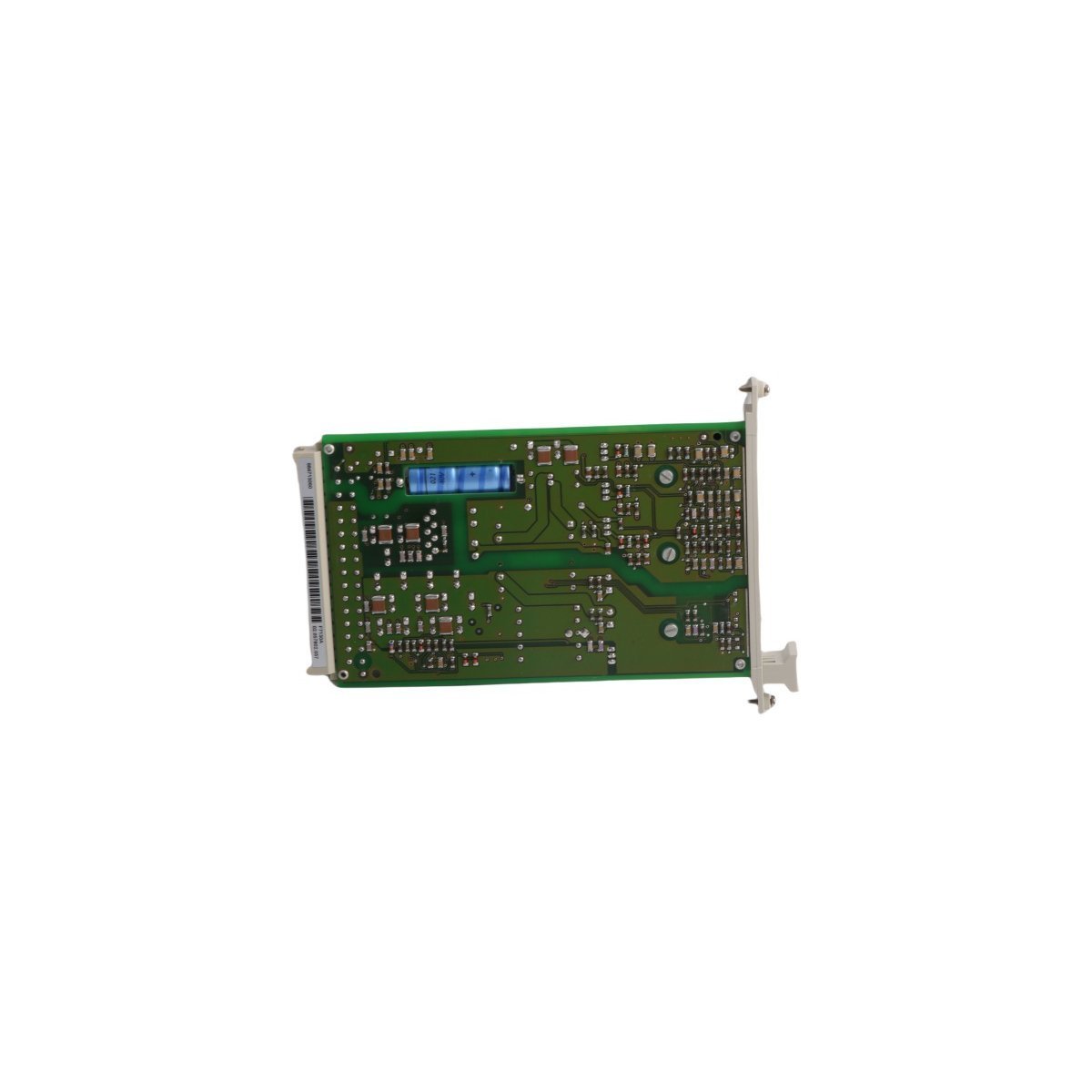

HIMA F7130A Power Supply Module for H41q/H51q Systems

Product Overview

The HIMA F7130A serves as a high-integrity power supply module specifically engineered for the H41q and H51q safety-related automation families. This module essentially functions as the energy backbone of the DCS (Distributed Control System), converting and regulating power to ensure the processor and I/O modules receive a clean, stable voltage. Because it is designed for safety-critical environments, the F7130A is built to provide continuous operation even under fluctuating industrial power conditions. Consequently, it remains a vital component for maintaining the “Always On” requirement of safety instrumented systems (SIS) in sectors like petrochemicals and power generation.

Technical Functionality

Regarding its power management capabilities, the F7130A is designed to handle a wide range of input voltages, allowing it to adapt seamlessly to various global industrial standards. In order to protect sensitive downstream electronics, the module incorporates advanced filtration and regulation circuits that effectively eliminate electrical noise and surges. Furthermore, the F7130A is equipped with internal diagnostic monitoring. These processors track the health of the power output and can immediately report voltage drops or internal faults to the central CPU for proactive maintenance.

Despite its high power capacity, the module is remarkably efficient and generates minimal heat. It operates reliably within a broad temperature range, making it suitable for installation in diverse environments—from high-heat manufacturing floors to refrigerated storage facilities. Moreover, the unit is housed in a robust IP20-rated enclosure, which ensures protection against dust ingress and typical industrial contaminants. Meanwhile, the compact 0.32kg design facilitates easy installation in space-constrained control cabinets without sacrificing thermal performance.

Key Specifications

• Brand: HIMA
• Series: H41q / H51q Safety Systems
• Module Type: Power Supply Module
• Application: Power distribution for safety racks
• Protection Rating: IP20 (Dust and splash resistant)
• Operating Temperature: Wide-range industrial rating
• Diagnostic Features: Real-time voltage and fault monitoring
• Dimensions: 2.0 x 18.8 x 12.7 cm
• Weight: 0.32 kg

Installation and Reliability

In terms of integration, the F7130A features industry-standard interfaces that allow for quick and secure connectivity to the HIMA backplane. Because the module meets stringent international safety regulations, it guarantees long-term reliability with minimal maintenance overhead. Therefore, engineers can deploy the F7130A with confidence, knowing it provides a fail-safe power foundation for their most critical control processes. Additionally, its lightweight profile simplifies the physical mounting process, allowing for rapid system assembly or field replacement.
