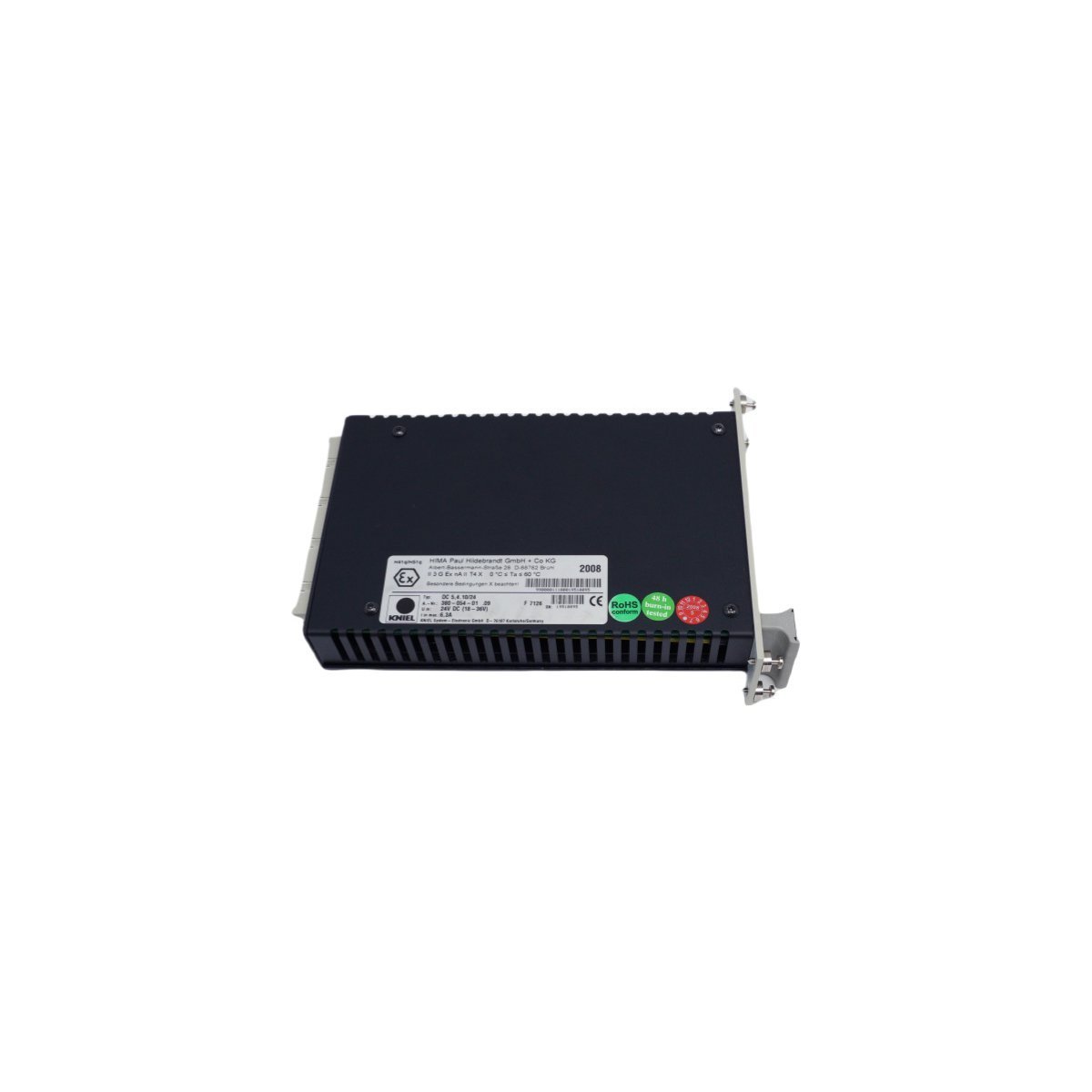

The HIMA F7126 is a robust 10 A power supply module designed for H41q and H51q safety systems. Featuring a 6.3 A integrated fuse and 220V compatibility, this German-engineered module ensures stable power delivery and overcurrent protection for critical industrial automation components.
The HIMA F7126 functions as a high-performance power supply module specifically engineered for the H41q and H51q safety-related automation series. This essential component stabilizes and distributes power across the system rack, ensuring that safety processors and I/O modules receive consistent voltage. By integrating advanced filtration and protection circuitry, the F7126 maintains system integrity within demanding Distributed Control System (DCS) architectures and safety-critical environments.
Technical Functionality and Safety Features
This module converts and regulates industrial input power to provide a steady energy source for the entire safety rack. It incorporates a dedicated 6.3 A primary fuse to offer immediate overcurrent protection, which effectively isolates the internal circuitry from external electrical faults. With a substantial output current capacity of up to 10 A, the F7126 supports extensive hardware configurations, allowing multiple high-draw modules to operate concurrently without voltage drops.
Construction: Modular plug-in design for HIMA subracks
Physical Dimensions: 40 mm x 190 mm x 128 mm
Net Weight: 0.6 kg
Compliance: CE and UL Certified for industrial safety
Origin: Germany
Industrial Applications
The F7126 Power Supply Module is a foundational element in systems requiring continuous uptime and functional safety. Professionals typically implement this module in:
Emergency Shutdown (ESD) power distribution
Reliable power sourcing for Safety Instrumented Systems (SIS)
Critical control loops in oil and gas refineries
Power management for automated burner control units
The GE IC695PSA140, also cataloged as the IC695PSA140 Power Supply Module, operates as a dedicated hardware component for power distribution and backplane bus regulation within PACSystems RX3i platforms.
Hardware Specifications
Parameter
Specification
Model
IC695PSA140
Brand
GE
Origin
USA
Weight
0.64 kg
Dimensions
4 x 21.7 x 29.1 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption / Output
40 W max output; Input: 85-264 VAC or 100-300 VDC
Backplane Bus Communication and Firmware Compatibility
The module interfaces directly with the PACSystems RX3i backplane bus, supporting high-speed deterministic data exchange and status monitoring across connected CPU and I/O modules. Firmware flash compatibility ensures that system updates can be deployed directly through the programming environment without requiring hardware replacement. Multiple power supply modules can operate in parallel on a single backplane to provide load sharing and redundancy, maintaining stable bus voltage levels during high-current transient states.
Frequently Asked Questions
Q: What is the maximum number of power supplies supported in a single RX3i rack?A: Up to four power supplies can be installed in a single rack to support high-density configurations and load sharing.Q: How does the module handle input power interruptions?A: It provides a ride-through time of 20 milliseconds during a power failure to maintain reliable output states before shutdown.
Field Installation Guidelines
Ensure the rack is powered off before inserting or removing the power supply module. Mount the module securely into two designated backplane slots, locking the top and bottom latches to ensure proper mechanical and electrical seating. Connect the AC or DC power source to the terminal block in accordance with local electrical codes, ensuring proper earth grounding to the chassis ground stud to protect against surge voltages and electrical noise.
The ABB 07KT92 GJR5250500R0262 is a high-performance central processing unit for the Advant Controller 31 series. This robust module provides reliable logic control, extensive system compatibility, and advanced diagnostics for critical industrial automation tasks.
The ABB 07NG61R1 is a dedicated power supply module for the Procontic T200 control system. It provides reliable voltage regulation and signal stability for DCS applications. This 0.8kg Sweden-made unit is essential for maintaining legacy ABB automation hardware.
The Emerson HD11010-3A is a high-frequency switching rectifier designed for 110V DC systems. It delivers 10A of stable power for substation battery charging and industrial control applications.
The Emerson 1X00024H01 WH1-2FF is a high-reliability power supply module for DeltaV SIS and Ovation systems. It provides 0.9kg of robust hardware for critical safety process control.
The ABB NPCI03 is a high-capacity power supply module for Bailey Infi 90 and Net 90 DCS systems. It delivers stabilized voltage and robust circuit protection for critical industrial automation. This Swedish-made module ensures long-term reliability and seamless integration in legacy control racks.
The ABB PS24-EX SA910S is a redundant 24 VDC power supply module for the S900 I/O system. It offers hot-swap functionality and power loss diagnostics for high-availability DCS applications.
The Triconex 8310 is a 120 VAC/VDC High Density Power Supply Module designed for the Tricon TMR system.It features integrated short-circuit protection, advanced diagnostics, and seamless RJ45 communication support. This 2.8kg ruggedized module provides the redundant, high-integrity power necessary for SIL 3 safety-instrumented systems in demanding industrial environments.
The Yokogawa PW301-S4 is a high-capacity 100-120V AC power supply module designed for CENTUM series DCS. It delivers stable 24V DC and 5.1V DC logic power with a 20ms holdup time and supports 1:1 redundancy for mission-critical industrial process control.
The Yokogawa PW481-50 S2 is a high-reliability AC Power Supply Module designed for CENTUM VP Field Control Units. Featuring a redundant, hot-swappable architecture and robust noise filtering, it ensures continuous DC power delivery for critical industrial automation and DCS applications.
The Allen-Bradley MOX720-P4668E 80026-518-01 is a high-performance power supply module designed for industrial control systems. It provides stable voltage regulation and comprehensive circuit protection to ensure the reliable operation of modular logic components. This robust, genuine Allen-Bradley unit is ideal for demanding automation environments requiring high uptime and efficiency.
The Siemens 6EP1333-3BA10 is a 5-Ampere SITOP PSU200M power supply offering wide-range 1-phase and 2-phase AC input. Featuring 150% "Extra Power" for high inrush loads and an adjustable 24VDC output, this modular PSU ensures high efficiency and robust reliability for advanced industrial automation systems.
