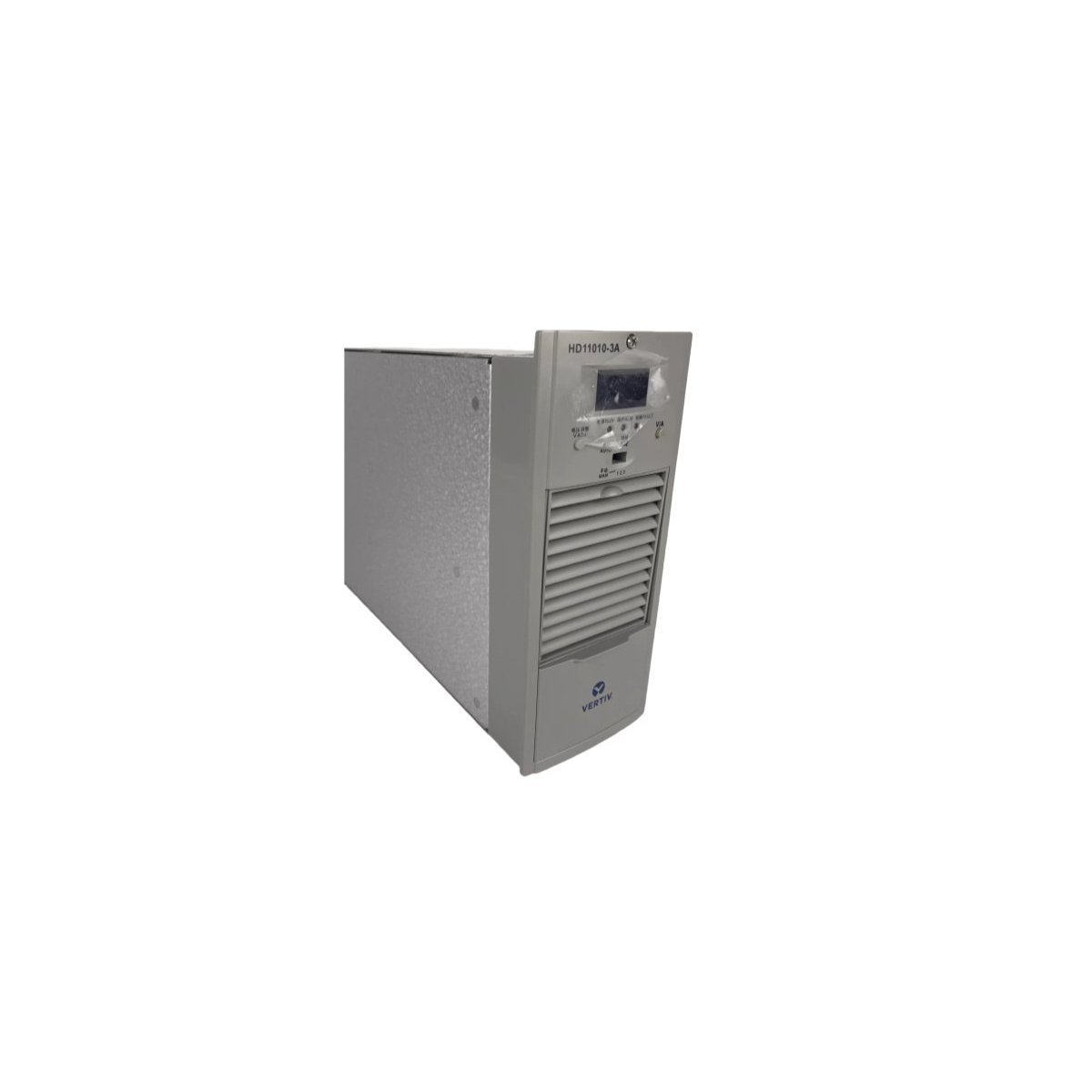

The Emerson HD11010-3A operates as a sophisticated high-frequency switching rectifier. This module primarily serves DC power systems within electrical substations. It effectively converts three-phase AC input into stable DC energy. Engineers utilize this unit for both battery charging and direct load supply. The robust design ensures continuous operation in demanding high-voltage environments. Consequently, it maintains system integrity during critical power fluctuations.
Core Operational Features
This power module employs advanced switching technology to achieve high conversion efficiency. It manages a nominal output of 110V DC with a 10A current capacity. Furthermore, the unit features intelligent control for precise voltage regulation. This accuracy helps prolong the service life of connected battery banks. The compact internal architecture allows for high power density within standard enclosures. Users benefit from the module’s lightweight design during installation and maintenance.
System Applications
Power plants and distribution centers frequently deploy the HD11010-3A rectifier. It supports various infrastructure levels from local plants to 1000KV substations. The module integrates seamlessly with Vertiv control units and monitoring systems. Because it resists electromagnetic interference, it performs reliably near high-voltage equipment. It serves as a foundational component for ensuring uninterruptible power. Many industrial facilities rely on this module for stable control bus voltage.
Technical Specifications
| Category | Specifications |
| Manufacturer | Emerson / Vertiv |
| Model Number | HD11010-3A |
| Input Voltage | 380V – 400V AC (3-Phase) |
| Output Voltage | 110V DC |
| Output Current | 10A |
| Cooling Method | Natural Cooling or Forced Air |
| Dimensions | 413mm x 110mm x 257mm |
| Unit Weight | 6.0 kg |
Protection and Reliability
Safety remains a primary focus for the HD11010-3A design. The hardware includes comprehensive protection against overvoltage and short circuits. Internal sensors monitor temperature levels to prevent thermal overload. Additionally, the module supports hot-swapping for rapid system recovery. This feature minimizes downtime during component replacements or upgrades. Proven field performance confirms its suitability for vital global energy infrastructure.
