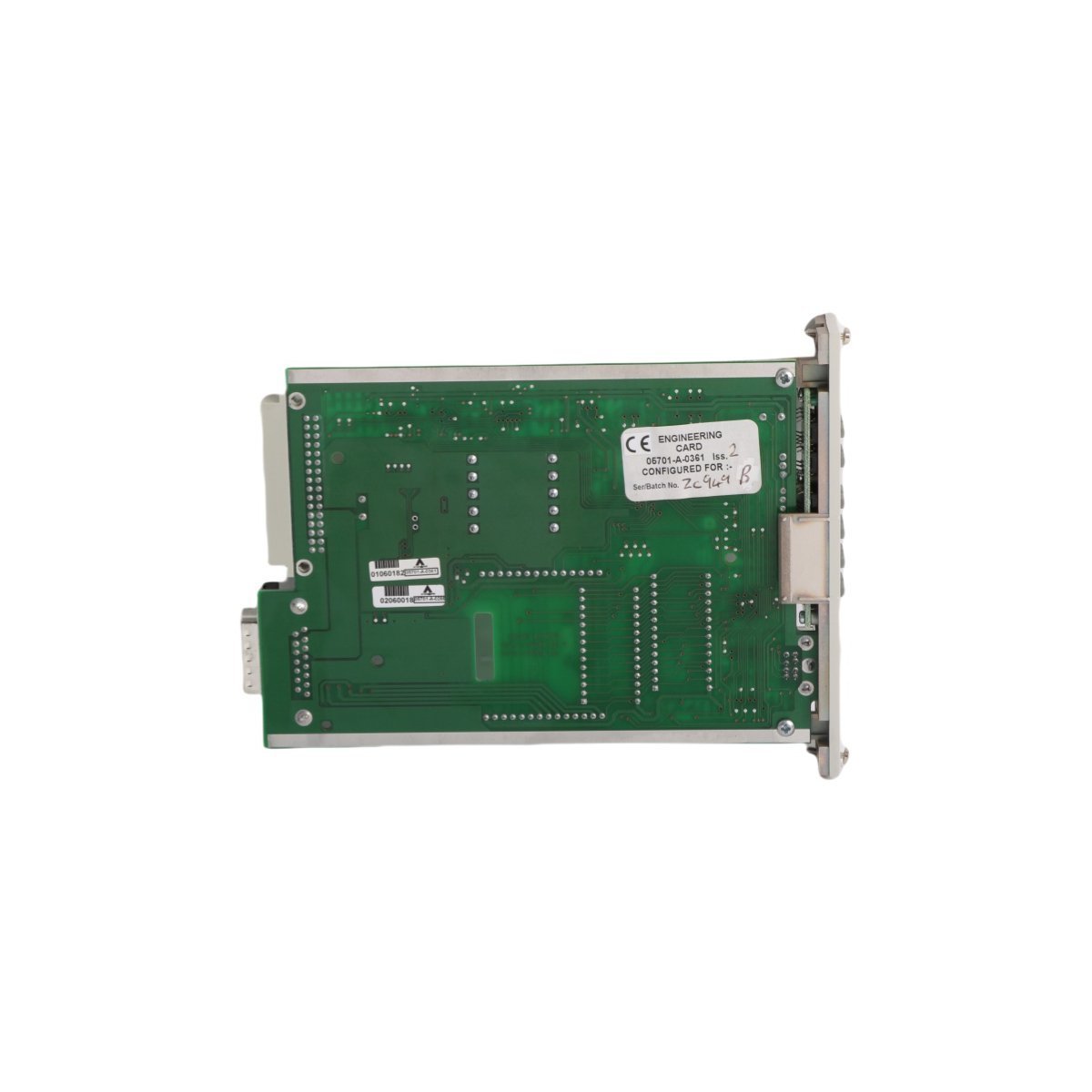

Honeywell 05701-A-0361 Analytics Engineering Card

Configured for signal analysis and processing in Experion PKS architectures, the Honeywell 05701-A-0361 (05701-A-0361 Analytics Engineering Card) provides direct electrical execution for process data monitoring.

Hardware Specifications

Process Control and DCS Connectivity

Signal integrity is primarily maintained within the DCS environment through the systematic implementation of dedicated input termination pathways. Consequently, data acquisition is facilitated by the 05701-A-0361, whereby field sensor signals are processed and subsequently routed to the control cabinet backplane. Furthermore, channel-to-channel isolation is consistently utilized so that, as a result, common-mode noise propagation is effectively prevented. In this manner, it is ensured that 4-20 mA HART loop protocol signals or discrete inputs are accurately translated. Additionally, cold junction compensation (CJC) is managed via the associated termination logic; meanwhile, loop impedance is calibrated to match specific field requirements. Moreover, data transmission is executed through standardized backplane interfaces. In addition, these interfaces are continuously monitored, thereby minimizing signal attenuation across long-distance field wiring. Furthermore, by adhering to these protocols, system stability is enhanced; likewise, operational accuracy is preserved throughout the signal path.

Frequently Asked Questions

Q: Is the 05701-A-0361 card supported for hot-swap operations within an active Experion PKS cabinet?

A: Hot-swapping is not supported. Power must be isolated from the specific backplane segment before the insertion or extraction of the module to prevent damage to the backplane communication bus.

Q: How is the physical grounding of the module managed during installation?

A: Grounding is established through the mechanical engagement of the module chassis with the cabinet backplane bus, which provides a common reference potential for signal shielding.

Field Installation Guidelines

The 05701-A-0361 must be installed within a controlled cabinet environment, observing standard industrial hardware mounting practices.

1. Mounting: Ensure the module is fully seated within the assigned backplane slot. Secure the module using the integrated retention mechanisms to prevent mechanical displacement due to vibration.
2. Shielding: To maintain signal integrity, ensure all field signal cables utilize shielded twisted-pair conductors. Terminate cable shields at the designated chassis ground busbar to mitigate electromagnetic interference (EMI).
3. Environmental Control: Maintain ambient temperatures below 50 deg C. If the local rack temperature exceeds defined thresholds, provide forced air ventilation to ensure optimal thermal dissipation for the internal circuitry.
