  3. I/O Modules
  4. Honeywell 51202329-302 I/O Link Cable
Sale!
  • Honeywell 51202329-302 I/O Link Cable
  • Honeywell 51202329-302 I/O Link Cable
SKU: 51202329-302

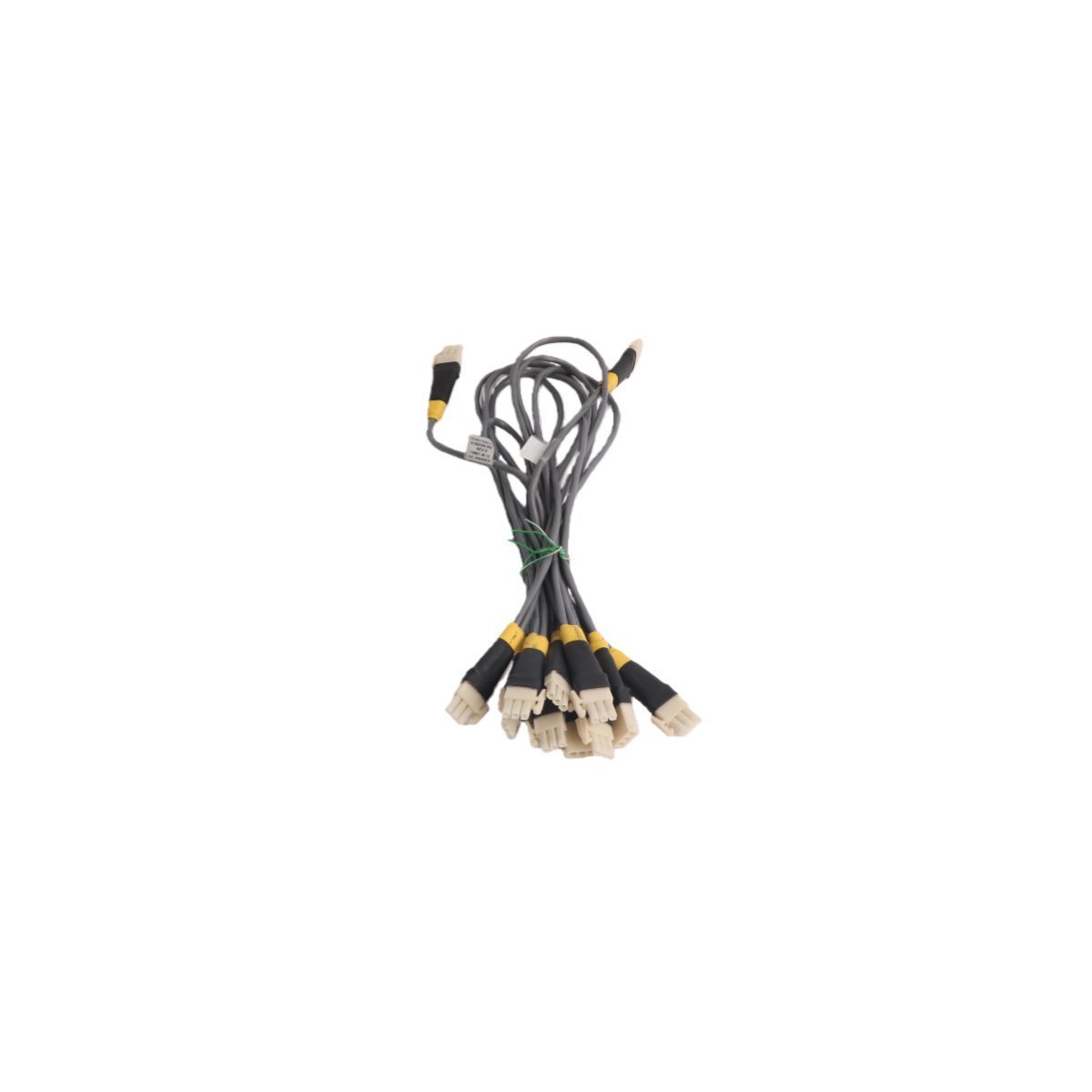

Honeywell 51202329-302 I/O Link Cable

Honeywell 51202329-302 I/O Link Cable. Brand New, Original Stock. Global Shipping. Series C DCS cable for HART protocol I/O modules. Order now.

Request a Quote

The Honeywell 51202329-302, also cataloged as the 51202329-302 I/O Link Cable, operates as a dedicated hardware component for signal transmission within Experion PKS DCS platforms.

Hardware Specifications

ParameterSpecification
Model51202329-302
BrandHoneywell
OriginUSA
Weight0.4 kg
Dimensions7 x 14 x 14.5 cm
Operating TempStandard industrial range (consult manual)
Power ConsumptionPassive component
Module TypeI/O Link Cable
SystemDCS
ConditionBrand New

4-20 mA HART Loop Protocol Connectivity

This I/O Link Cable facilitates the physical connection between Series C I/O modules and field termination assemblies (FTAs). It supports the transmission of 4-20 mA HART loop protocol signals, ensuring deterministic communication between the controller and intelligent field devices. The cable assembly provides channel-to-channel isolation to mitigate ground loop interference in high-noise industrial environments. Proper signal integrity is maintained for analog inputs requiring cold junction compensation (CJC) and digital I/O circuits.

Frequently Asked Questions (FAQ)

Q: What is the maximum supported cable length for the 51202329-302 assembly?

A: The maximum supported length is determined by the specific I/O module type and signal attenuation requirements. Consult the Honeywell Series C I/O hardware reference manual for exact distance limitations.

Q: Is the I/O Link Cable hot-swappable during active DCS operation?

A: Hot-swapping I/O Link Cables is not recommended. Disconnecting or reconnecting this cable during live operation may cause signal loss or transient faults on the connected I/O module.

Q: Does this cable support redundant I/O configurations?

A: Yes, redundant I/O configurations require separate I/O Link Cables for each redundant channel. Verify the specific suffix designation matches the required redundant or non-redundant application.

Field Installation Guidelines

1. Verify the cable part number matches the system design documentation before installation.

2. Route the I/O Link Cable away from high-voltage power cables and electromagnetic interference sources to maintain signal integrity.

3. Connect the cable to the I/O module connector and secure the locking mechanism to prevent accidental disconnection.

4. Ensure proper cable bend radius is maintained during routing to prevent internal conductor damage.

5. Verify all connections are secure and perform continuity testing before energizing the I/O module.
