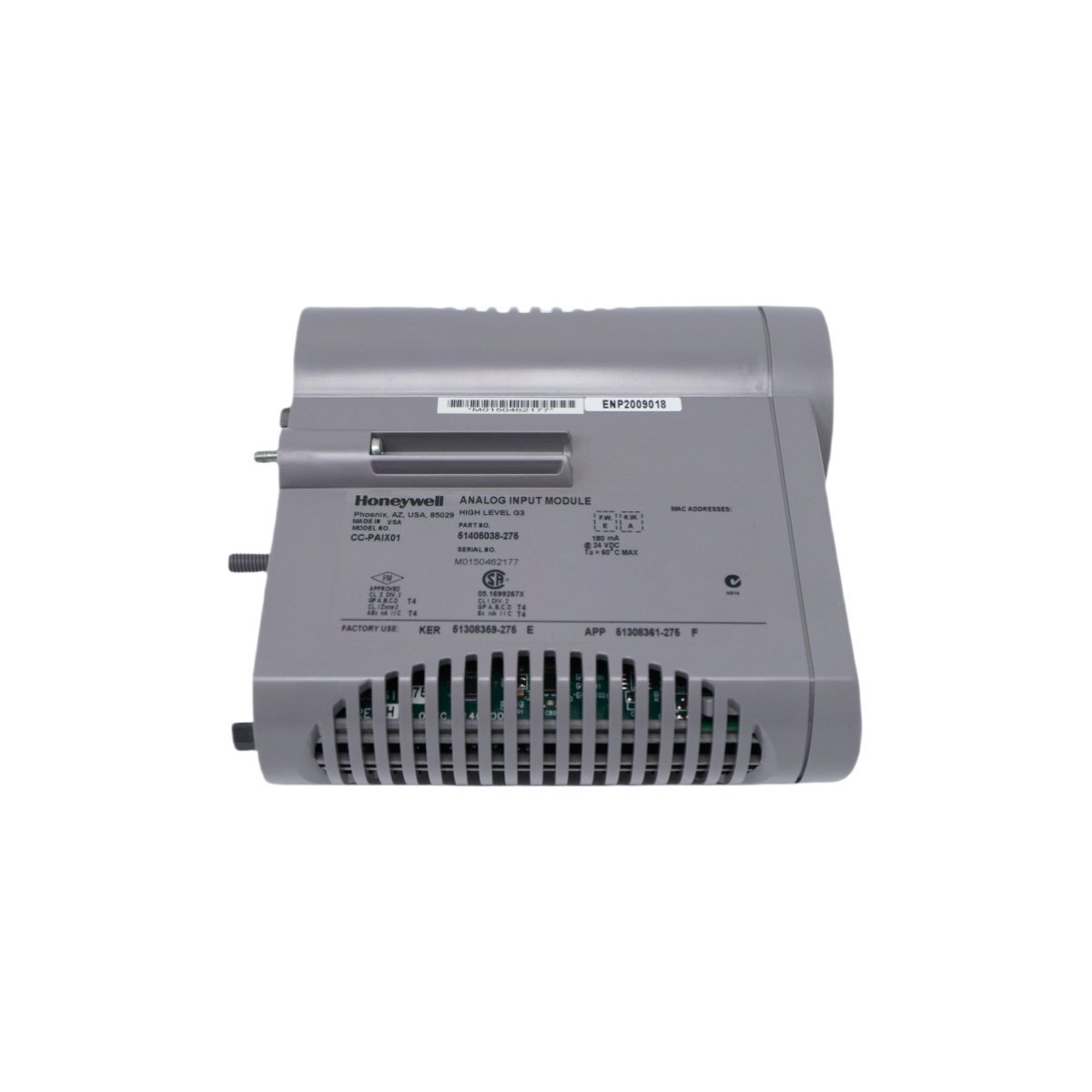

Honeywell CC-PAIX01 51405038-275 Analog Input Module

The Honeywell CC-PAIX01 51405038-275 is a 16-channel, 24-bit analog input module for Experion PKS systems. It features 1500V isolation, HART 7 support, and an extended -40°C to +70°C operating range. This hot-swappable DCS component provides high-accuracy sensor data acquisition for critical industrial processes.

The Honeywell CC-PAIX01, identified by part number 51405038-275, serves as a high-performance data acquisition interface. It functions within the Experion PKS Series C architecture to monitor critical field variables. This module converts various analog signals from sensors into precise digital data for the C300 controller. Specifically, it handles standardized 4-20mA current loops used throughout industrial process environments. The hardware ensures high signal fidelity for mission-critical automation loops.

Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	CC-PAIX01
Part Number	51405038-275
Input Type	Analog Input (AI)
Channel Count	16 Channels
Conversion Resolution	24-bit
Accuracy	±0.1% of Full Scale
Isolation Strength	1500V AC
Temperature Range	-40°C to +70°C
System Platform	Experion PKS DCS

Core Technical Characteristics

High-Resolution Acquisition: The 24-bit analog-to-digital converter provides exceptional detail for precise process monitoring.
Extensive Galvanic Isolation: Robust 1500V isolation protects the internal system logic from field-side electrical interference.
Smart Device Integration: Full support for the HART 7 protocol enables advanced digital diagnostics and instrument configuration.
Redundant Configuration: The module supports redundant wiring pairs to eliminate single points of failure.
Live Serviceability: A hot-swappable design allows technicians to replace units without stopping the active process.
Status Monitoring: Integrated LED indicators on the front panel display real-time health and fault data for each channel.
Environmental Tolerance: The hardware operates reliably in extreme temperatures and high-humidity industrial conditions.

Industrial Applications

Control engineers primarily deploy the CC-PAIX01 in the oil, gas, and petrochemical sectors. It also manages essential data feeds in power generation and chemical processing plants. The module reliably tracks pressure, temperature, and flow transmitters in complex distributed control systems. Furthermore, its ATEX and IECEx certifications permit safe installation in hazardous industrial zones. This component offers a 500,000-hour MTBF, ensuring long-term stability for Industry 4.0 facilities.
