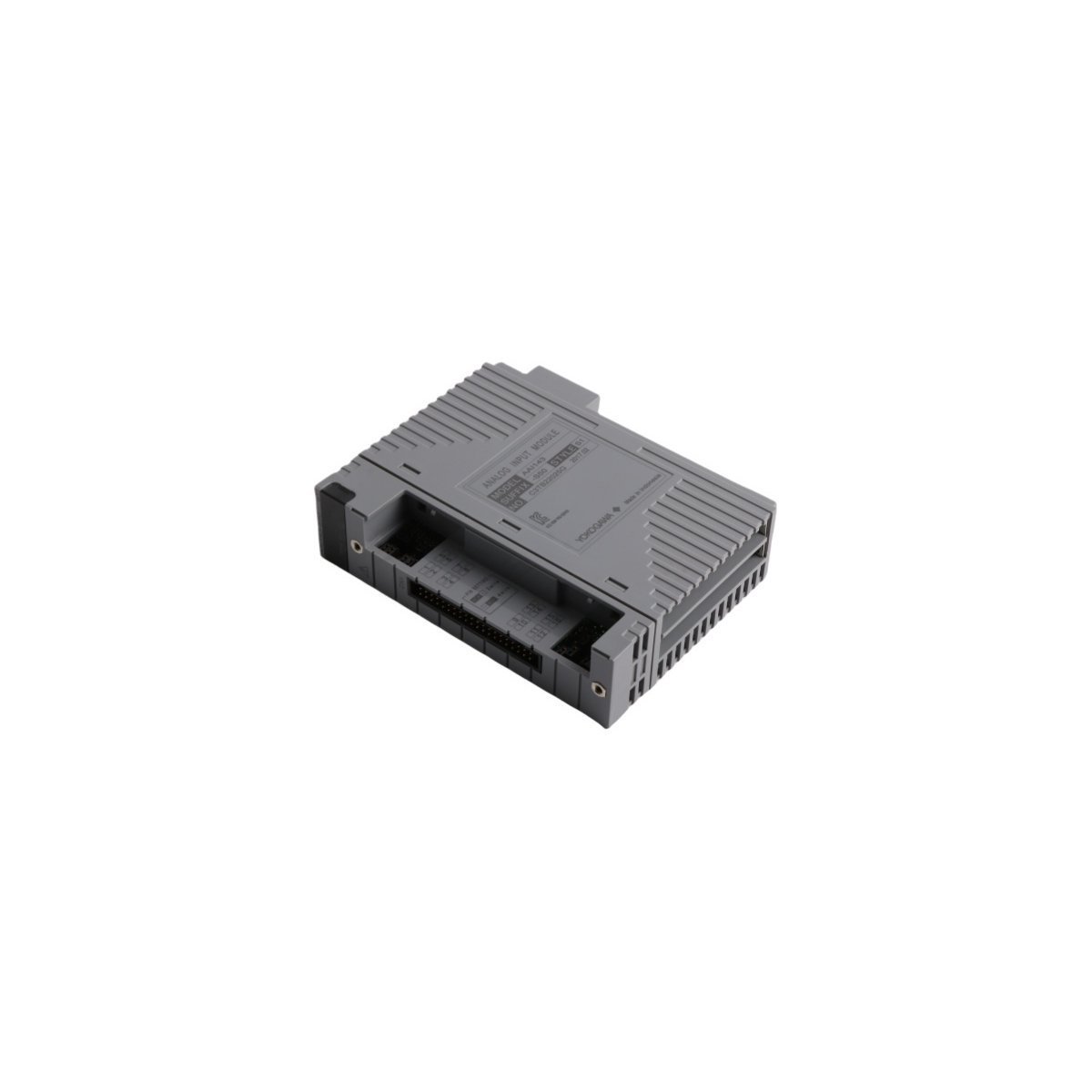

Yokogawa AAI143-S50 S1 Analog Input Module

The Yokogawa AAI143-S50 S1 serves as a high-precision signal acquisition component for the FIO system. This module monitors 16 independent analog channels within a distributed control environment. It effectively converts physical field measurements into digital data for system processing. Because it uses an isolated architecture, the hardware prevents electrical noise from affecting the DCS controller. Consequently, it maintains high signal integrity in complex industrial settings.

Field Applications and Hardware Role

Engineers deploy this module primarily in oil, gas, and chemical processing facilities. It manages standard 4 to 20 mA current signals from various field transmitters. The unit supports critical monitoring of pressure, flow, and temperature variables. Since the S1 version represents a specific hardware revision, it offers enhanced internal diagnostic capabilities. The module ensures reliable data flow between field instruments and the central control logic.

Essential Technical Specifications

The AAI143-S50 S1 combines a compact physical footprint with industrial-grade circuit protection. It provides stable performance across a wide range of environmental conditions.

• Module Function: Isolated Analog Input
• Channel Density: 16 channels
• Input Signal Range: 4 to 20 mA DC
• System Series: Yokogawa FIO / CENTUM VP
• Measurement Accuracy: ±0.1% of full scale
• Isolation Voltage: Withstands up to 1500V AC
• Operating Temperature: -20°C to +60°C
• Module Weight: 0.24 kg
• Physical Dimensions: 3.2 x 10.6 x 13 cm
• Connector Type: Pressure clamp or MIL cable compatibility

Industrial Reliability and Performance

Yokogawa builds this hardware to withstand the thermal stress of continuous operation. The internal circuitry features protection against overcurrent and surge events. Furthermore, the module facilitates rapid troubleshooting through integrated status LEDs. These indicators show the health of each input loop instantly. The rugged housing also meets stringent industrial standards for vibration and shock resistance. This durability ensures a long service life in mission-critical automation infrastructures.
