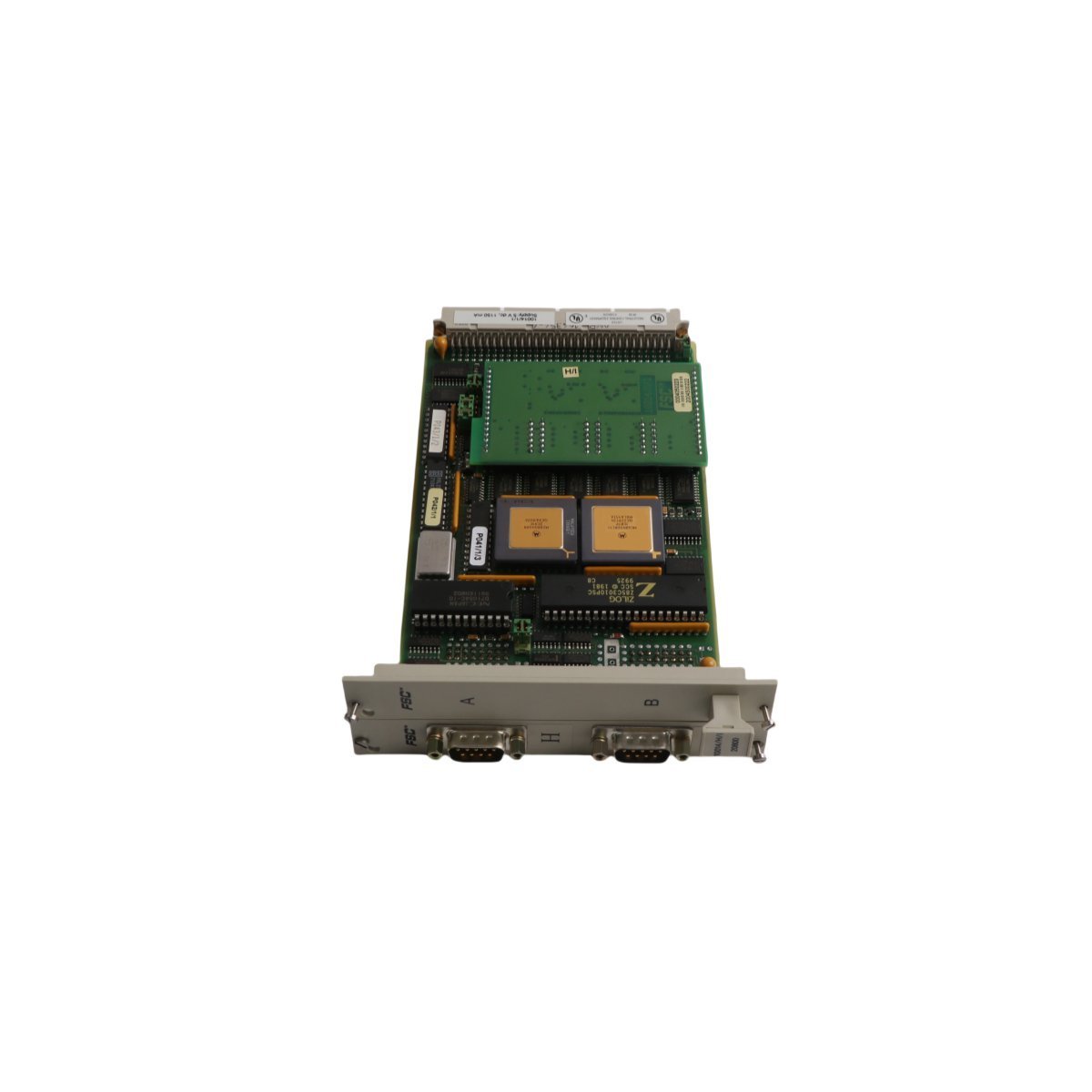

Honeywell 10014/H/I High-Density Communication Module

The Honeywell 10014/H/I is a high-reliability communication module for FSC and Safety Manager systems. Supporting multiple serial protocols and featuring galvanic isolation, this module ensures secure and efficient data exchange between safety controllers and plant-wide supervisory networks.

Request a Quote

Technical Overview

The Honeywell 10014/H/I operates as a high-performance communication interface within the Safety Manager and Fail Safe Control (FSC) systems. This module serves as the primary gateway for data exchange between the safety controller and external networks or supervisory systems. Because the 10014/H/I utilizes a specialized processor for handling protocol conversion, it offloads the communication burden from the main CPU, ensuring that safety-critical logic execution remains uninterrupted. By facilitating seamless connectivity with Distributed Control Systems (DCS), such as Honeywell Experion PKS, this module plays a vital role in integrated plant-wide monitoring.

Connectivity and Protocol Support

The 10014/H/I manages multiple serial communication channels, typically supporting RS232, RS485, or RS422 standards depending on the configuration. To ensure maximum flexibility, the module supports a wide array of industrial protocols, including Modbus RTU (Master/Slave) and Honeywell’s proprietary safety communication links. Furthermore, the unit features high-speed data throughput, which is essential for transmitting real-time diagnostics and event-log data to operator stations. Moreover, since the module supports redundant configurations, it ensures that a single cable fault or port failure does not result in a loss of visibility for the entire safety system.

To further enhance system security, the 10014/H/I incorporates galvanic isolation on all communication ports. This feature effectively protects the internal safety bus from external electrical transients and ground loops. In addition to its communication tasks, the module provides extensive internal diagnostics that monitor the health of the hardware and the integrity of the data stream. Consequently, the controller can immediately identify communication timeouts or parity errors. As a result, the 10014/H/I provides a robust and reliable link that maintains the coordination between process safety functions and plant management systems.

Key Technical Characteristics

  • Brand: Honeywell
  • Model Number: 10014/H/I
  • Product Type: Communication Interface Module
  • System Compatibility: Honeywell FSC / Safety Manager
  • Port Configuration: Multiple Serial Ports (RS232/RS485/RS422)
  • Protocol Support: Modbus RTU, Proprietary Safety Links
  • Isolation: Optically isolated ports for circuit protection
  • Mounting: Standard Honeywell I/O rack or subrack
  • Status Indicators: Front-panel LEDs for TX/RX activity and module status
  • Redundancy: Supports fully redundant communication architectures

Primary Applications

  • Interfacing Honeywell Safety Manager with Experion PKS for integrated control.
  • Providing Modbus communication links for third-party PLC integration.
  • Transmitting safety-critical alarm data to centralized SCADA systems.
  • Managing remote I/O communication over long-distance serial links.
  • Connecting local diagnostic tools for system configuration and troubleshooting.
