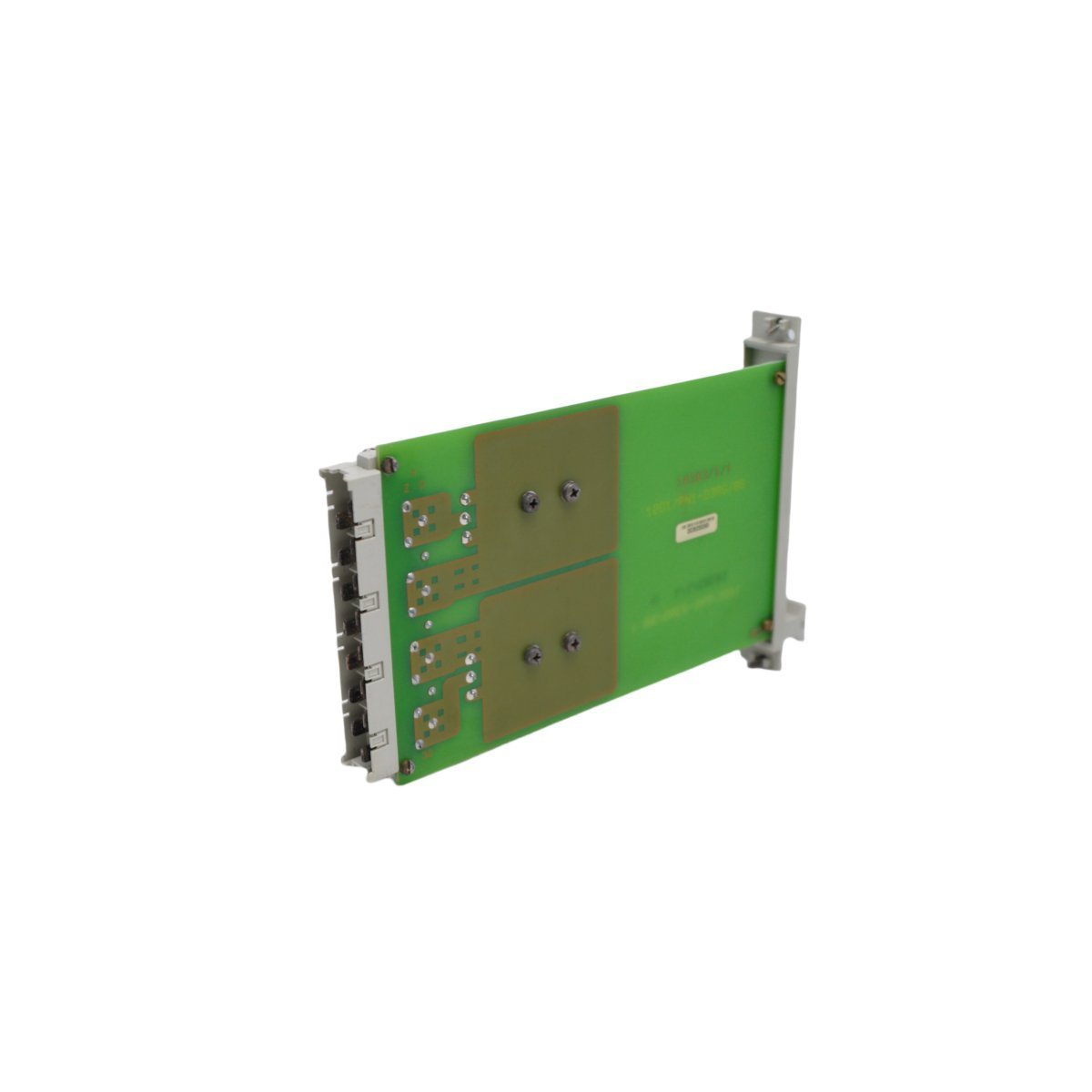

The Honeywell 10303/1/1 is a high-reliability power supply module for the FSC safety system. It delivers regulated energy, features integrated diagnostics, and ensures stable operation for critical emergency shutdown processes.
The Honeywell 10303/1/1 serves as a foundational power regulation component for the Fail Safe Control (FSC) system. This module delivers consistent electrical energy to critical safety logic processors and I/O racks. It converts primary source power into the regulated voltages required for stable digital operations. Because safety systems demand high availability, this unit employs high-grade industrial filtering. It protects sensitive internal circuitry from line noise and voltage spikes. Consequently, the module maintains system integrity during significant electrical fluctuations.
Technical Performance and Diagnostic Depth
Integrated System Monitoring: Built-in diagnostic circuits track output health and internal temperatures in real time.
Seamless Communication: The module uses advanced protocols to report its status to the central CPU.
Environmental Resilience: A ruggedized housing allows the unit to function reliably in high-heat industrial zones.
Rapid Fault Identification: Front-panel indicators help technicians identify power failures without specialized tools.
Low Latency Architecture: Fast response times ensure that power remains stable during high-demand switching cycles.
Efficient Heat Dissipation: The design promotes natural airflow to extend the lifespan of internal capacitors.
Operational Deployment and Compliance
Maintenance teams primarily utilize the 10303/1/1 in high-risk environments like oil refineries and chemical plants. It provides the necessary power for emergency shutdown sequences and fire detection loops. Furthermore, the compact dimensions facilitate easy installation in standard FSC rack configurations. Although the manufacturer officially discontinued the series in late 2018, it remains a vital spare part. Its role in legacy DCS environments ensures that older infrastructure continues to meet safety regulations. Therefore, keeping a verified 10303/1/1 in stock prevents lengthy outages during power hardware failures.
Product Specifications
Feature
Technical Detail
Brand
Honeywell
Model Number
10303/1/1
System Compatibility
FSC (Fail Safe Control)
Hardware Type
Power Supply Module
Module Weight
0.2 kg
Physical Dimensions
2.5 x 12.7 x 20.3 cm
Manufacturing Origin
USA
Lifecycle and Maintenance Integration
The 10303/1/1 simplifies maintenance through its modular plug-and-play architecture. Technicians can replace faulty units quickly to restore safety functions in minutes. Moreover, the unit provides high electrical isolation between input and output stages. This barrier prevents field-side faults from damaging the expensive central processing unit. Its proven track record in the energy sector confirms its long-term reliability. Thus, this power supply module serves as a dependable asset for sustaining legacy automation platforms.
