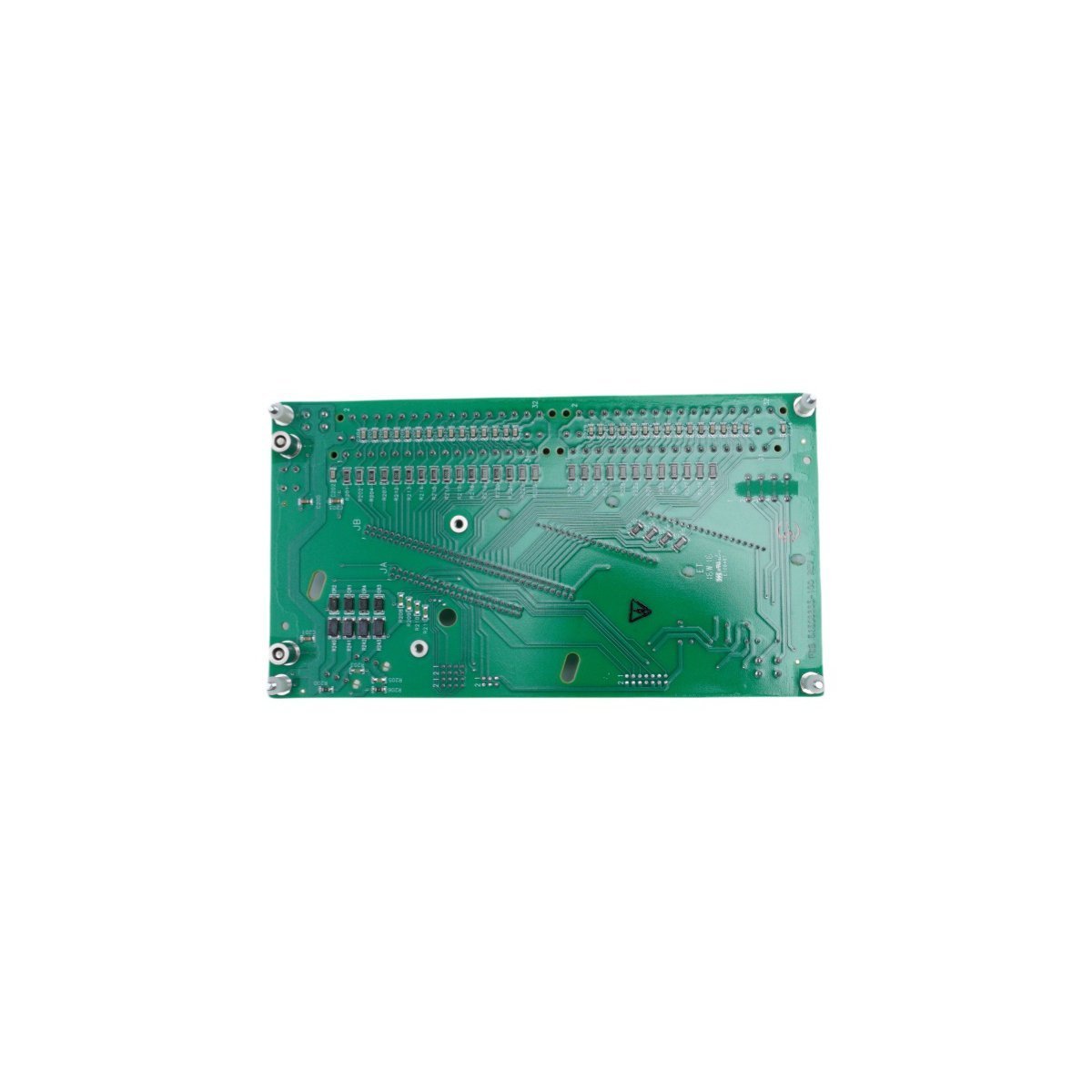

Honeywell 8C-TDIL01 51306856-175 Digital Input Board

The Honeywell 8C-TDIL01 (51306856-175) is a Series 8 Digital Input Board for Experion PKS systems. This module provides high-density discrete monitoring with integrated signal isolation. Its compact, vertical design ensures reliable data acquisition in demanding DCS environments.

The Honeywell 8C-TDIL01, part number 51306856-175, functions as a high-performance discrete signal interface. This module belongs to the Series 8 I/O family within the Experion PKS architecture. It effectively monitors the status of field devices like switches and contacts. Furthermore, the board converts physical state changes into digital data for the controller. This process ensures that the Distributed Control System (DCS) receives real-time operational feedback.

Advanced Signal Processing

This digital input board utilizes sophisticated circuitry to ensure signal clarity. It incorporates galvanic isolation to protect the system from electrical surges. Additionally, the hardware features integrated noise filtering to prevent false triggering. Consequently, the module maintains high data integrity even in electrically noisy environments. The 8C-TDIL01 also supports comprehensive onboard diagnostics for rapid fault detection. These features improve system uptime by simplifying the troubleshooting process.

Design and Industrial Integration

Honeywell engineers designed the Series 8 hardware with a compact, vertical form factor. This orientation maximizes cabinet space efficiency in control rooms. The module attaches directly to its corresponding Input Output Termination Assembly (IOTA). This modular setup facilitates fast installation and easy hardware replacement. Furthermore, the 8C-TDIL01 withstands the mechanical stresses typical of heavy industrial sites. It operates reliably across wide temperature ranges found in manufacturing and energy sectors.
