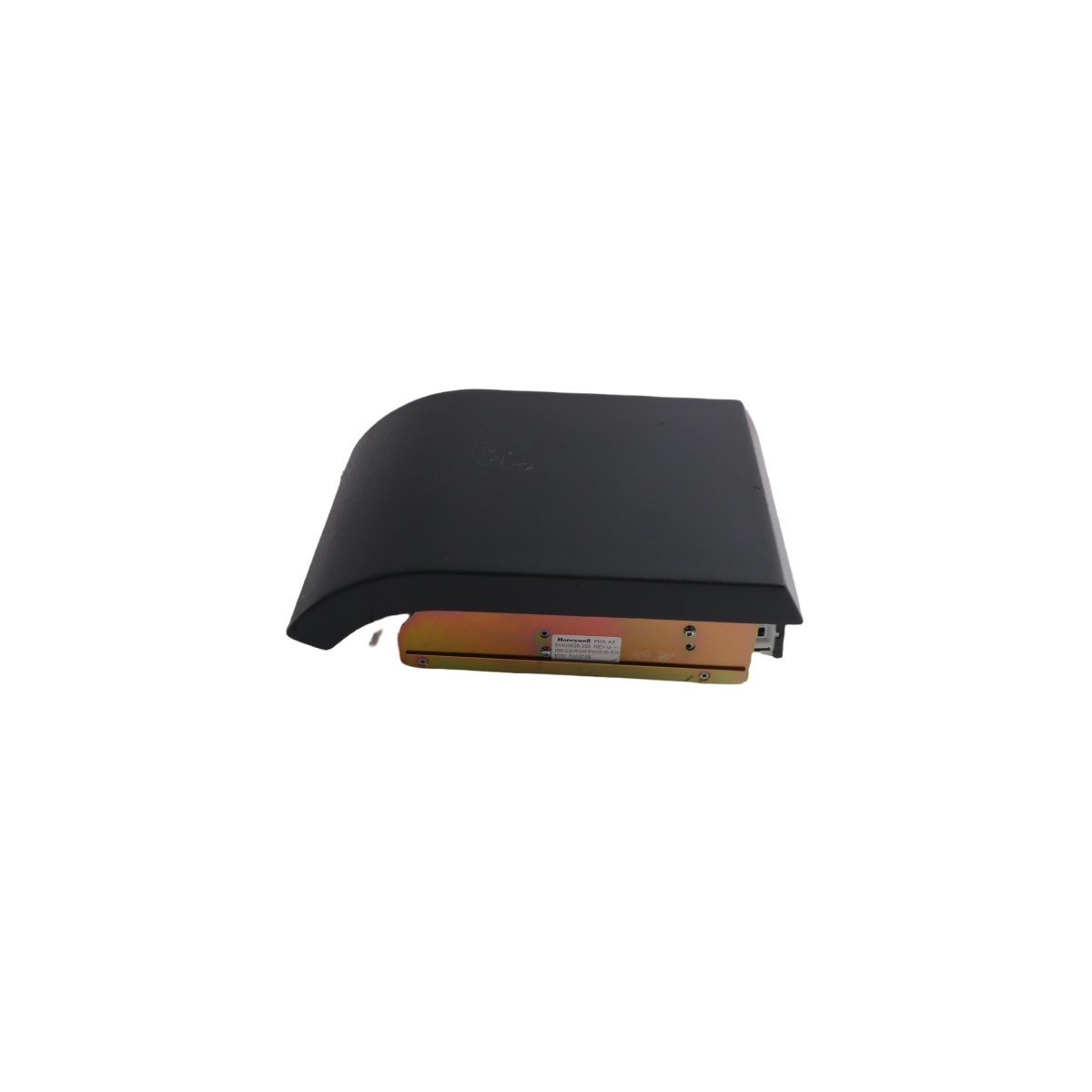

Honeywell 51403626-200 DCS Module

The Honeywell 51403626-200, also cataloged as the 51403626-200 DCS Module, operates as a dedicated hardware component for real-time process monitoring and system backplane interfacing within Experion PKS Series 8 platforms.

Hardware Specifications

Process Loop Integration and HART Protocol Execution

The hardware interface establishes galvanic isolation across discrete channels to prevent ground loop transients from corrupting real-time process variable acquisition. Supporting standard 4-20 mA HART loop protocol architectures, the card processes field instrument telemetry while executing internal cold junction compensation (CJC) algorithms to maintain signal integrity during analog-to-digital processing cycles across the backplane chassis.

Frequently Asked Questions

Q: Does the module support online insertion and removal (hot-swapping)?

A: Insertion under power depends on the specific Series 8 chassis backplane configuration; field wiring terminals must be isolated prior to physical card extraction to prevent transient bus disruptions.

Q: How is thermal dissipation handled within high-density cabinet enclosures?

A: Heat dissipation relies on passive convection airflow through standard cabinet ventilation paths; external forced-air cooling is required if ambient enclosure temperatures exceed 60 deg C.

Field Installation Guidelines

• ESD Protection Protocols: Wear a grounded electrostatic discharge (ESD) wrist strap attached to the chassis ground point prior to removing the card from its antistatic packaging.
• Cabinet Slot Alignment: Ensure the circuit board guides align with the rack slots before applying firm pressure on the insertion levers to seat the edge connectors into the backplane.
• Grounding and Shielding Continuity: Connect all cable drain wires to the dedicated cabinet ground bus bar to maintain electromagnetic shield effectiveness.
