  4. Honeywell 51202330-200 Series 8 RAM Battery Charge Interconnect Cable
Sale!
SKU: 51202330-200

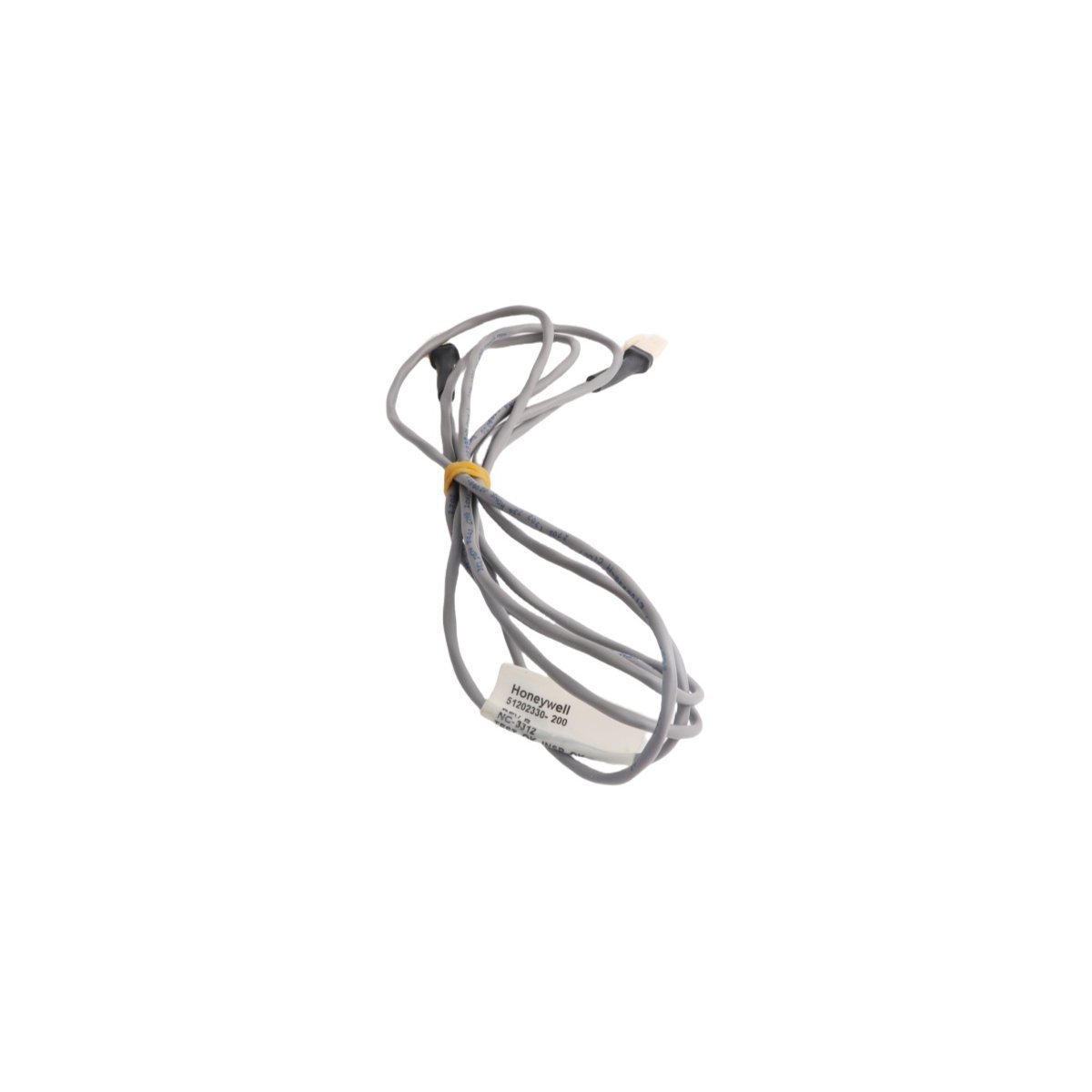

Honeywell 51202330-200 Series 8 RAM Battery Charge Interconnect Cable

The Honeywell 51202330-200 is a dedicated RAM Battery Charge Cable for the Experion PKS Series 8 system. It provides a reliable power link to maintain critical memory backup, ensuring your C300 controller configuration remains secure during power transitions.

Request a Quote

Technical Overview

The Honeywell 51202330-200 functions as a specialized internal power link within the Experion PKS Series 8 hardware architecture. This cable specifically manages the charging circuit for the Battery RAM module, which safeguards critical volatile memory during primary power interruptions. By maintaining a consistent charge from the power supply to the RAM backup system, this component prevents the loss of controller configuration and live process data, ensuring a smooth transition during failover events.

Functional Performance

This interconnect cable facilitates a secure electrical path between the Series 8 power distribution hardware and the memory backup assembly. It incorporates high-grade insulation and precision-engineered connectors to eliminate voltage drops and intermittent contact, which are vital for maintaining the battery’s health. Furthermore, the 51202330-200 features a flexible, low-profile design that allows for efficient cable management within the high-density Series 8 cabinet environment, promoting better airflow and reducing mechanical stress on internal ports.

Key Technical Characteristics

  • Brand: Honeywell
  • Model Number: 51202330-200
  • Product Series: Series 8 I/O / C300
  • Component Category: RAM Battery Charge Cable
  • Origin: USA
  • Weight: 0.06 kg
  • Physical Dimensions: 26 cm x 7 cm x 2 cm
  • Construction: High-conductivity copper with industrial-grade jacketing
  • Compatibility: Optimized for Series 8 DCS and PLC architectures
  • Connectivity: Specialized snap-lock connectors for vibration resistance

Industrial Applications

  • Data Preservation: Maintains the backup power loop for volatile memory in C300 controllers.
  • System Redundancy: Supports the reliable operation of redundant controller pairs in refineries and chemical plants.
  • Automated Manufacturing: Ensures that PLC settings remain intact during seasonal maintenance or unexpected power surges.
  • Critical Infrastructure: Serves as a fundamental link in power generation control systems where data persistence is mandatory.

Operational Advantages

  • Enhances Data Security: The reliable charging path ensures that the RAM battery remains at peak capacity, ready to protect system logic instantly.
  • Simplifies Integration: The standardized length and connector type allow maintenance teams to install the cable quickly without custom modifications.
  • Minimizes Maintenance Costs: Robust material selection prevents corrosion and thermal degradation, significantly extending the service interval of the cabling system.
  • Optimizes Space: Its compact dimensions fit perfectly within standard Series 8 mounting structures, preventing interference with adjacent I/O modules.
