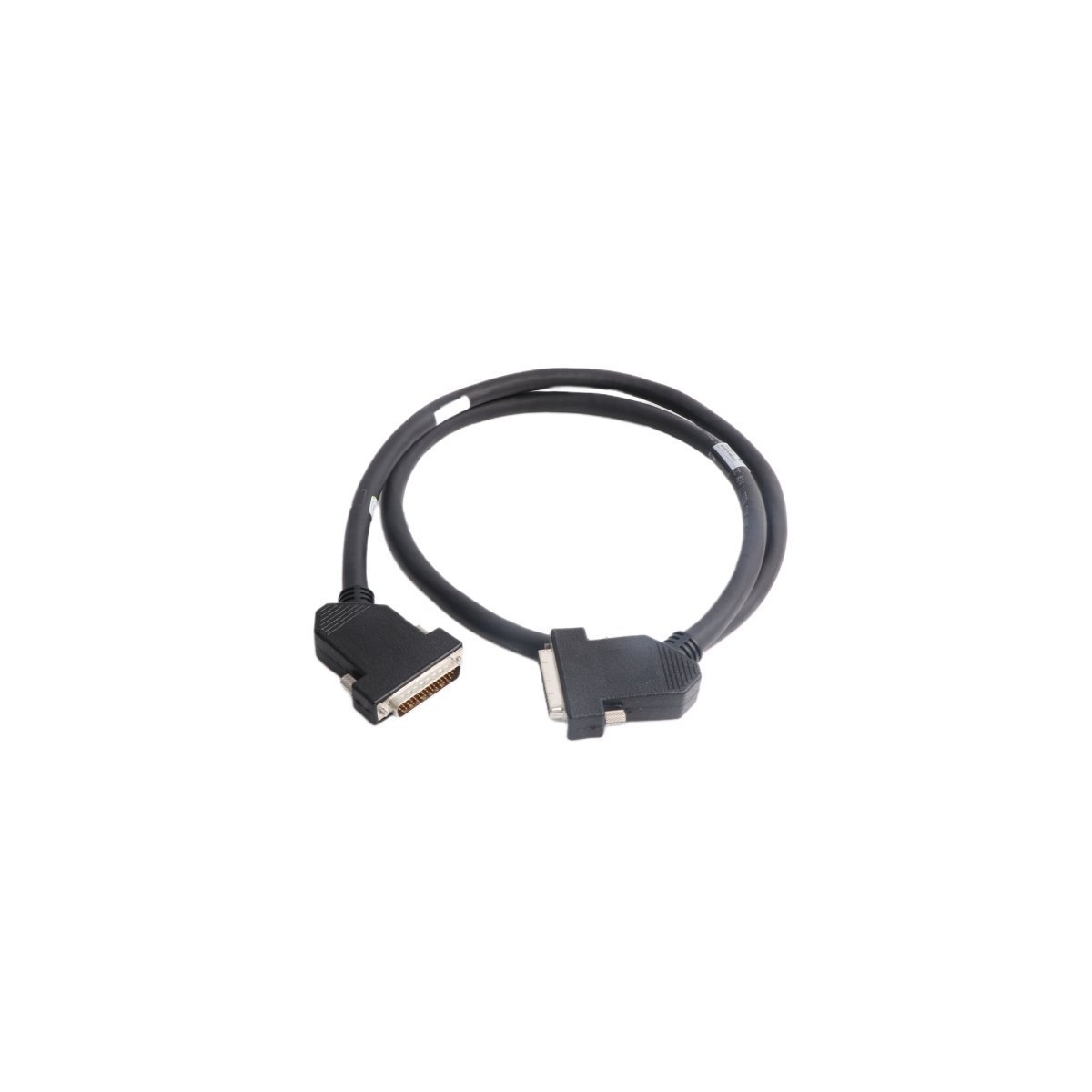

Emerson KJ4002X1-BF2 12P3866X012 DeltaV Bus Extender Cable

Technical Overview

The Emerson KJ4002X1-BF2, identified by part number 12P3866X012, functions as a high-speed Bus Extender Cable within the DeltaV Distributed Control System (DCS). This specialized hardware enables the expansion of the local I/O bus across multiple sub-bases or carriers within a single system node. By facilitating the seamless transfer of data and power between I/O modules, the KJ4002X1-BF2 allows engineers to scale their control architecture without degrading signal integrity or increasing communication latency.

Operational Features and System Architecture

This bus extender cable manages the critical interconnection between localized I/O clusters. Because the DeltaV system relies on a modular “plug-and-play” philosophy, the KJ4002X1-BF2 provides a secure, physical link that maintains the continuity of the redundant bus signals. Furthermore, the cable features high-density, multi-pin connectors that include locking mechanisms to prevent accidental disconnection in high-vibration industrial environments.

To ensure consistent performance, the cable is manufactured with heavy-duty shielding to mitigate the effects of electromagnetic interference (EMI). Since the 12P3866X012 is a factory-terminated assembly, it eliminates the wiring errors often associated with manual terminations. Moreover, the bus extender supports the automatic addressing capabilities of the DeltaV controller, ensuring that any I/O modules connected via the extension are immediately recognized by the system software.

Key Technical Characteristics

• Brand: Emerson (DeltaV)
• Model Number: KJ4002X1-BF2
• Order Code: 12P3866X012
• Product Type: I/O Bus Extender Cable
• System Family: DeltaV Distributed Control System (DCS)
• Connector Type: High-density locking interface
• Configuration: Standard Bus Extension
• Operational Environment: Industrial Control Cabinet
• Installation: Plug-and-Play between I/O carriers
• Durability: Industrial-grade shielding and insulation

Primary Applications

• Linking multiple DeltaV I/O carriers within a single control cabinet.
• Extending the local I/O bus to adjacent racks in medium-to-large DCS installations.
• Facilitating the addition of new I/O modules to existing DeltaV nodes.
• Managing signal distribution in chemical refineries and power generation plants.
• Maintaining redundant bus communication in high-availability process control systems.
