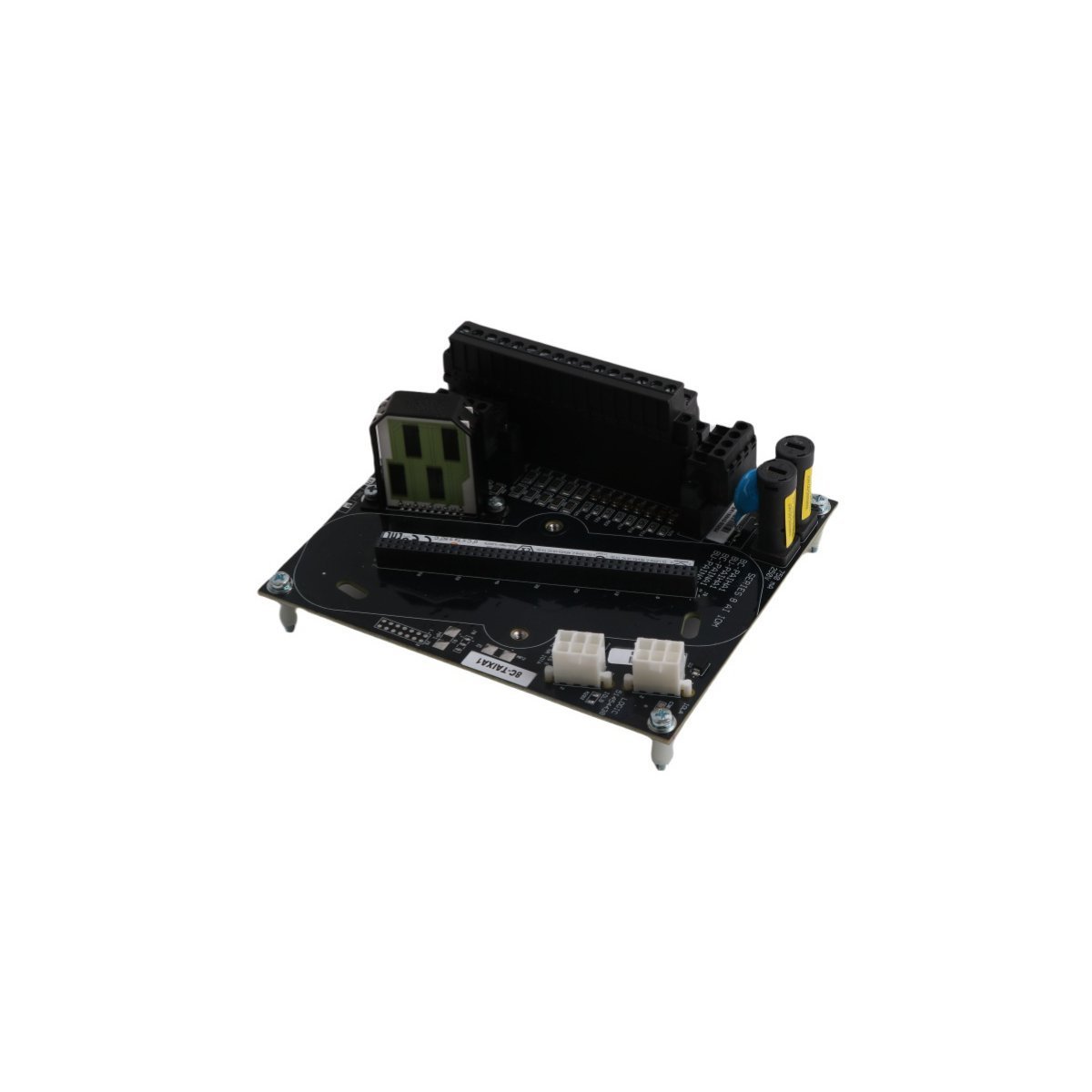

Honeywell 8C-TAIXA1 51307127-175 Analog Input Module

Technical Overview

The Honeywell 8C-TAIXA1, associated with part number 51307127-175, serves as a high-performance Analog Input Module within the Series 8 I/O family for the Experion PKS (Process Knowledge System). This module functions as a critical bridge, allowing the C300 controller to interpret analog signals from field-mounted transmitters. Because the Series 8 hardware utilizes a vertical, compact design, the 8C-TAIXA1 optimizes cabinet space while delivering high-speed data acquisition. By accurately converting physical process variables into digital data, this module ensures the control system maintains precise oversight of plant operations.

Signal Processing and Diagnostic Intelligence

The 8C-TAIXA1 manages 16 independent analog input channels, typically supporting the standard 4-20 mA current loop range. To ensure superior accuracy, the module employs high-resolution analog-to-digital converters (ADCs) that filter out electrical noise and signal interference. Furthermore, since the 8C-TAIXA1 is a “differential” input module, it offers enhanced common-mode rejection, which is vital for long-distance field wiring where ground potential differences may exist.

To further maximize system availability, the module incorporates comprehensive HART (Highway Addressable Remote Transducer) support. This allows the 8C-TAIXA1 to pass secondary variable data and diagnostic information from smart transmitters directly to the asset management software. Consequently, maintenance teams can identify sensor drift or hardware failures before they impact production. In addition to these digital features, the module supports redundant configurations. If the primary input card fails, the system automatically switches to the secondary unit without data loss. As a result, the 8C-TAIXA1 provides a resilient solution for monitoring pressure, temperature, and flow in high-availability industrial environments.

Key Technical Characteristics

• Brand: Honeywell
• Model Number: 8C-TAIXA1
• Part Number: 51307127-175
• Series: Series 8 I/O
• Module Type: Analog Input (AI)
• Input Channels: 16 Channels
• Signal Type: 4-20 mA / HART
• Architecture: Differential Input
• Mounting: Vertical I/O Module (IOH)
• Redundancy: Supported via redundant I/O pairs

Primary Applications

• Monitoring pressure and temperature transmitters in chemical processing units.
• Interfacing with flow meters for precise liquid and gas measurement.
• Capturing level sensor data from storage tanks in oil and gas refineries.
• Integrating smart field devices through HART pass-through communication.
• Providing high-density analog monitoring for power plant boiler systems.
